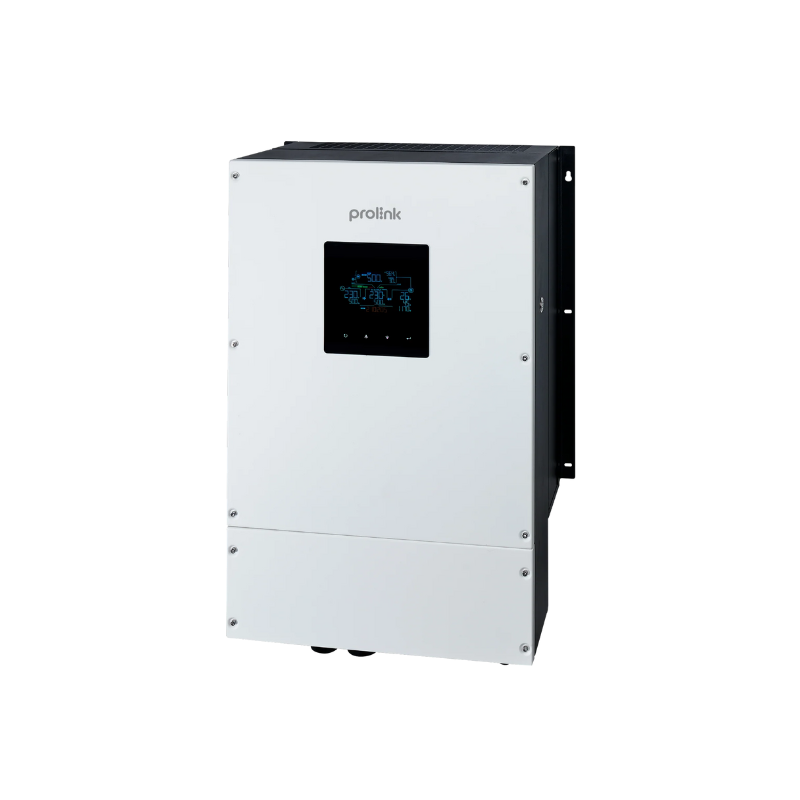

Prolink Haus WP Twin 8KM-48
Key Features
- Pure sine wave solar inverter
- Built-in Wi-Fi for mobile monitoring
- Battery independent design
- USB on-the-go function
- Replaceable fan design
Description
Haus WP Twin is an off grid (hybrid) inverter that converts solar energy from solar panels into pure sine Wave output and provides power supply for both residential and commercial applications.
• Pure sine wave solar inverter
• Output power factor 1.0
• IP65 waterproof and dustproof makes the inverter available for various working conditions
• Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
• Built-in BMS communication for Lithium-ion Batteries
• Replaceable fan design for ease of maintenance
• Battery independent design
• Configurable AC/PV output usage timer and prioritization
• Selectable high power charging current
• Selectable input voltage range for home appliances and personal computers
• Compatible to Utility Mains or generator input
• Parallel operation up to 6 units
Features
 |
Pure sine wave solar inverter |
|---|---|
 |
LCD dsiplay |
 |
Battery independent design |
 |
IP65 rating |
Output Power Factor 1.0
Pure Sine Wave Output
Provides clean and consistent pure sine wave power that improves equipment’s performance and efficiency.
Mobile Monitoring
Enjoy the convenience of monitoring the inverter’s data from mobile app anytime and anywhere than physically checking your inverter screen all the time.
Selectable Input Voltage Range
Two selection modes with narrow input voltage range, suitable for sensitive appliances such as personal computers, and wide input range that can sufficiently support general home appliances.
IP65 Rating
Suitable for harsh outdoor application environments as it protects against dust, rain, and sunray.
Intelligent Battery Features
 |
Built-In BMS CommunicationProvides advanced monitoring and management to lithium-ion battery in the prevention of overcharging and protection against under-voltage and high temperatures of short circuits. |
|---|---|
 |
Battery Independent DesignBattery connection is not compulsory as power from grid or solar source can be supply directly to the load. |
 |
Selectable High Charging PowerBattery charging current are adjustable to suit various battery capacities. |
Specifications
| Rated Power | 8000VA/ 8000W |
|---|---|
| Input Nominal Voltage | 230VAC |
| Input Voltage Range |
170 – 280VAC (For personal computers) 90 – 280VAC (For home appliances) |
| Input Frequency Range | 50/60Hz (Auto sensing) |
| Output Voltage |
230VAC ± 10% |
| Output Surge Power | 16000VA |
| Output Efficiency (Peak) | 90% – 93% |
| Output Transfer Time |
15ms (For personal computers) 20ms (For home appliances) |
| Battery Voltage | 48VDC |
| Floating Charge Voltage For Battery | 54VDC |
| Overcharge Protection For Battery | 66VDC |
| Maximum PV Array Power | 8000W (4000W x 2) |
| Max. PV Array Open Circuit Voltage For Solar Charger | 500VDC |
| Solar Charger Type | MPPT |
| Max. Solar Charge Current |
150A |
| Max. AC Charge Current | 120A |
| Max. Charge Current | 120A |
Physical
| Dimension, D x W x H (mm) | 200 x 435 x 665 |
|---|---|
| Net Weight (kgs) | 33kg |
| Communication Interface | USB / RS232 / RS485 / Dry-contact / WiFi |
Environment
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
|---|---|
| Operating Temperature | -10°C to 50°C |
| Storage Temperature |
-15°C to 60°C |
