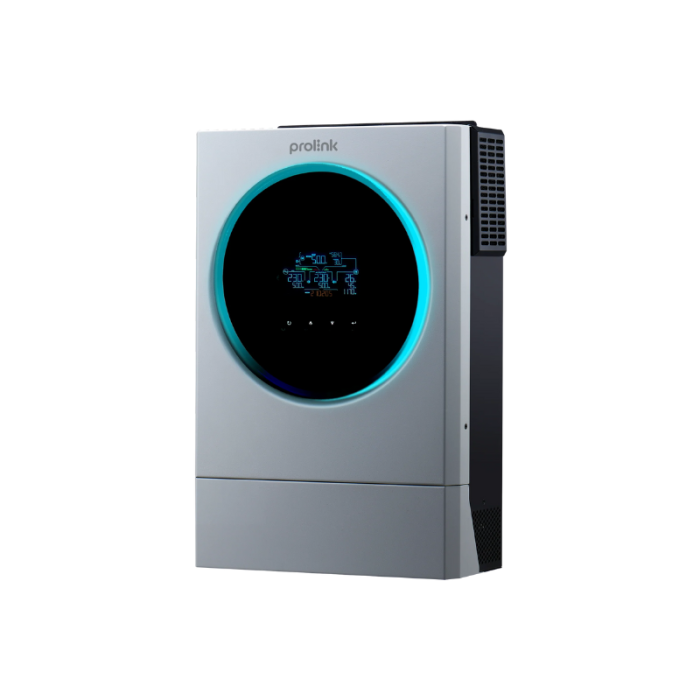

Prolink Haus MPPT IV Series – 3.6KVA to 6KVA
Key Features
- Pure sine wave solar inverter
- Built-in Wi-Fi for mobile monitoring
- Battery independent design
- USB On-the-Go function
- Customizable status LED ring
Description
Haus MPPT IV Series is an off-grid (hybrid) inverter that converts solar energy from solar panels into pure sine wave output and provides power supply for both residential and commercial applications.
• Pure sine wave solar inverter
• Output power factor 1.0
• Customizable status LED ring with RGB lights
• Touchable button with 4.3″ colored LCD
• Wide DC input range
• Supports USB On-the-Go function
• Data log events stored in the inverter
• Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
• Built-in BMS communication for Lithium-ion Batteries
• Battery independent function
• Parallel operation with up to 9 units
Features
 |
Pure sine wave solar inverter |
|---|---|
 |
4.3″ LCD display |
 |
Wide DC input range |
Output Power Factor 1.0
 |
USB On-The-Go FunctionAllows for updating firmware on the inverter, and downloading of history and events for analysis on the USB drive. |
|---|---|
 |
Enhanced Charging PowerEnable safe, efficient and fast (up to 120A) unattended charging of a battery from a mains power source or generator |
 |
Built-In Anti-Dust KitHelps to filter dust sucked in by the cooling fan and allows for easy regular maintenance so that the inverter can perform at optimum efficiency in a harsh environment. |
Pure Sine Wave Output
Provides clean and consistent pure sine wave power that improves equipment’s performance and efficiency.
Mobile Monitoring
Enjoy the convenience of monitoring the inverter’s data from mobile app anytime and anywhere than physically checking your inverter screen all the time.
Selectable Input Voltage Range
Two selection modes with narrow input voltage range, suitable for sensitive appliances such as personal computers, and wide input range that can sufficiently support general home appliances.
Touchable Button With 4.3″ Coloured LCD Display
Useful information such as output voltage and power conditions are shown at a glance through with the LCD display.
Customizable Status LED Ring
Programmable RGB lighting and effects for different operation mode.
Intelligent Battery Features
 |
Built-In BMS CommunicationProvides advanced monitoring and management to lithium-ion battery in the prevention of overcharging and protection against under-voltage and high temperatures of short circuits. |
|---|---|
 |
Battery Independent DesignBattery connection is not compulsory as power from grid or solar source can be supply directly to the load. |
Specifications
| Rated power |
|
|---|---|
| Input nominal voltage | 230VAC |
| Input voltage range |
170 – 280VAC (For personal computers) 90 – 280VAC (For home appliances) |
| Input frequency range | 50/60Hz (Auto sensing) |
| Output voltage |
230VAC ± 5% |
| Output surge power |
|
| Output efficiency (peak) | 93% |
| Output transfer time |
15ms (For personal computers) 20ms (For home appliances) |
| Battery voltage | 48 VDC |
| Floating charge voltage for battery | 54 VDC |
| Overcharge protection for battery |
66VDC |
| Maximum PV array power |
|
| Max. PV array open circuit voltage for solar charger |
|
| Solar charger type | MPPT |
| Max. solar charge current |
|
| Max. AC charge current |
|
Physical
| Dimension, D x W x H (mm) | 140mm (D) x 295mm (W) x 468mm (H) |
|---|---|
| Net Weight (kgs) |
Haus IV 3.6KM-48: 11.0 Haus IV 5.6KM-48: 12.0 Haus IV 6KM-48: 12.0 |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
Environment
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
|---|---|
| Operating Temperature | -10°C to 50°C |
| Storage Temperature |
-15°C to 60°C |
