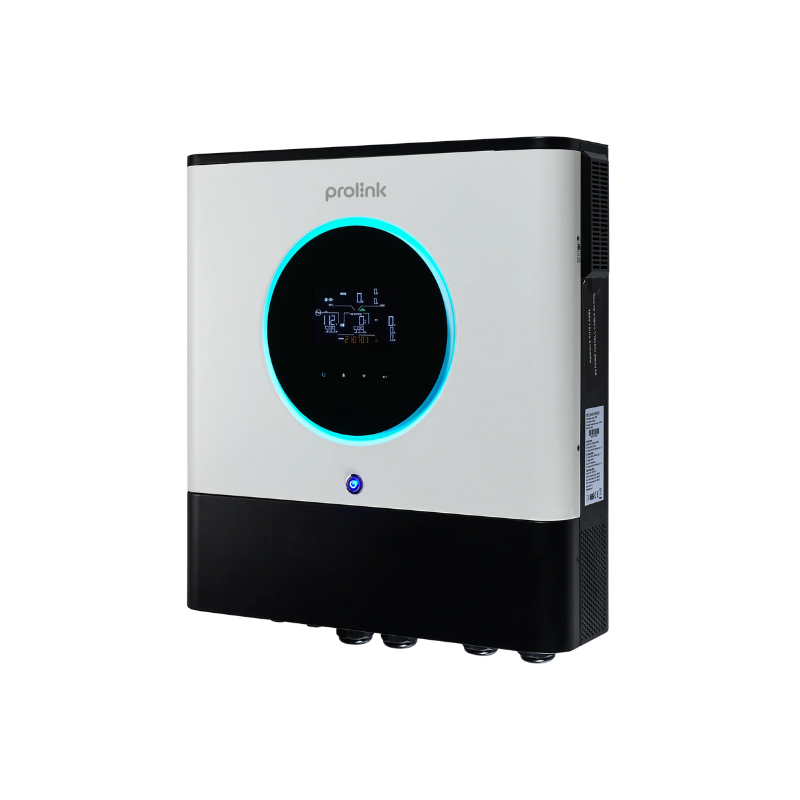

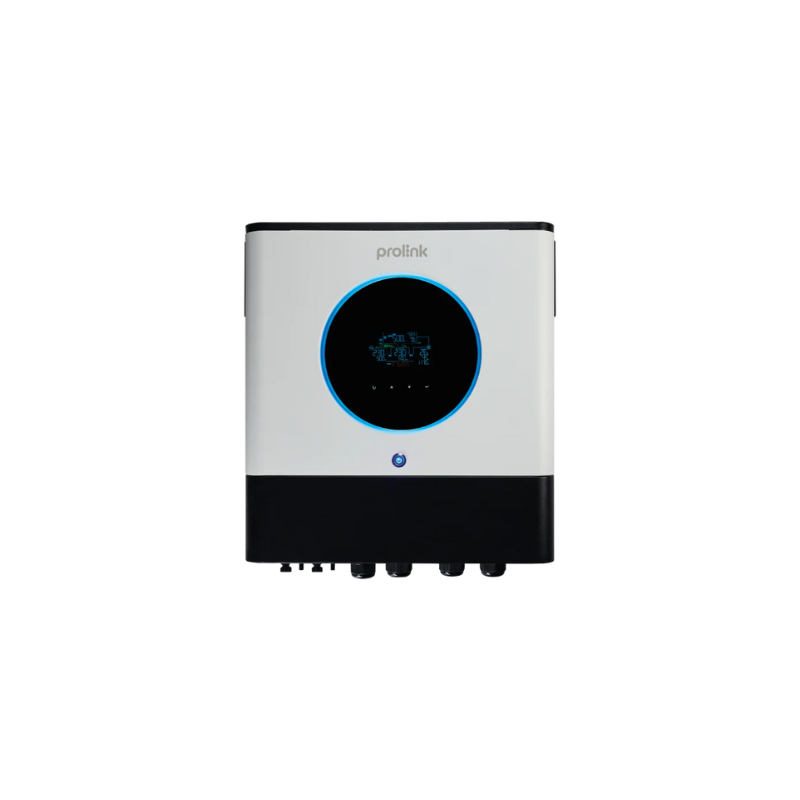

Prolink Haus Max II 8KM-48
Key Features
- Pure sine wave output
- Output power factor 1.0
- BMS communication
- Scalable system (parallel configuration)
- Residential & commercial usage
Description
Haus Max II is an Off-grid (Hybrid) Inverter that is designed to manage and convert solar energy from solar panels into AC output, and can be easily expanded through parallel configuration to meet your energy needs. Suitable for both residential and commercial applications.
• Pure sine wave solar Inverter
• Output power factor 1.0
• Customizable status LED bar with RGB lights
• Touchable button with large 5″ colored LCD
• Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
• Supports USB On-the-Go function
• Data log events stored in the inverter
• Built-in BMS communication for Lithium-ion Batteries
• Replaceable fan design for ease of maintenance
• Battery independent design
• Configurable AC/PV output usage timer and prioritization
• Selectable high power charging current
• Compatible to Utility Mains or generator input
• Built-in anti-dust kit
• Built-in DC output for DC fan, LED bulb, router and so on
• Parallel operation with 6 units
Features
 |
Selectable input power range |
|---|---|
 |
4.3″ LCD display |
 |
Battery independent design |
 |
Dual-AC Input |
 |
Built-in Wi-Fi for mobile monitoring |
 |
USB on-the-go function |
Output Power Factor 1.0
 |
USB On-The-Go FunctionAllows for updating firmware on the inverter, and downloading of history and events for analysis on the USB drive. |
|---|---|
 |
Enhanced Charging PowerEnable safe, efficient and fast (up to 120A) unattended charging of a battery from a mains power source or generator |
 |
Built-In Anti-Dust KitHelps to filter dust sucked in by the cooling fan and allows for easy regular maintenance so that the inverter can perform at optimum efficiency in a harsh environment. |

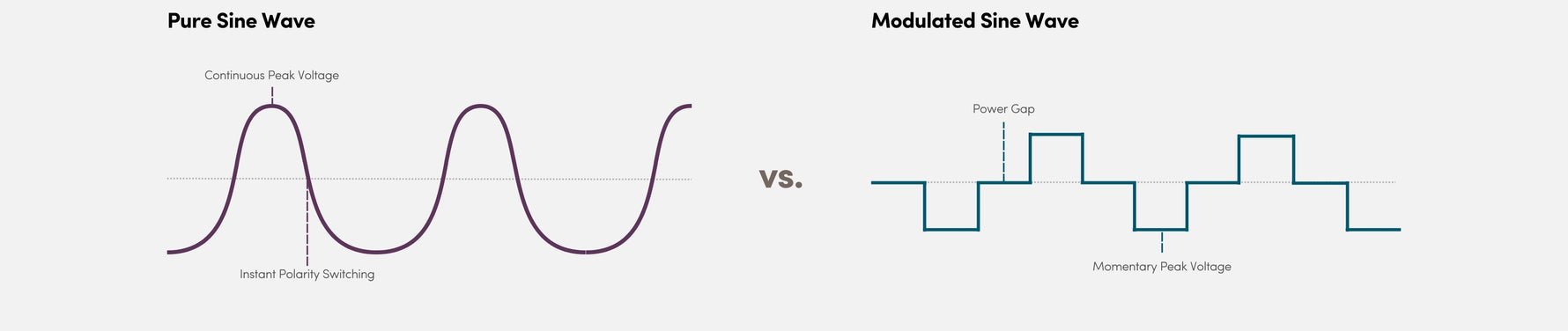

Pure Sine Wave Output
- Provides clean, smooth and consistent output (as compared to a Modified Sine Wave which produces a stepped approximation, resulting in a choppier and less stable output waveform) for all connected equipments such as desktop computer, sensitive lab equipments, data center servers.
- Improves equipment’s performance and efficiency.
Mobile Monitoring
Mobile monitoring for solar inverters provides real-time data and control over solar power systems from a smartphone or tablet. By monitoring performance metrics, users can also identify inefficiencies or potential problems early, enabling prompt maintenance and adjustments to maximize energy output, and saving unnecessary costly repairs and system downtime.
Key Advantages of Parallel Inverters
1. Increased Power Output
2. Optimized Space & Performance
3. Easy and Flexible Scalability
4. Increased Safety
LCD Display
Touchable button with 5″ coloured LCD display. Key information at a glance.
Customizable Status LED Bar
Programmable RGB lighting and effects for different operation modes.
Intelligent Battery Features
 |
Built-In BMS CommunicationProvides advanced monitoring and management to lithium-ion battery in the prevention of overcharging and protection against under-voltage and high temperatures of short circuits. |
|---|---|
 |
Battery Independent DesignBattery connection is not compulsory as power from grid or solar source can be supply directly to the load. |
Specifications
| Rated power | 8000VA/ 8000W |
|---|---|
| Input nominal voltage | 230VAC |
| Input voltage range |
170 – 280VAC (For personal computers) 90 – 280VAC (For home appliances) |
| Input frequency range | 50/60Hz (Auto sensing) |
| Output voltage |
230VAC ± 10% |
| Output surge power | 16000VA |
| Output efficiency (peak) | 93% |
| Output transfer time |
15ms (For personal computers) 20ms (For home appliances) |
| Battery voltage | 48 VDC |
| Floating charge voltage for battery | 54 VDC |
| Overcharge protection for battery |
66VDC |
| Maximum PV array power | 8000W (4000W x 2)) |
| Max. PV array open circuit voltage for solar charger | 500VDC |
| Solar charger type | MPPT |
| Max. solar charge current |
150A |
| Max. AC charge current | 120A |
| Max. charge current | 150A |
Physical
| Dimension, D x W x H (mm) | 158.4 x 503.6 x 530.8 |
|---|---|
| Net Weight (kgs) | 20 |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
Environment
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
|---|---|
| Operating Temperature | -10°C to 50°C |
| Storage Temperature |
-15°C to 60°C |
