Xilica – Gio USB
Bring everything onto the network
Description
Everything’s better connected.
Networked AV allows you to leverage standard network infrastructure to route audio and video signals across your facility. Bringing ease, flexibility and the ability to scale, networked AV is the backbone of superior user experiences with centralized monitoring and management. Xilica’s Gio Series bridges the gap between consumer peripherals, computers and analog audio equipment, allowing networked AV to be end-to-end.

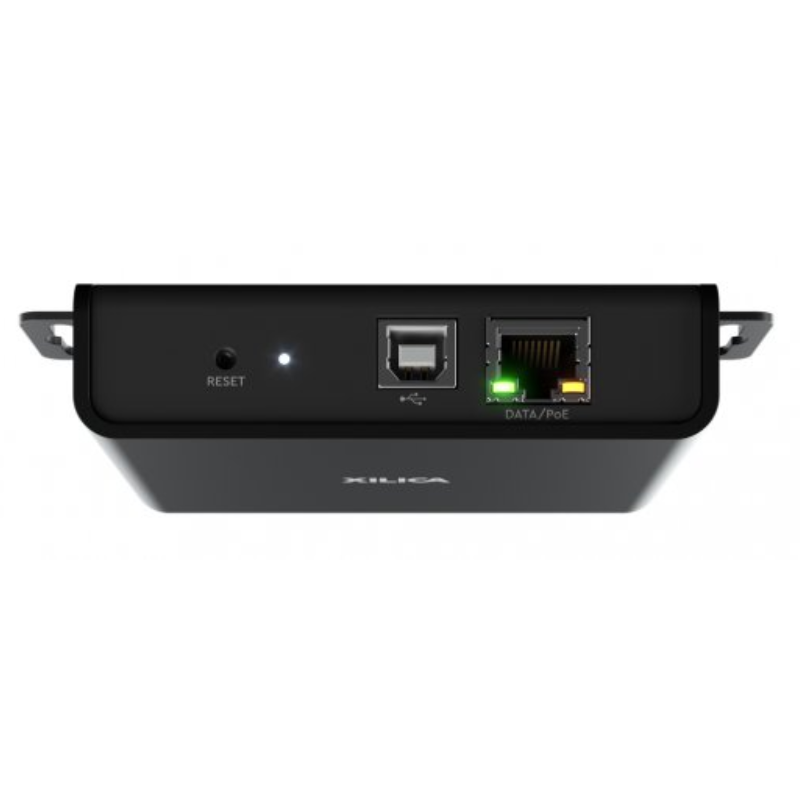

Gio USB
Blend the flexibility of BYOM with the quality of an installed room system. Gio USB is a surface-mount USB-to-Dante endpoint, designed to bridge the gap between IT and AV by bringing laptops and UC appliances onto the installed network. Gio USB enables easy networked processing topographies in multi-room deployments that dramatically reduce processing cost in large installations.
Supporting hybrid work and BYOM, Gio USB offers driverless compatibility with leading soft-codec platforms, including two-way volume and mute sync for Microsoft Teams, allowing control of audio over HID and eliminating dedicated in-room audio controls. Easy to install with a single CatX cable and PoE to IEEE 802.3af, Gio USB mounts discreetly for flexible positioning near the room PC or conference table.
Key Features
- USB-to-Dante endpoint : designed to transmit audio back-and-forth over an installed IT network.

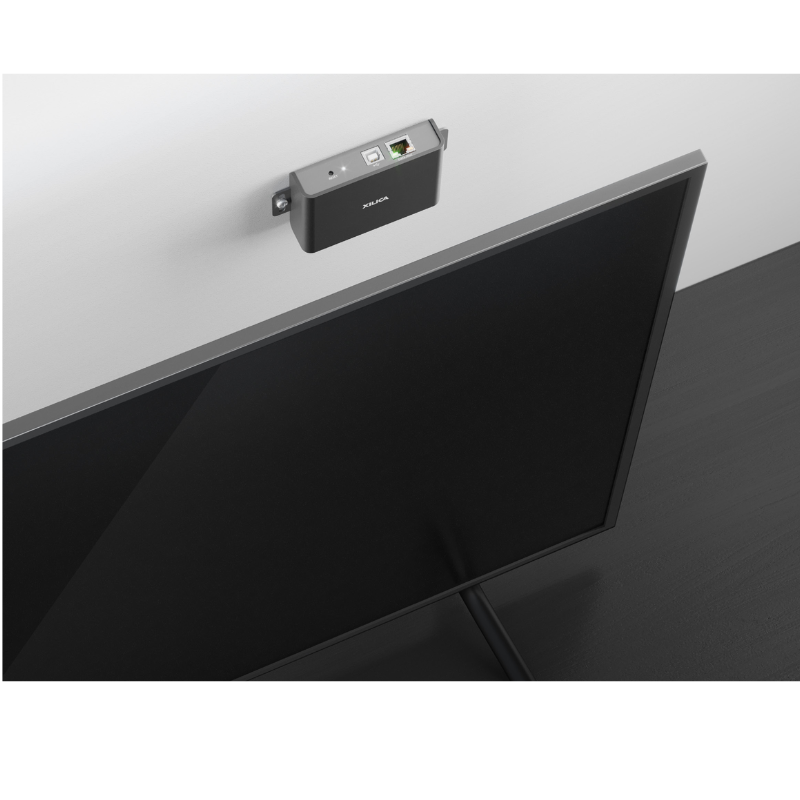

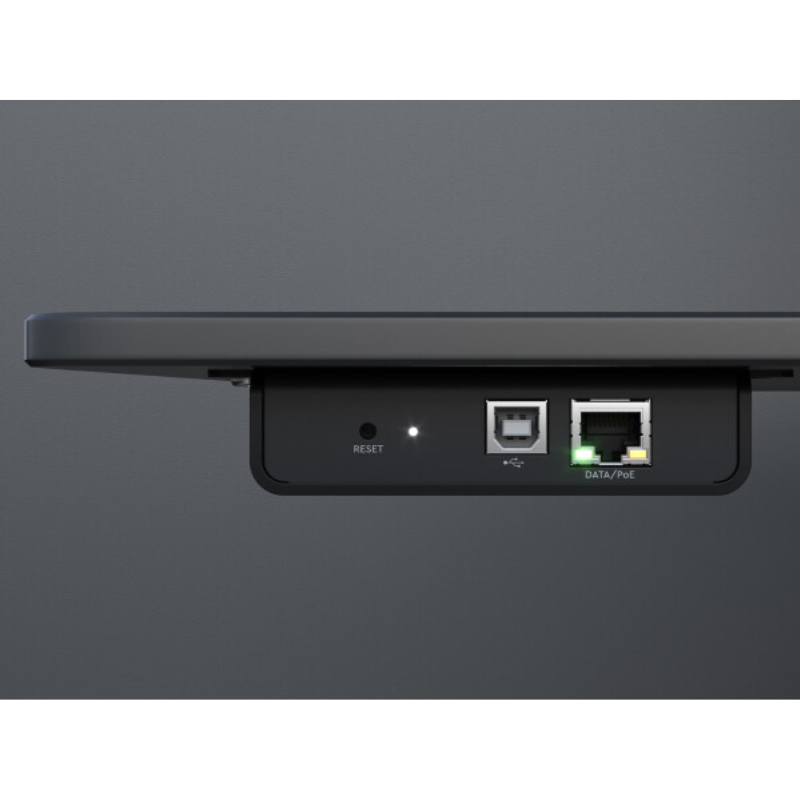

- Installs under the table or behind a display with small format, integrated mounting.
- Compatible with all UC platforms, including device status sync for Microsoft Teams.
Benefits of Gio USB
-
Locate USB connections where your device is, enabling hybrid working and BYOM for employee peripherals such as laptops, or fewer cables from in-room PCs.
-
Centralize your processing stack by transporting audio between room and datacenter over the network, splitting cost across multiple rooms for significant savings.
-
Extend the distance limitations of traditional USB cables with easy-to-install CatX cable.
Specification :
-
Power-over-Ethernet
IEEE 802.3af, Class 0
-
Power Consumption
5W maximum
-
Operating Temperature
32-104⁰F (0-40⁰C)
-
Ethernet
(1) RJ45 with Link and Speed indicators
-
Audio Networking
Dante™ with AES67 compliance
-
USB
Type B
USB 2.0 driverless connection to Windows and OS X devices
Up to 2×2 USB audio channels
48 kHz sample rate, 24-bit depth -
Controls, Service & Indicators
LED indication for Power and Status
Momentary tactile button for network discovery and reset
