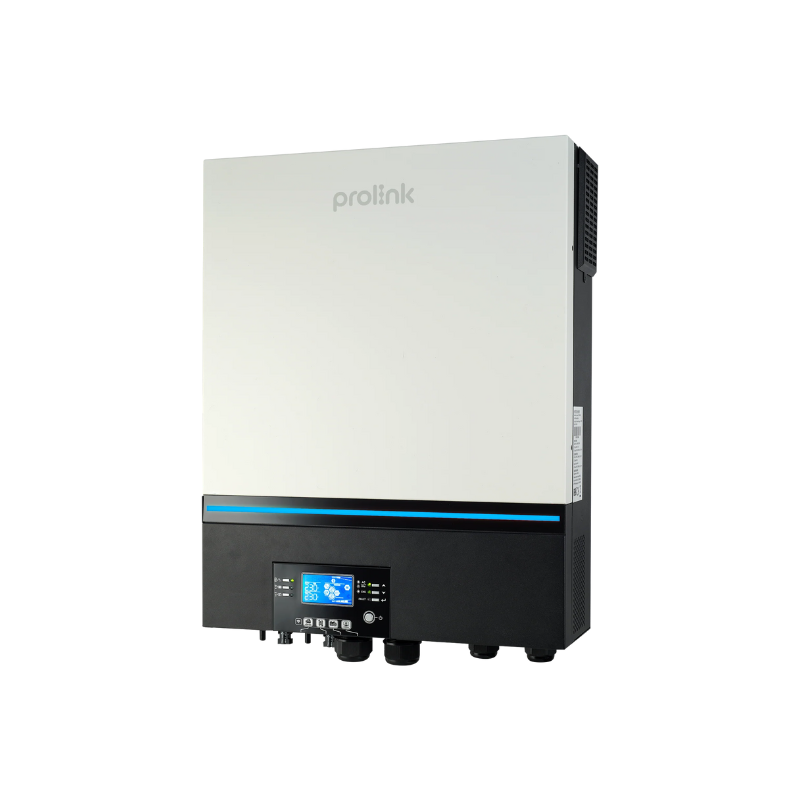

Prolink Haus Max Series – 3.6KVA to 11KVA – Integrasi Multimedia Indonesia

Description

Haus Max Series is an off-grid (hybrid) inverter that converts solar energy from solar panels into pure sine wave output and provides power supply for both residential and commercial applications.

• Pure sine wave solar Inverter
• Output power factor 1.0
• Customizable status LED bar with RGB lights
• Built-in wifi for mobile monitoring (Android/iOS Apps are available)
• Supports USB On-the-Go function
• Built-in BMS communication for Lithium-ion Batteries
• Replaceable fan design for ease of maintenance
• Battery independent design
• Configurable AC/PV output usage timer and prioritization
• Selectable high power charging current
• Selectable input voltage range for home appliances and personal computers
• Compatible to Utility Mains or generator input
• Built-in anti-dust kit
• Optional DC output for DC fan, LED bulb, router and so on
• Parallel operation up to 6 units only available for 7.2kVA

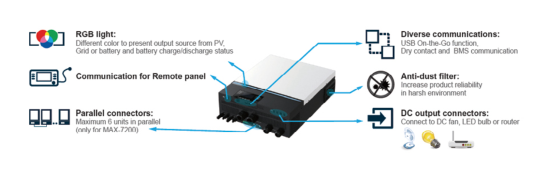

Max 7.2KW 48V 230V off Grid Solar Hybrid Inverter with MPPT 80A Built in WiFi Hybrid Solar Inverter 8kw

Features

Haus V Series – Prolink

Pure sine wave solar inverter

4.3″ LCD display

Battery independent design

Dual-AC Input

Built-in Wi-Fi for mobile monitoring

USB on-the-go function

Output Power Factor 1.0

USB On-The-Go Function

Allows for updating firmware on the inverter, and downloading of history and events for analysis on the USB drive.

Enhanced Charging Power

Enable safe, efficient and fast (up to 120A) unattended charging of a battery from a mains power source or generator

Built-In Anti-Dust Kit

Helps to filter dust sucked in by the cooling fan and allows for easy regular maintenance so that the inverter can perform at optimum efficiency in a harsh environment.

Pure Sine Wave Output

Provides clean and consistent pure sine wave power that improves equipment’s performance and efficiency.

Mobile Monitoring

Enjoy the convenience of monitoring the inverter’s data from mobile app anytime and anywhere than physically checking your inverter screen all the time.

Selectable Input Voltage Range

Two selection modes with narrow input voltage range, suitable for sensitive appliances such as personal computers, and wide input range that can sufficiently support general home appliances.

Touchable Button With 4.3″ Coloured LCD Display

Useful information such as output voltage and power conditions are shown at a glance through with the LCD display.

Customizable Status LED Bar

Programmable RGB lighting and effects for different operation modes.

Intelligent Battery Features

Built-In BMS Communication

Provides advanced monitoring and management to lithium-ion battery in the prevention of overcharging and protection against under-voltage and high temperatures of short circuits.

Battery Independent Design

Battery connection is not compulsory as power from grid or solar source can be supply directly to the load.

Specifications

Rated power

Haus Max Twin 8KM-48: 8000VA/8000W
Haus Max Twin 11KM-48: 11000VA/11000W
Haus Max Duplex 11KM-48: 11000VA/11000W

Input nominal voltage

230VAC

Input voltage range

170 – 280VAC (For personal computers)

90 – 280VAC (For home appliances)

Input frequency range

50/60Hz (Auto sensing)

Output voltage

230VAC ± 10%

Output surge power

Haus Max Twin 8KM-48: 16000VA
Haus Max Twin 11KM-48: 22000VA
Haus Max Duplex 11KM-48: 22000VA

Output efficiency (peak)

Haus Max Twin 8KM-48: 90% – 93%
Haus Max Twin 11KM-48: 93%
Haus Max Duplex 11KM-48: 93%

Output transfer time

Haus Max Twin 8KM-48:

15ms (For personal computers)

20ms (For home appliances)

Haus Max Twin 11KM-48 and Haus Max Duplex 11KM-48:

10ms (For personal computers)

20ms (For home appliances)

Battery voltage

48 VDC

Floating charge voltage for battery

54 VDC

Overcharge protection for battery

Haus Max Twin 8KM-48: 66 VDC
Haus Max Twin 11KM-48: 66 VDC
Haus Max Duplex 11KM-48: 63 VDC

Maximum PV array power

Haus Max Twin 8KM-48: 8000W (4000W x 2)
Haus Max Twin 11KM-48: 11000W (5500W x 2)
Haus Max Duplex 11KM-48: 11000W (5500W x 2)

Max. PV array open circuit voltage for solar charger

500VDC

Solar charger type

MPPT

Max. solar charge current

Haus Max Twin 8KM-48: 120A
Haus Max Twin 11KM-48: 150A
Haus Max Duplex 11KM-48: 150A

Max. AC charge current

Haus Max Twin 8KM-48: 120A
Haus Max Twin 11KM-48: 150A
Haus Max Duplex 11KM-48: 150A

Max. charge current

Haus Max Twin 8KM-48: 120A
Haus Max Twin 11KM-48: 150A
Haus Max Duplex 11KM-48: 150A

Physical

Dimension, D x W x H (mm)

147.4 x 432.5 x 553.6

Net Weight (kgs)

Haus Max Twin 8KM-48: 14.1
Haus Max Twin 11KM-48: 18.4
Haus Max Duplex 11KM-48: 18.4

Communication Interface

USB/RS232/RS485/Wifi/Dry-contact

Environment

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operating Temperature

-10°C to 50°C

Storage Temperature

-15°C to 60°C
