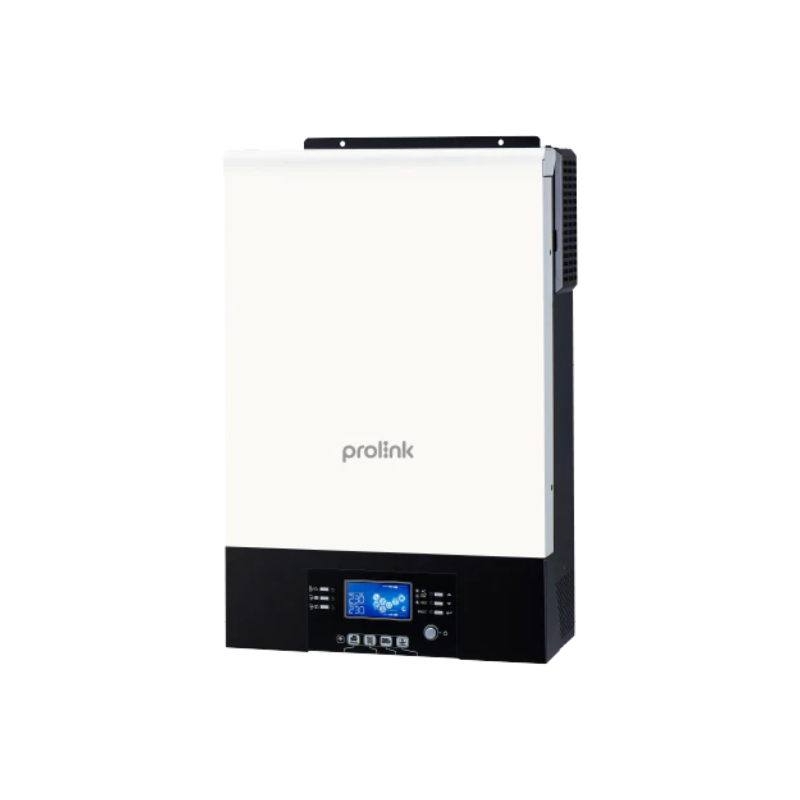

Prolink Haus Royale II 5KM-48

Description

Haus Royale II Series is an off-grid (hybrid) inverter that converts solar energy from solar panels into pure sine wave output and provides power supply for both residential and commercial applications.

• Pure sine wave solar Inverter
• Output power factor 1.0
• Zero transfer time to protect mission-critical loads such as ATM and servers
• Detachable LCD control module with multiple communications
• Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
• Supports USB On-the-Go function
• User friendly LCD operation
• Built-in BMS communication for Lithium-ion Batteries
• Configuration AC/PV output usage timer and prioritization
• Parallel operation up to 9 units (Optional)

Features

Haus V Series – Prolink

Pure sine wave output

LCD display

Zero transfer time

Output Power Factor 1.0

Pure Sine Wave Output

Provides clean and consistent pure sine wave power that improves equipment’s performance and efficiency.

Mobile Monitoring

Enjoy the convenience of monitoring the inverter’s data from mobile app anytime and anywhere than physically checking your inverter screen all the time.

Zero Transfer Time

Offers instant 0ms transfer time from mains to battery mode when mains power is interrupted. This improved UPS functionality allows mission-critical loads such as ATM and medical equipment to operate continuously in case of power failures.

Turn the removable LCD control module into a remote control

Built-In BMS Communication

Provides advanced monitoring and management to lithium-ion battery in the prevention of overcharging and protection against under-voltage and high temperatures of short circuits.

Battery Independent Design

Battery connection is not compulsory as power from grid or solar source can be supply directly to the load.

USB On-The-Go Function

Allows for updating firmware on the inverter, and downloading of history and events for analysis on the USB drive.

Specifications

Rated Power

Haus Royale II 5KM-48: 5000VA/5000W
Haus Royale II 6KM-48: 6000VA/6000W

Input Nominal Voltage

230VAC

Input Voltage Range

176 – 280VAC at 100% load

110 – 280VAC at 50% load

Input Frequency Range

50/60Hz (Auto sensing)

Output Voltage

220/230/240VAC ± 3%

Output Surge Power

Haus Royale II 5KM-48: 10000VA for 5 sec
Haus Royale II 6KM-48: 12000VA for 5 sec

Output Efficiency (Peak)

Line mode: >93%

Batt. mode: >90%

Output Transfer Time

0ms (For line mode to battery mode)

4ms (For inverter mode to bypass mode)

Battery Voltage

48VDC

Floating Charge Voltage For Battery

54VDC

Overcharge Protection For Battery

66VDC

Maximum PV Array Power

6000W

Max. PV Array Open Circuit Voltage For Solar Charger

500VDC

Solar Charger Type

MPPT

Max. Solar Charge Current

Haus Royale II 5KM-48: 100A
Haus Royale II 6KM-48: 120A

Max. AC Charge Current

Haus Royale II 5KM-48: 100A
Haus Royale II 6KM-48: 120A

Max. Charge Current

Haus Royale II 5KM-48: 100A
Haus Royale II 6KM-48: 120A

Physical

Dimension, D x W x H (mm)

140mm (D) x 295mm (W) x 468mm (H)

Net Weight (kgs)

12kg

Communication Interface

USB/RS232

Environment

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operating Temperature

0°C to 55°C

Storage Temperature

-15°C to 60°C
