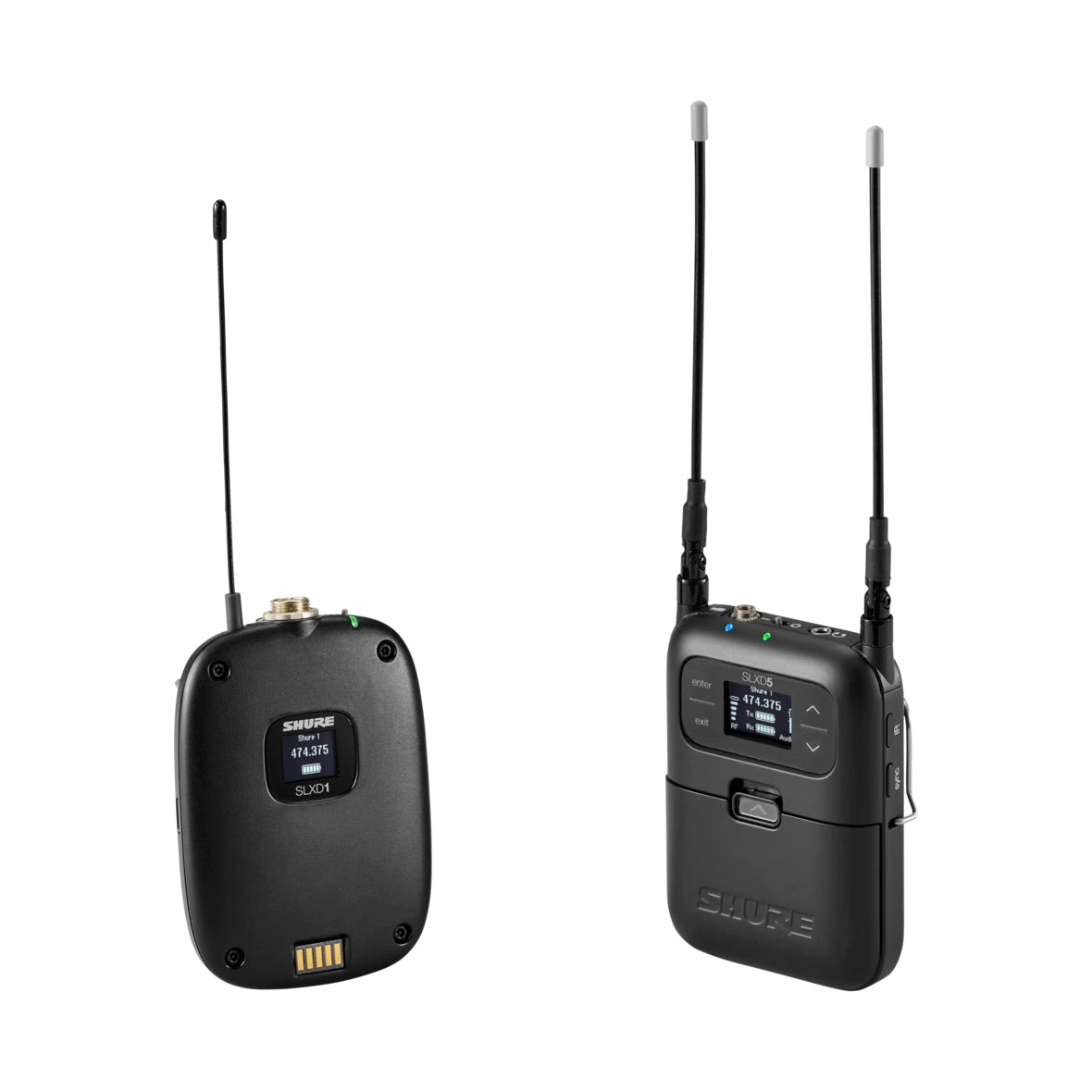

Shure SLXD15/85 Portable Digital Wireless With SLXD1 Bodypack Transmitter
Key Features
- Content Creation, Videos, Documentaries
- Durable, Ergonomic Bodypack Transmitter
- TA4M Connector for Microphone
- 1-Channel Receiver for Camera or Bag Use
- 118 dB Dynamic Range, 24-Bit Audio
- Reliable Predictive-Diversity Antennas
- 44 MHz Bandwidth, 1760 Frequencies
- Multi-Mic Mode for Complex Setups
- 8-Hour Bodypack, 5.5-Hour Receiver
- Expandable to 32 Mic Channels/330′ Range
Description
Description
Hard-Working Wireless, When And Where You Need It.
The SLXD15 Portable digital wireless bodypack system delivers transparent, 24-bit digital audio and rock-solid RF performance for videographers, ENG and field production, film and location sound applications. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories. The SLXD1 features a TQG connector for adding your choice of lavalier microphone. Includes SLXD1 bodypack wireless transmitter, SLXD5 single-channel portable receiver, two zippered carrying pouches and a pair of AA alkaline batteries (no lavalier included).
Features
The Shure SLXD15 offers videographers, journalists, documentary makers, and content producers a reliable wireless portable microphone system that delivers crystal-clear digital sound quality while also being quick and easy to set up, even if you’re using multiple mics on set. Built around a rugged, single-channel receiver that can be camera-mounted or used in an audio bag, the system offers a comprehensive feature set that ensures professional-sounding, broadcast-ready results for demanding filmmakers and creators. This configuration includes a bodypack transmitter with a TA4M connector, ready to accommodate the compatible lavalier or headset microphone of your choice (available separately).
Transparent Digital Sound, Dependable Performance, and Multi-Mic Mode
- The SLX-D delivers 24-bit digital audio with a fast transient response, a 20 Hz to 20 kHz frequency response, and a 118 dB dynamic range, resulting in clear, accurate sound.
- Operating far away from potential Wi-Fi interference in the 2.4 GHz band, this configuration of the system transmits in the G58: 470 to 514 MHz UHF band, with a 44 MHz tuning range and 1760 frequencies it can autoscan to ensure a clean wireless signal.
- Digital Predictive Switching Diversity uses a microprocessor to switch between the two antennas before dropouts occur.
- A low latency of 3.2 ms helps ensure your sound and picture are easy to properly sync.
- The SLX-D’s spectrum-efficient digital transmission technology allows for up to 32 mics to be used at once.
- Great for shoots with several cameras and microphones, Multi-Mic Mode lets you scan and create a list of clean frequencies, which you can send to multiple receivers via IR.
- Each receiver will sync to the appropriate transmitter at the touch of a button; settings on the transmitters like the input gain and high-pass filter are also recalled.
- Multi-Mic Mode makes channel allocation easier and more efficient since the receivers aren’t all auto-scanning and competing for open frequencies.
Shure SLXD15/85 System Features
- Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
- Dual 1/8” outputs including a headphone monitor out and switchable line/mic output
- Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
- Bright OLED display screen for key system function readouts and remaining battery life on transmitter and receiver
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- Charging contacts for use with optional SBC203 docking charger
- TQG connectivity offers a variety of microphone options
- Rugged metal construction portable receiver design
- Ergonomic, durable plastic construction bodypack transmitter
IN THE BOX
- 1 SLXD1 Digital Wireless Bodypack Transmitter
- 1 SLXD5 Single-Channel Portable Digital Wireless Receiver
- 2 Zippered Carrying Pouches
- 1 WA311 Non-Conductive Cold Shoe Mount Adapter
- 4 AA Alkaline Batteries
Specifications
Key Specs
| Wireless Technology | |
| Included Transmitters | |
| Diversity | |
| Max Operating Range | |
| Receiver Type |
System
| Wireless Technology | |
| Number of RF Channel Frequencies | |
| Included Transmitters | |
| Diversity | |
| RF Frequency Band | |
| RF Bandwidth | |
| Frequency Step Size | |
| RF Channel Scanning | |
| Max Operating Range | |
| Max Transmitters per Band | |
| Built-In Recorder | |
| Timecode Support | |
| Mobile App Compatible | |
| Sample Rate/Resolution | |
| Latency | |
| Dynamic Range | |
| Encryption | |
| THD |
Receiver
| Receiver Type | |
| Mounting Options | |
| Antenna | |
| Number of Audio Channels | |
| Built-In Microphone | |
| Audio I/O | |
| Audio Output Level | |
| Phantom Power Protection | |
| Frequency Response | |
| Network I/O | |
| USB/Lightning Connectivity | |
| USB Class-Compliant | |
| Standalone Audio Interface Capable | |
| Impedance | |
| Approximate RF Sensitivity | |
| Spurious | |
| Power Requirements | |
| Battery Type | |
| Approx. Battery Life | |
| Display & Indicators | |
| Housing | |
| Operating Temperature | |
| Storage Temperature | |
| Dimensions | |
| Weight |
Transmitter
| Transmitter Type | |
| RF Output Power | |
| Built-In Microphone | |
| Audio I/O | |
| Included Cable Connector | |
| Pad | |
| Muting | |
| Audio Input Level | |
| Auto-Level Control | |
| Gain Range | |
| Signal Processing | |
| Frequency Response | |
| Sync Method | |
| Antenna | |
| Power Requirements | |
| Battery Type | |
| Battery Charging Time | |
| Approx. Battery Life | |
| USB/Lightning I/O | |
| Display & Indicators | |
| Housing | |
| Operating Temperature | |
| Storage Temperature | |
| Dimensions | |
| Weight |
