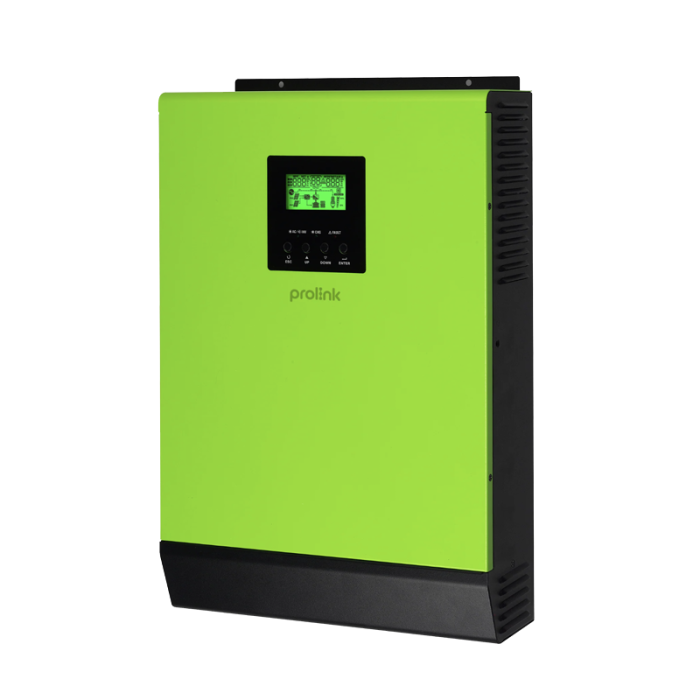

Prolink Energrid V Series
Key Features
- Pure sine wave output
- Built-in MPPT solar charger
- Self-consumption and Feed-in to the grid
- Programmable multiple operation modes
- Programmable supply priority
Description
Energrid V Series is an on-grid inverter with energy storage is a smart inverter that works for multiple scenarios through a single unit. The solar power stored during the day can be released when the loads require it in night.
• Pure sine wave output
• Self-consumption and Feed-in to the grid
• Programmable supply priority for PV, Battery or Grid
• User-adjustable charging current and voltage
• Programmable multiple operation modes: Grid-tie (with battery connected), off-grid and grid-tie with backup
• Monitoring software for real-time status display and control
• Parallel operation up to 9 units only for 3K/4K/5K models
Features
 |
Pure sine wave solar inverter |
|---|---|
 |
LCD dsiplay |
 |
Programmable supply priority |
Output Power Factor 1.0
Pure Sine Wave Output
Provides clean and consistent pure sine wave power that improves equipment’s performance and efficiency.
Mobile Monitoring
Enjoy the convenience of monitoring the inverter’s data from mobile app anytime and anywhere than physically checking your inverter screen all the time.
Adjustable Charging Current and Voltage
Battery charging voltage and current are adjustable to suit various battery capacities.
Built-In MPPT Solar Charger
Preventing the battery from overcharging by regulating the voltage and current coming from the solar panel to the battery.
Programmable Parameters
 |
Supply PrioritySet input source preferences (solar/ battery power/ grid) for the DC load input of the inverter. |
|---|---|
 |
Operation ModesSelect between grid-tie (with battery connected), off-grid and grid-tie with backup to suite application and scenarios. |
Specifications
| Max. PV Array Power |
|
|---|---|
| Rated Output Power |
|
| Maximum PVArray Open Circuit Voltage |
145 VDC |
| MPPT Range @ Operating Voltage |
|
| MPP Tracker Number |
|
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184 – 264.5 VAC or 195.5 – 253 VAC (Selectable) |
| Nominal Output Current |
|
| Power Factor | > 0.99 |
| Maximum Conversion Efficiency (DC/AC) | 90% |
| Acceptable Input Voltage Range | 90 – 280 VAC or 170 – 280 VAC |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| Maximum AC Input Current |
|
| Nominal Output Voltage | 220/230/240 VAC |
| Output Waveform |
Pure sine wave |
| Efficiency (DC to AC) | 93% |
Battery & Charger
| Nominal DC Voltage |
|
|---|---|
| Maximum Solar Charge Current |
|
| Maximum AC Charge Current |
60 A |
| Maximum Charge Current |
|
Physical
| Dimension, D x W x H (mm) |
|
|---|---|
| Net Weight (kgs) |
|
