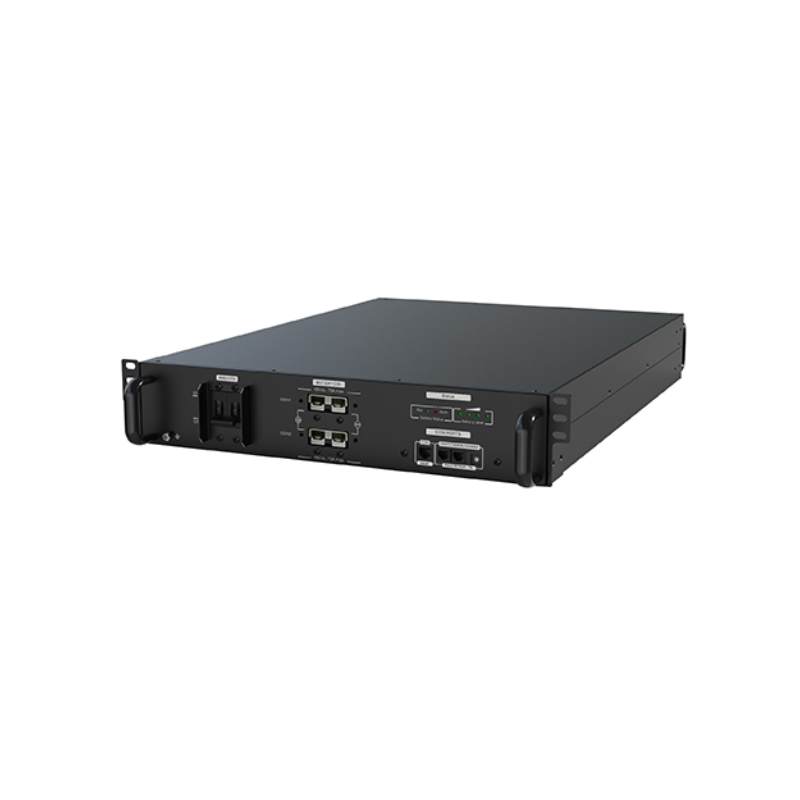

Prolink LIO Series

Prolink LIO Series

Description

• Modular design
• Life cycle : 8000 cycles at 25°C, 60% DOD
• 1.5C continuous discharging current
• High surge discharging current up to 2C
• Wide operating voltage range from 34.5 to 52.5Vdc
• Flexible front and Rear installation
• Communication protocols: RS485
• Easy capacity extension by paralleled
• Aluminum case LiFeO4 for cells, more safety and stable

LIO 4805 / LIO 4810 48Vdc 50AH/100AH Lithium-ion battery pack | VOLTRONIC POWER TECHNOLOGY CORP. | Energy & Utilities | Energy & Utilities

Specifications

Capacity

LIO-4805: 2400Wh
LIO-4810: 4800Wh

Nominal Voltage

48 VDC

Full Charge Voltage (FC)

52.5V

Full Discharge Voltage (FD)

34.5V

Typical Capacity

LIO-4805: 50Ah
LIO-4810: 100Ah

Max Continuous Discharging Current

LIO-4805: 75A
LIO-4810: 150Ah

Max Peak Discharging Current

LIO-4805: 100A
LIO-4810: 180Ah

Battery Connector Max current

LIO-4805: 75A
LIO-4810: 75A+75A

Protection

52.5 ± 0.1V

Maximum Charge Current

LIO-4805: 50A (1C)
LIO-4810: 100 A (1C)

Standard Charge Method

0.2C CC (Constant current) charge to FC,
CV (Constant voltage FC) charge till charge current decline to <0.05C

Inner Resistance

<20m ohm

LED

Battery Status, Battery level, Battery fault, Alarm

Physical

Dimension, D x W x H (mm)

LIO-4805: 676 x 438 x 86
LIO-4810: 676 x 438 x 133

Net Weight (kgs)

LIO-4805: 30
LIO-4810: 57

Environment

Operating Environment

Charge : 0°C~50 °C

Discharge: 0°C~50 °C

Storage Temperature Range °C
(At 50% SOC and specified temp,
recoverable capacity in % vs time / 50%)

< 18 months: -20°C~25 °C
< 3 months: 25°C~45 °C
< 1 months: 45°C~60 °C
20°C ± 5 °C is the recommended storage temperature

Management

Communication

RS485 port (RJ45), extension port (RJ11)

Certifications

UN38.3, IEC 62619

Design Life

>10 years @ 25 °C

Lifecycle

> 4500 @ 25 °C
