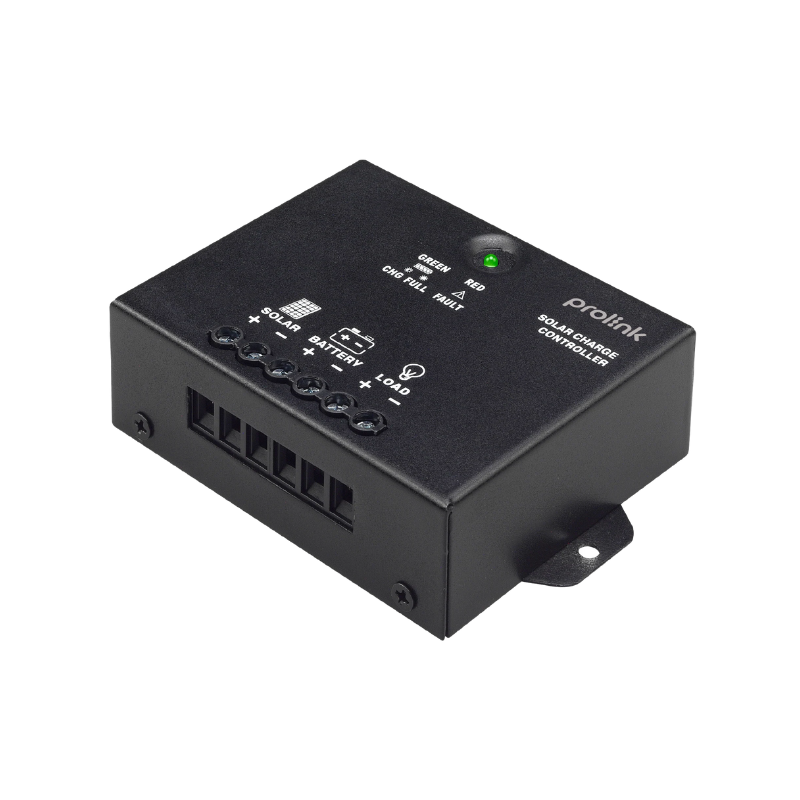

Prolink PWM Series
Key Features
• 12VDC or 24VDC available
• Multi-stage charging method
• Lightweight design
Description
Description
The PWM series solar charge controller integrates efficient PWM charging to increase battery life and improve system performance.
• 12VDC or 24VDC available
• Multi-stage charging method
• Lightweight design
Features
![]() |
Available in 12VDC or 24VDC battery output voltage |
|---|---|
![]() |
Multi-Stage ChargingPrevents overcharging to increase overall battery service life. |
![]() |
Lightweight DesignAvailable in 210 – 490g to cater for special weight requirement. |
Specifications
| Maximum PV Array Open Circuit Voltage |
|
|---|---|
| Maximum PV Array Power |
|
| Maximum Current |
|
| Nominal Battery Voltage |
|
| Connected Battery Type |
Sealed lead acid battery |
| Maximum Charging Current |
|
| Ripple Voltage | < ± 1 V |
| Charging Method |
|
| LED Display | Green LED indicating charging status |
| Dimension, D X W X H (mm) |
|
| Net Weight |
|
| Connector |
|
| IP Protection | IP 31 |
Environment
| Operating Temperature | -20°C to 55°C |
|---|---|
| Storage Temperature | -40°C to 75°C |
| Altitude |
0 ~ 3000 m |
