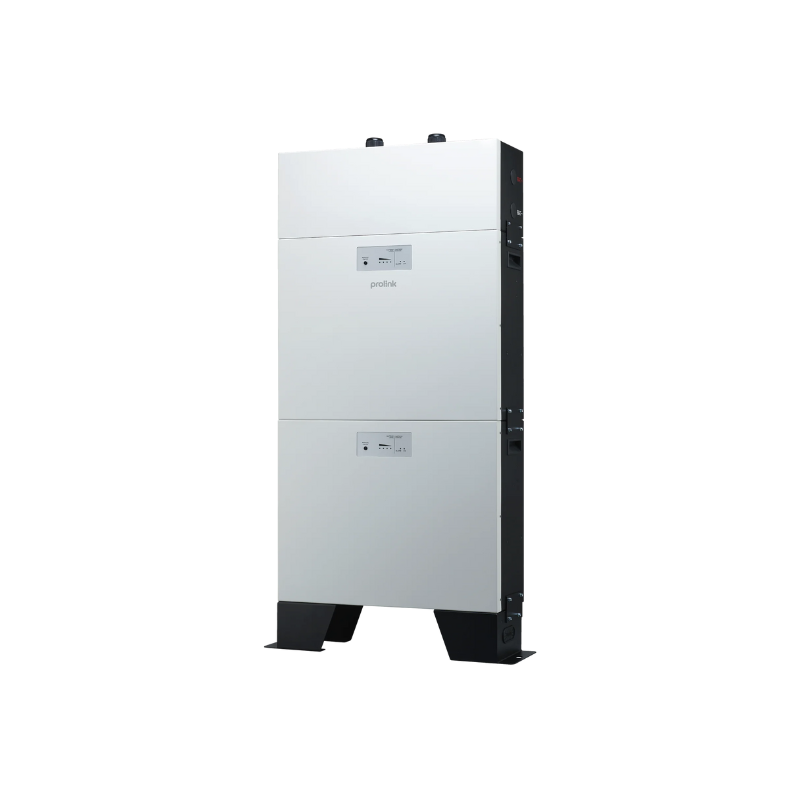

Prolink LIO II-4810
Key Features
- Compact size and Lightweight
- Modular design for easy scalable
- Fast charging
- Maximum Lifecycle
Description
The Lio II-4810 is an expandable lithium-ion batteries designed for inverter.
• Lithium Iron Phosphate (LFP) cell guarantees safety and reliability
• Easy to install on the floor
• Suitable for wide range of inverters with 48V system
Features
 |
Fast charging |
|---|---|
 |
Compact size and lightweight |
 |
Modular battery design |
Maximum Lifecycle
8000 cycles is for 60% DOD with >50% capacity
4000 cycles is for 90% DOD with >80% capacity
Compact Size and Lightweight
Built-in Lithium Iron Phosphate (LFP) cell offers high power density which causes lithium batteries to be relatively small and light.
Fast Charging
Reduces downtime and increases efficiency as the battery module can be fully charged in a shorter time.
Modular Design For Battery

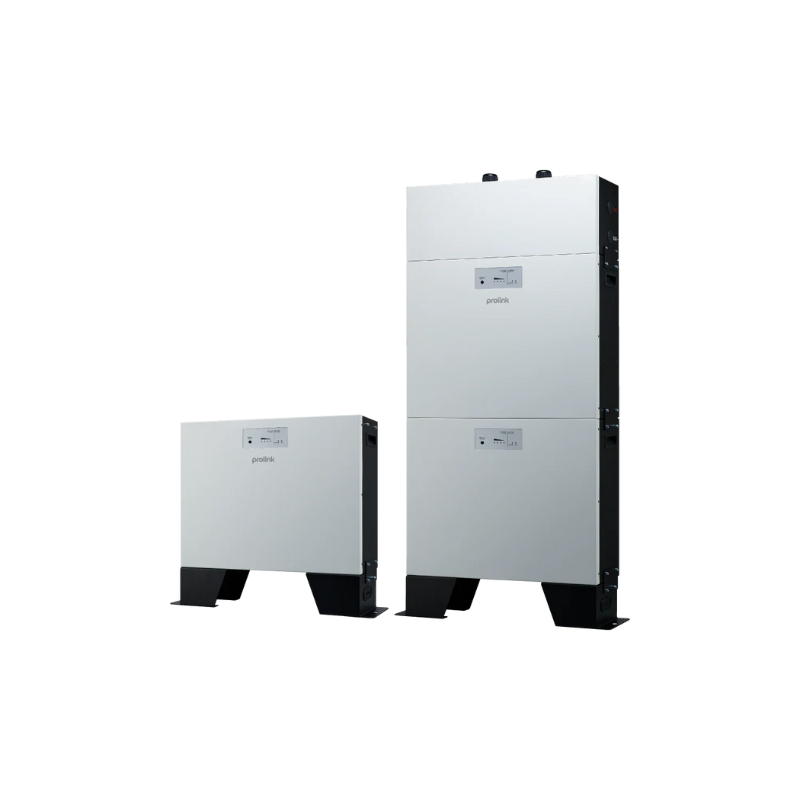

Easily expand the battery storage system by connecting Lio II 4810 in parallel to increase the system’s capacity.
System Diagram
Specifications
| Battery Cell Technology | Lithium Iron Phosphate |
|---|---|
| Application Inverter Rating of ≦ 5.6 KW |
Number of Module: 1 Usable energy: 5KWh Rated discharging current: 150A Peak discharging current: 192A, 1 min Nominal voltage: 51.2V Operating voltage: 40 – 56VDC Charging current: 100A Max, 30A Default Dimension, D x W x H (mm) Net Weight (kg): 48
Number of Module: 2 Usable energy: 10KWh Rated discharging current: 150A Peak discharging current: 192A, 1 min Nominal voltage: 51.2V Operating voltage: 40 – 56VDC Charging current: 100A Max, 30A Default Dimension, D x W x H (mm) Net Weight (kg): 96
Number of Module: 3 Usable energy: 15KWh Rated discharging current: 150A Peak discharging current: 192A, 1 min Nominal voltage: 51.2V Operating voltage: 40 – 56VDC Charging current: 100A Max, 30A Default Dimension, D x W x H (mm) Net Weight (kg): 144
Number of Module: 4 Usable energy: 20KWh Rated discharging current: 150A Peak discharging current: 192A, 1 min Nominal voltage: 51.2V Operating voltage: 40 – 56VDC Charging current: 100A Max, 30A Default Dimension, D x W x H (mm) Net Weight (kg): 192 |
| Application Inverter Rating of 6KW – 12KW |
Number of Module: 2 Number of PDU module: 1 Usable energy: 10KWh Rated discharging current: 300A Peak discharging current: 384A, 1 min Nominal voltage: 51.2V Operating voltage: 40 – 56VDC Dimension, D x W x H (mm) Net Weight (kg): 102
Number of Module: 3 Number of PDU module: 1 Usable energy: 15KWh Rated discharging current: 300A Peak discharging current: 384A, 1 min Nominal voltage: 51.2V Operating voltage: 40 – 56VDC Dimension, D x W x H (mm) Net Weight (kg): 150
Number of Module: 4 Number of PDU module: 1 Usable energy: 20KWh Rated discharging current: 300A Peak discharging current: 384A, 1 min Nominal voltage: 51.2V Operating voltage: 40 – 56VDC Dimension, D x W x H (mm) Net Weight (kg): 198 |
General Specification
| Operation Temperaturet (Charge | Discharge) | 0°C~50 °C |
|---|---|
| Storage Temperature temp, recoverable capacity in % (At 50% SOC and specified vs time / 50%) |
|
| IP Protection |
IP20 |
| Communication | RS485 port (RJ45), CAN |
| Certifications |
IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3 |
