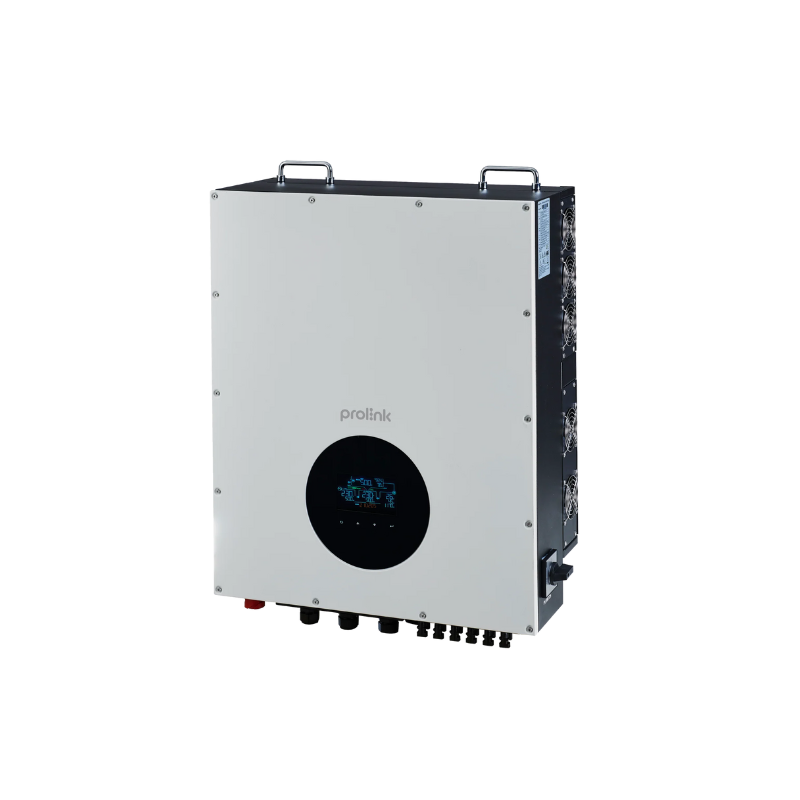

Prolink Energrid WP

Description

Energrid WP is an on-grid inverter with energy storage that works for multiple scenarios through a single unit. The solar power stored during the day can be released when the loads require it in night.

• IP65 waterproof and dustproof makes the inverter available for various working conditions.
• Built-in WiFi for mobile monitoring (App is available)
• 150% unbalaned load support
• Dual outputs selected as either programmable output or generator input
• Buit-in AC coupled function
• User-adjustable charging current and voltage
• Reserved communication port for BMS (RS485)
• Parallel operation up to 6 units

Features

IP65 rating

LCD dsiplay

Built-in Wi-Fi

Output Power Factor 1.0

IP65 Rating

Suitable for harsh outdoor application environments as it protects against dust, rain, and sunray.

Adjustable Charging Current and Voltage

Battery charging voltage and current are adjustable to suit various battery capacities.

Built-In Wi-Fi For Mobile Monitoring

Enjoy the convenience of monitoring the inverter’s data from mobile app anytime and anywhere via the Wi-Fi.

2 Input and 2 Smart Output

Dual AC input

With two independent input power sources – utility and generator, it switches automatically ensuring uninterrupted AC power.

Dual output

This inverter supplies power to two separate devices or loads simultaneously. This is especially useful in situations where multiple electronic devices are needed to run at the same time.

Specifications

Max. PV Input Power

Energrid WP 10KM-48: 14500W
Energrid WP 12KM-48: 16000W
Energrid WP 15KM-48: 22500W

Rated Output Power

Energrid WP 10KM-48: 10000 W
Energrid WP 12KM-48: 12000 W
Energrid WP 15KM-48: 15000 W

Maximum Charging Power

Energrid WP 10KM-48: 10000 W
Energrid WP 12KM-48: 12000 W
Energrid WP 15KM-48: 15000 W

Maximum Charging Power

Energrid WP 10KM-48: 10000 W
Energrid WP 12KM-48: 12000 W
Energrid WP 15KM-48: 15000 W

Nominal DC Voltage / Maximum DC Voltage

720 VDC / 1000 VDC

Start-up Voltage / Initial Feeding Voltage

320 VDC / 350 VDC

MPP Voltage Range

350 VDC ~ 850 VDC

Number of MPP Trackers / Maximum Input Current

Energrid WP 10KM-48: 2 / A: 26A, B: 13A
Energrid WP 12KM-48: 2 / A: 26A, B: 26A
Energrid WP 15KM-48: 2 / A: 26A, B: 26A

Number of Strings Per MPP Tracker

Energrid WP 10KM-48: A: 2, B: 1
Energrid WP 12KM-48: A: 2, B: 2
Energrid WP 15KM-48: A: 2, B: 2

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Output Voltage Range

184 – 265 VAC per phase

Nominal Output Current

Energrid WP 10KM-48: 14.5 A per phase
Energrid WP 12KM-48: 17.4 A per phase
Energrid WP 15KM-48: 21.7 A per phase

Power Factor Range

0.9 lag ~ 0.9 lead

Maximum Conversion Efficiency (DC/AC)

>96%

European Efficiency@ Vnominal

>95%

AC Input & Battery Mode Output (AC)

AC Start-up Voltage / Auto Restart Voltage

120 – 140 VAC / 180 VAC

Acceptable Input Voltage Range

170 – 290 VAC per phase

Maximum AC Input Current

40 A

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Output Waveform

Pure sine wave

Efficiency (DC to AC)

91%

Battery & Charger

Battery Voltage Range

40 ~ 62 VDC

Maximum Charging Current

Energrid WP 10KM-48: 220 A
Energrid WP 12KM-48: 250 A
Energrid WP 15KM-48: 300 A

Physical

Dimension, D x W x H (mm)

Energrid WP 10KM-48: 247 x 500 x 650
Energrid WP 12KM-48: 255 x 660 x 750
Energrid WP 15KM-48: 255 x 660 x 750

Net Weight (kgs)

Energrid WP 10KM-48: 42
Energrid WP 12KM-48: 70
Energrid WP 15KM-48: 73

Environment

Humidity

0 ~ 100% RH (Non-condensing)

Operating Temperature

-25 to 60°C, > 45°C power derating

Altitude

0 ~ 1000 m
