Description

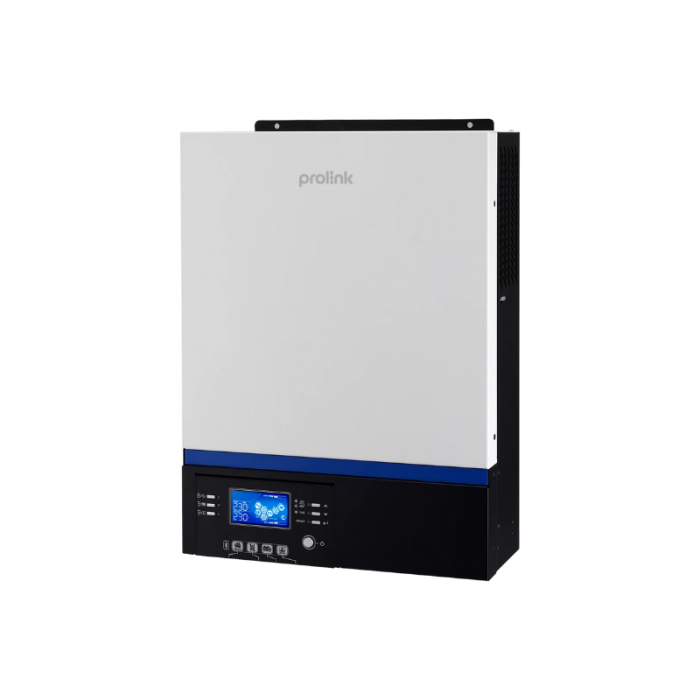

Haus V III Series is an off-grid (hybrid) inverter that converts solar energy from solar panels into pure sine wave output and provides power supply for both residential and commercial applications.

• Pure sine wave solar Inverter
• Output power factor 1.0
• Removable LCD control module
• Built-in BMS communication for Lithium-ion Batteries
• Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
• Configurable AC/PV Output usage timer and prioritization
• Selectable high power charging current

• Compatible to Utility Mains or generator input
• Auto restart while AC is recovering
• Cold start function
• Supply load from Grid or PV, even when battery is not available
• Replaceable modular fans
• Build-In dust filters
• Battery independent design

Features

Haus V Series – Prolink

Pure sine wave output

LCD display

Build-In dust filters

Output Power Factor 1.0

Built-in BMS Communication

Provides advanced monitoring and management to lithium-ion battery in the prevention of overcharging and protection against under-voltage and high temperatures of short circuits.

Battery Independent Design

Battery connection is not compulsory as power from grid or solar source can be supply directly to the load.

Selectable Charging Parameters

Battery charging voltage and current are adjustable via LCD program settings to suit various battery capacity.

Pure Sine Wave Output

Provides clean and consistent pure sine wave power that improves equipment’s performance and efficiency.

Mobile monitoring

Enjoy the convenience of monitoring the inverter’s data from mobile app anytime and anywhere than physically checking your inverter screen all the time.

Selectable Input Voltage Range

Two selection modes with narrow input voltage range, suitable for sensitive appliances such as personal computers, and wide input range that can sufficiently support general home appliances.

Detachable LED Screen

Turn the removable LCD control module into a remote control at up to 20m distance.

Built-In Dust Filters

Helps to filter dust sucked in by the cooling fan and allows for easy regular maintenance so that the inverter can perform at optimum efficiency.

Cold Start Function

Start the backup power system using the battery during mains failure and when no other AC is available.

Dual Power Inputs

Compatible with mains voltage or generator power.

Specifications

Rated power

Haus V III 1.5KM-24: 1500VA/1500W
Haus V III 3KM-24: 3000VA/3000W
Haus V III 4KM-48: 4000VA/4000W
Haus V III 5KM-48: 5000VA/5000W
Haus V III 6KM-48: 6000VA/6000W

Input nominal voltage

230VAC

Input voltage range

170 – 280VAC (For personal computers)

90 – 280VAC (For home appliances)

Input frequency range

50/60Hz (Auto sensing)

Output voltage

230VAC ± 5%

Output surge power

Haus VIII 1.5KM-24: 3000VA
Haus VIII 3KM-24: 6000VA
Haus VIII 4KM-48: 6000VA
Haus VIII 5KM-48: 10000VA
Haus VIII 6KM-48: 12000VA

Output efficiency (peak)

90% – 93%

Output transfer time

15ms (For personal computers)

20ms (For home appliances)

Battery voltage

Haus VIII 1.5KM-24: 24VDC
Haus VIII 3KM-24: 24VDC
Haus VIII 4KM-48: 24VDC
Haus VIII 5KM-48: 48VDC
Haus VIII 6KM-48: 48VDC

Floating charge voltage for battery

Haus VIII 1.5KM-24: 27VDC
Haus VIII 3KM-24: 27VDC
Haus VIII 4KM-48: 27VDC
Haus VIII 5KM-48: 54VDC
Haus VIII 6KM-48: 54VDC

Overcharge protection for battery

Haus VIII 1.5KM-24: 33VDC
Haus VIII 3KM-24: 33VDC
Haus VIII 4KM-48: 33VDC
Haus VIII 5KM-48: 63VDC
Haus VIII 6KM-48: 63VDC

Maximum PV array power

Haus VIII 1.5KM-24: 2000W
Haus VIII 3KM-24: 4000W
Haus VIII 4KM-48: 5000W
Haus VIII 5KM-48: 5000W
Haus VIII 6KM-48: 6000W

Max. PV array open circuit voltage for solar charger

Haus VIII 1.5KM-24: 400VDC
Haus VIII 3KM-24: 500VDC
Haus VIII 4KM-48: 500VDC
Haus VIII 5KM-48: 500VDC
Haus VIII 6KM-48: 500VDC

Solar charger type

MPPT

Max. solar charge current

Haus VIII 1.5KM-24: 60A
Haus VIII 3KM-24: 100A
Haus VIII 4KM-48: 120A
Haus VIII 5KM-48: 100A
Haus VIII 6KM-48: 120A

Max. AC charge current

Haus VIII 1.5KM-24: 40A
Haus VIII 3KM-24: 100A
Haus VIII 4KM-48: 100A
Haus VIII 5KM-48: 100A
Haus VIII 6KM-48: 100A

Max. charge current

Haus VIII 1.5KM-24: 60A
Haus VIII 3KM-24: 100A
Haus VIII 4KM-48: 120A
Haus VIII 5KM-48: 100A
Haus VIII 6KM-48: 120A

Physical

Dimension, D x W x H (mm)

Haus VIII 1.5KM-24: 100 x 280 x 390
Haus VIII 3KM-24: 115 x 300 x 400
Haus VIII 4KM-48: 115 x 300 x 400
Haus VIII 5KM-48: 115 x 300 x 400
Haus VIII 6KM-48: 115 x 300 x 400

Net Weight (kgs)

Haus VIII 1.5KM-24: 8.5
Haus VIII 3KM-24: 9
Haus VIII 4KM-48: 9
Haus VIII 5KM-48: 10
Haus VIII 6KM-48: 10

Communication Interface

USB/RS232/RS485/Wi-Fi/Dry-contact

Environment

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operating Temperature

-10°C to 50°C

Storage Temperature

-15°C to 60°C
