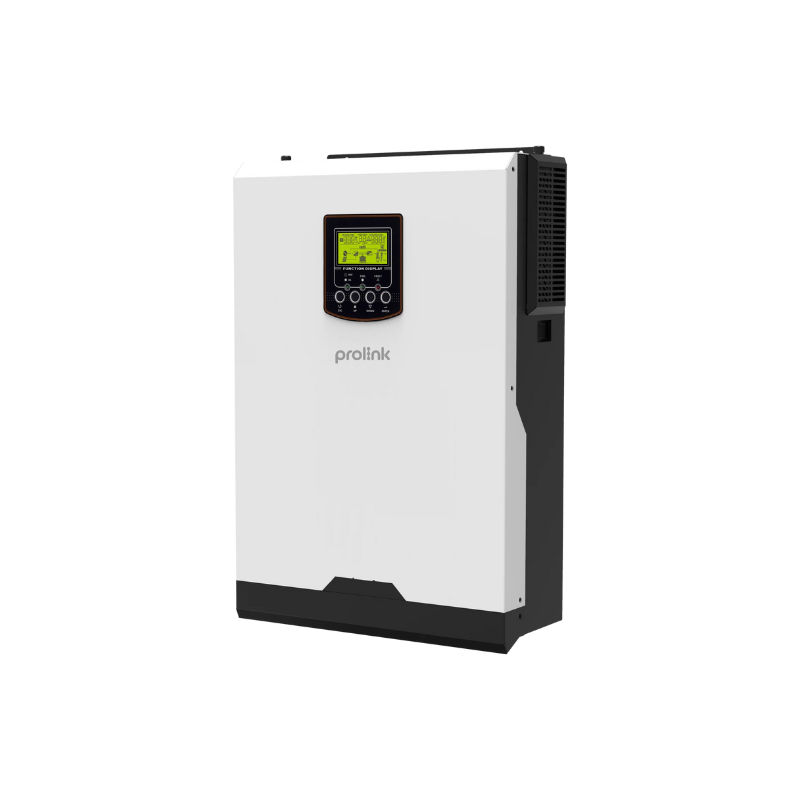

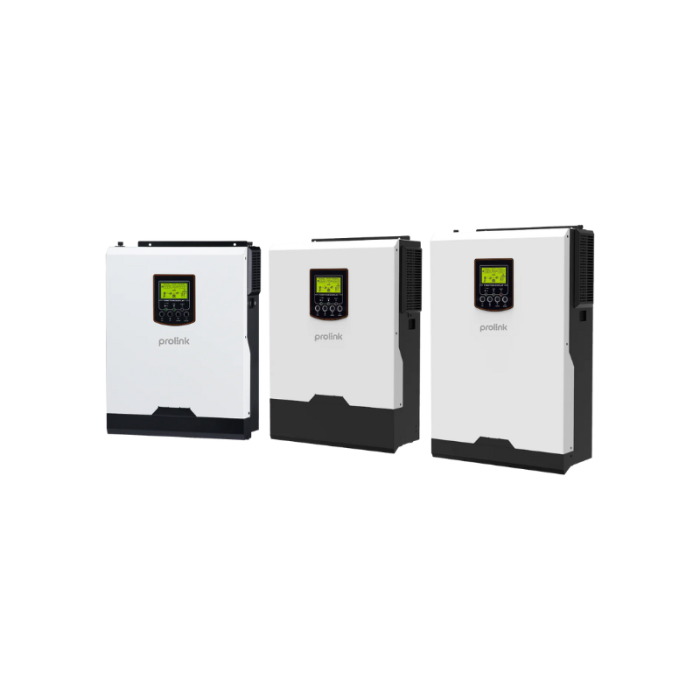

Prolink Haus V II Premium Series – 1.2KVA to 5KVA
Key Features
- Pure sine wave solar inverter
- Battery independent design
- Battery equalization function
- Maximum charging current 100A
Description
Haus V II Premium Series is an off-grid (hybrid) inverter that converts solar energy from solar panels into pure sine wave output and provides power supply for both residential and commercial applications.
• Pure sine wave solar inverter
• Output power factor 1.0
• Selectable high power charging current
• Wide DC input range
• Selectable input voltage range for home appliances and personal computers
• Configurable AC/Solar input priority via LCD setting
• Compatible with mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Battery independent design
• Cold start function
Features
 |
Pure sine wave output |
|---|---|
 |
Built-in anti-dust kit |
 |
Battery Independent DesignBattery connection is not compulsory as power from grid or solar source can be supplied directly to the load. |
|---|---|
 |
Selectable Input Voltage RangeTwo selection modes with narrow input voltage range, suitable for sensitive appliances such as personal computers, and wide input range that can sufficiently support general home appliances. |
 |
Built-In Anti-Dust KitHelps to filter dust sucked in by the cooling fan and allows for easy regular maintenance so that the inverter can perform at optimum efficiency. |
Pure Sine Wave Output
Provides clean and consistent pure sine wave power that improves equipment’s performance and efficiency.
Battery Equalization
It ensures that all individual cells within a battery pack are charged and discharged evenly. This balance can extend the life of the battery by preventing premature degradation of individual cells.
Specifications
| Rated power |
|
|---|---|
| Input nominal voltage | 230VAC |
| Input voltage range |
170 – 280VAC (For personal computers) 90 – 280VAC (For home appliances) |
| Input frequency range | 50/ 60Hz (Auto sensing) |
| Output voltage | 230VAC ± 5% |
| Output surge power |
|
| Output efficiency (peak) | 90 – 93% |
| Output transfer time |
10ms (For personal computers) 20ms (For home appliances) |
| Battery voltage |
|
| Floating charge voltage for battery |
|
| Overcharge protection for battery |
|
| Maximum PV array power |
|
| Max. PV array open circuit voltage for solar charger |
|
| Solar charger type | MPPT |
|
Max. solar charge current |
100A |
| Max. AC charge current |
|
| Max. charge current | 100A |
