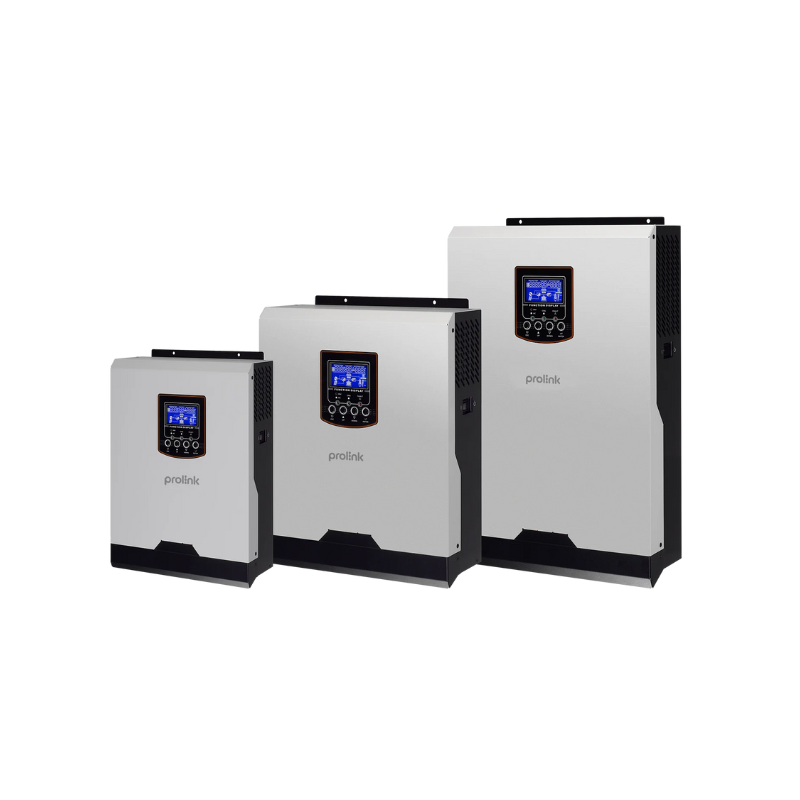

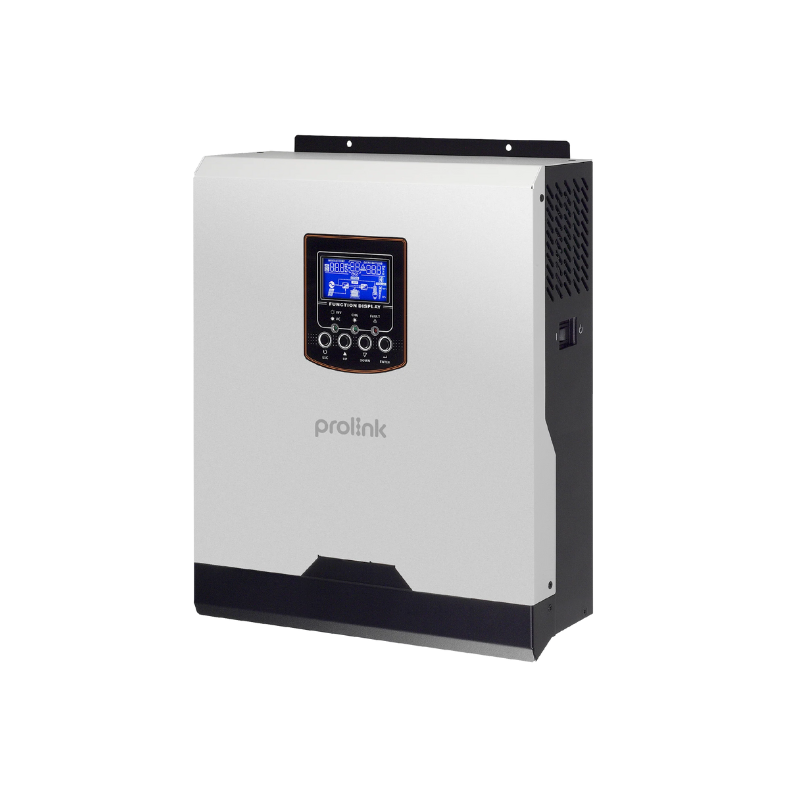

Prolink Haus V Series

Description

Haus V Series is an off-grid (hybrid) inverter that converts solar energy from solar panels into pure sine wave output and provides power supply for both residential and commercial applications.

• Pure sine wave solar inverter
• Output power factor 1.0
• Selectable high power charging current
• Wide DC input range
• Selectable input voltage range for home
appliances and personal computers
• Configurable AC/Solar input priority via LCD setting
• Compatible with mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function

Features

Pure sine wave output

LCD display

Wide input voltage

Output power factor 1.0

Advanced protection

Keeps your equipment protected from short circuit and overload.

Cold start function

The inverter can be switched on in the absence of mains power.

Dual power inputs

Compatible with mains voltage or generator power.

Pure Sine Wave Output

Provides clean and consistent pure sine wave power that improves equipment’s performance and efficiency.

Smart battery charger design for optimized battery performance

Haus V Series | 1KW-5KW Features:

Pure sine wave output
Provides clean and consistent pure sine wave power that improves equipment’s performance and efficiency.
Selectable input voltage range
Two selection modes with narrow input voltage range, suitable for sensitive appliances such as personal computers, and wide input range that can sufficiently support general home appliances.
Selectable high-power charging current
Safe, efficient and fast charging of battery bank even with higher total capacity
Built-in smart charging design
Helps to extend maximum performance and life from your battery with more precise charging capabilities.
Configurable output source priority (Solar/AC)
Set the sequence via LCD panel to meet the power demand based on user preferences or specific requirements.

Auto restart while AC is recovering
Inverter can automatically restart in the event of AC recovery

Specifications

Rated power

Haus V 1K-12: 1000VA/1000W
Haus V 1KM-12: 1000VA/1000W
Haus V 2K-24: 2000VA/2000W
Haus V 2KM-24: 2000VA/2000W
Haus V 3K-24: 3000VA / 3000W
Haus V 3KM-24: 3000VA / 3000W
Haus Plus V 3KM-24: 3000VA / 3000W
Haus V 5K-48: 5000VA / 5000W
Haus V 5KM-48: 5000VA / 5000W

Input nominal voltage

230VAC

Input voltage range

170 – 280VAC (For personal computers)

90 – 280VAC (For home appliances)

Input frequency range

50/ 60Hz (Auto sensing)

Output voltage

230VAC ± 5%

Output surge power

Haus V 1K-12: 2000VA
Haus V 1KM-12: 2000VA
Haus V 2K-24: 4000VA
Haus V 2KM-24: 4000VA
Haus V 3K-24: 6000VA
Haus V 3KM-24: 6000VA
Haus Plus V 3KM-24: 6000VA
Haus V 5K-48: 10000VA
Haus V 5KM-48: 10000VA

Output efficiency (peak)

90 – 93%

Output transfer time

10ms (For personal computers)

20ms (For home appliances)

Battery voltage

Haus V 1K-12: 12VDC
Haus V 1KM-12: 12VDC
Haus V 2K-24: 24VDC
Haus V 2KM-24: 24VDC
Haus V 3K-24: 24VDC
Haus V 3KM-24: 24VDC
Haus Plus V 3KM-24: 24VDC
Haus V 5K-48: 48VDC
Haus V 5KM-48: 48VDC

Floating charge voltage for battery

Haus V 1K-12: 13.5VDC
Haus V 1KM-12: 13.5VDC
Haus V 2K-24: 27VDC
Haus V 2KM-24: 27VDC
Haus V 3K-24: 27VDC
Haus V 3KM-24: 27VDC
Haus Plus V 3KM-24: 27VDC
Haus V 5K-48: 54VDC
Haus V 5KM-48: 54VDC

Overcharge protection for battery

Haus V 1K-12: 16VDC
Haus V 1KM-12: 16VDC
Haus V 2K-24: 32VDC
Haus V 2KM-24: 32VDC
Haus V 3K-24: 32VDC
Haus V 3KM-24: 32VDC
Haus Plus V 3KM-24: 32VDC
Haus V 5K-48: 63VDC
Haus V 5KM-48: 63VDC

Maximum PV array power

Haus V 1K-12: 600W
Haus V 1KM-12: 500W
Haus V 2K-24: 1200W
Haus V 2KM-24: 1000W
Haus V 3K-24: 1200W
Haus V 3KM-24: 1000W
Haus Plus V 3KM-24: 1500W
Haus V 5K-48: 2400W
Haus V 5KM-48: 3000W

Max. PV array open circuit voltage for solar charger

Haus V 1K-12: 55VDC
Haus V 1KM-12: 102VDC
Haus V 2K-24: 80VDC
Haus V 2KM-24: 102VDC
Haus V 3K-24: 80VDC
Haus V 3KM-24: 102VDC
Haus Plus V 3KM-24: 145VDC
Haus V 5K-48: 105VDC
Haus V 5KM-48: 145VDC

Solar charger type

Haus V 1K-12: PWM
Haus V 1KM-12: MPPT
Haus V 2K-24: PWM
Haus V 2KM-24: MPPT
Haus V 3K-24: PWM
Haus V 3KM-24: MPPT
Haus Plus V 3KM-24: MPPT
Haus V 5K-48: PWM
Haus V 5KM-48: MPPT

Max. solar charge current

Haus V 1K-12: 50A
Haus V 1KM-12: 40A
Haus V 2K-24: 50A
Haus V 2KM-24: 40A
Haus V 3K-24:50A
Haus V 3KM-24: 40A
Haus Plus V 3KM-24: 60A
Haus V 5K-48:50A
Haus V 5KM-48:60A

Max. AC charge current

Haus V 1K-12: 20A
Haus V 1KM-12: 20A
Haus V 2K-24: 20A
Haus V 2KM-24: 25A
Haus V 3K-24: 25A
Haus V 3KM-24: 25A
Haus Plus V 3KM-24: 60A
Haus V 5K-48: 60A
Haus V 5KM-48: 60A

Max. charge current

Haus V 1K-12: 50A
Haus V 1KM-12: 60A
Haus V 2K-24: 50A
Haus V 2KM-24: 60A
Haus V 3K-24: 70A
Haus V 3KM-24: 60A
Haus Plus V 3KM-24: 120A
Haus V 5K-48: 110A
Haus V 5KM-48: 120A

Dimension, D x W x H (mm)

Haus V 1K-12: 88 x 225 x 320
Haus V 1KM-12: 88 x 225 x 320
Haus V 2K-24: 88 x 225 x 320
Haus V 2KM-24: 88 x 225 x 320
Haus V 3K-24: 100 x 285 x 334
Haus V 3KM-24: 100 x 285 x 334
Haus Plus V 3KM-24: 100 x 300 x 440
Haus V 5K-48: 100 x 300 x 440
Haus V 5KM-48: 100 x 300 x 440

Net Weight (kgs)

Haus V 1K-12: 5.0
Haus V 1KM-12: 5.0
Haus V 2K-24: 5.5
Haus V 2KM-24: 5.5
Haus V 3K-24: 6.4
Haus V 3KM-24: 6.6
Haus Plus V 3KM-24: 9.5
Haus V 5K-48: 8.5
Haus V 5KM-48: 9.7

Environment

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operating Temperature

-10°C to 50°C

Storage Temperature

-15°C to 60°C
