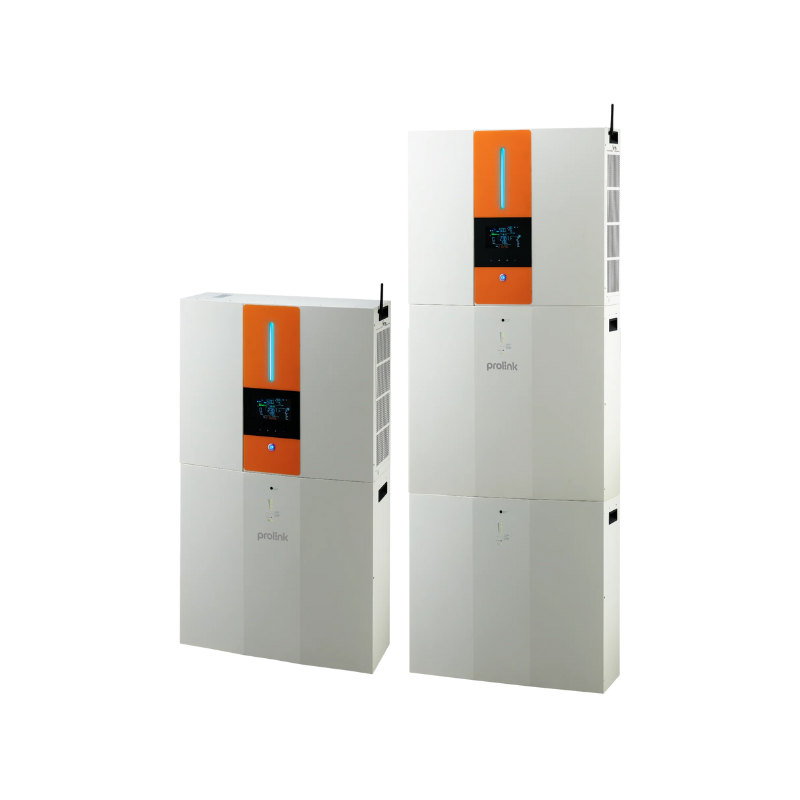

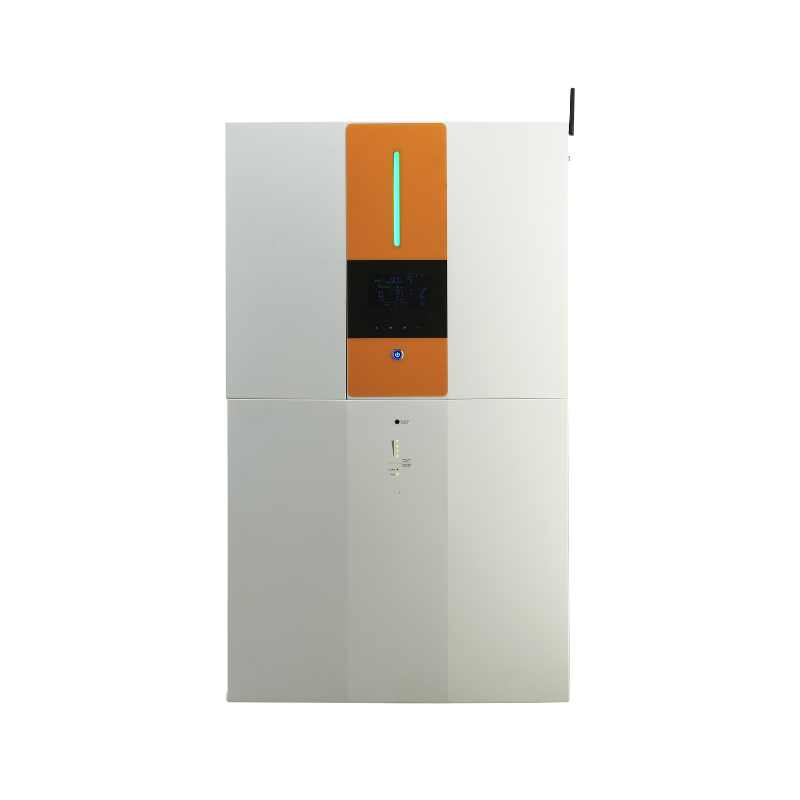

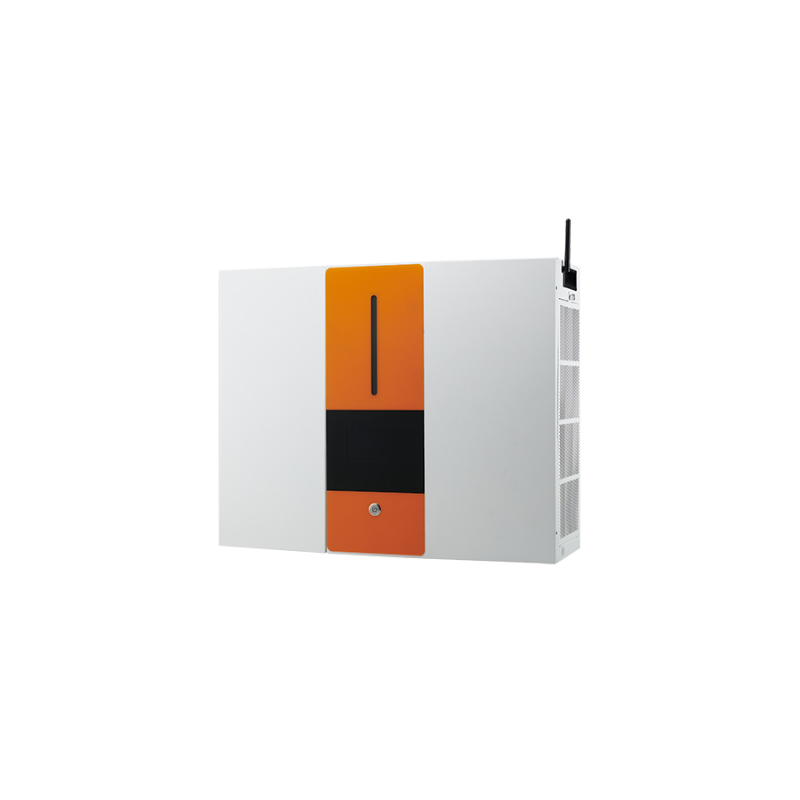

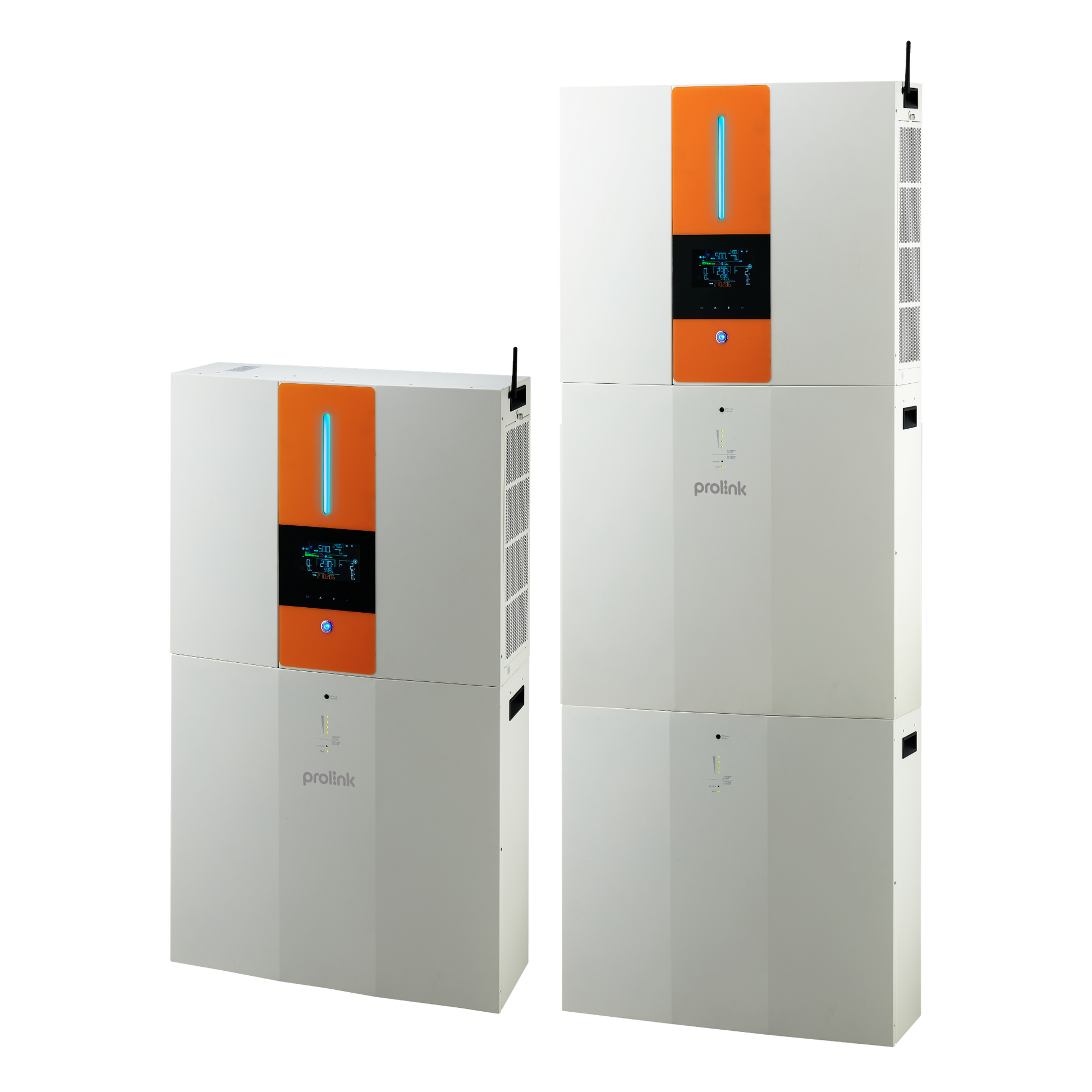

Prolink ESS510 Energy Storage System Lumenion 510 – 5.5KW
Key Features
- Pure sine wave output
- Built-in anti-dust kit
- USB on-the-go function
- Generator compatible
- Built-in Wi-Fi for mobile monitoring
Description
The Lumenion 510 is a 5.5KW on-grid inverter with 5KWh Lithium-ion battery.
• 5.5KW On-grid inverter with 5KWh Lithium-ion battery
• Pure sine wave output
• Built-in Wi-Fi for mobile monitoring (iOS/Android App is available)
• Supports USB On-the-Go function
• Built-in BMS communication
• Built-in communication ports (USB/RS232/Dry-contact)
• Programmable multiple operation modes
(Grid-tie, O-grid and Grid-tie with backup)
• Built-in timer for various modes of operation
• Selectable high power charging current
• Built-in anti-dust kit
• Lithium Iron Phosphate (LFP) cell
• Battery cycle life 8000 at 25 OC
• Saleable battery expansion up to 10 modules
• Support wall mounted and standalone installation
Features
 |
Pure sine wave output |
|---|---|
 |
LCD display |
 |
Lithium Iron Phosphate (LFP) cell |
Intelligent Battery Features
 |
Built-in BMS CommunicationProvides advanced monitoring and management to lithium-ion battery in the prevention of overcharging and protection against under-voltage and high temperatures of short circuits. |
|---|---|
 |

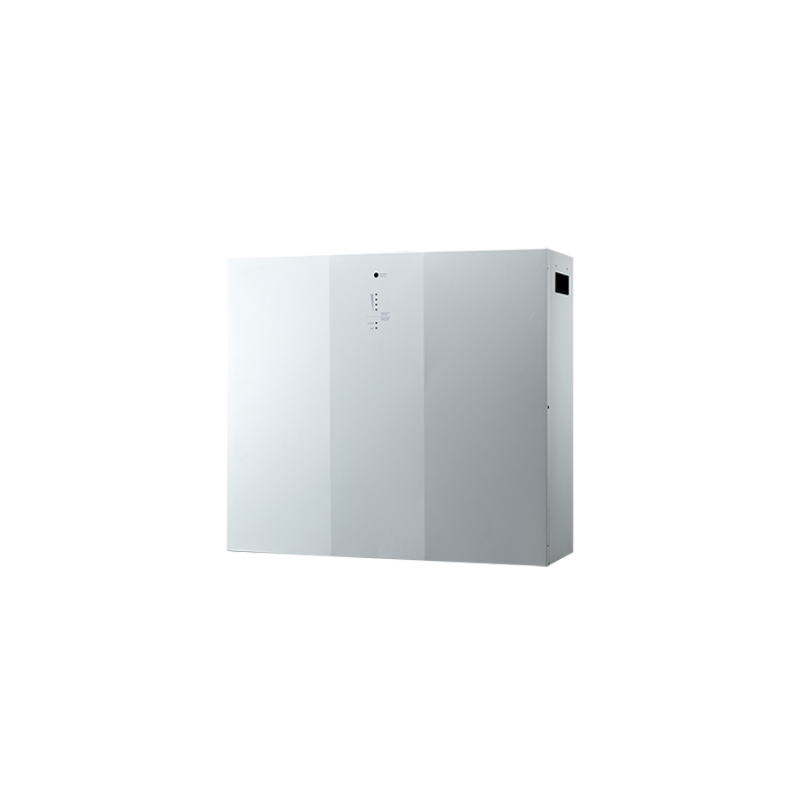

Scalable Battery ExpansionMax. 10 pcs of battery modules. |
 |
Selectable High Charging PowerBattery charging current are adjustable to suit various battery capacities. |
Pure Sine Wave Output
Provides clean and consistent pure sine wave power that improves equipment’s performance and efficiency.
Built-In Wi-Fi for Mobile Monitoring
Enjoy the convenience of monitoring the system data from mobile app anytime and anywhere.
USB On-The-Go Function
Allows for updating firmware on the inverter, and downloading of history and events for analysis on the USB drive.
 |
Programmable Multiple Operation ModesSelect between Grid-tie, off-grid and grid-tie with backup to suite application and scenarios. It also comes with built-in timer for various modes of operation. |
|---|---|
 |
Built-In Anti-Dust KitHelps to filter dust sucked in by the cooling fan and allows for easy regular maintenance so that the system can perform at optimum efficiency in a harsh environment. |
Specifications
| Maximum PV Input Power | 6500W |
|---|---|
| Rated Output Power | 5500W |
| Maximum Charging Power | 2880W |
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 116 VDC / 150 VDC |
| MPP Voltage Range | 120 VDC ~ 450 VDC |
| Number of MPP Trackers / Maximum Input Current | 2 / 2 x 13 A |
| Nominal Output Voltage | 208/220/230/240 VAC |
| Output Voltage Range | 184 – 264.5 VAC |
| Max. Output Current | 23.9A |
| Maximum Conversion Eciency (DC/AC) | 96% |
| European Efficiency @ Vnominal | 95% |
| AC Start-up Voltage / Auto Restart Voltage | 120 – 140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 170 -280 VAC |
| Maximum AC Input Current | 40 A |
| Nominal Output Voltage | 208/220/230/240 VAC |
| Efficiency (DC to AC) | 93% |
| Nominal DC Voltage | 48 VDC |
| Maximum Charging Current | 100 A |
Physical
| Dimension, D x W x H (mm) | 214 x 621 x 500 |
|---|---|
| Net Weight (kgs) | 25 |
