Prolink ESS810A Lumenion 810A – 8KVA
Key Features
- Pure sine wave output
- Built-in Wi-Fi for mobile monitoring
- Built-in anti-dust kit
- USB on-the-go function
- Generator compatible
Description

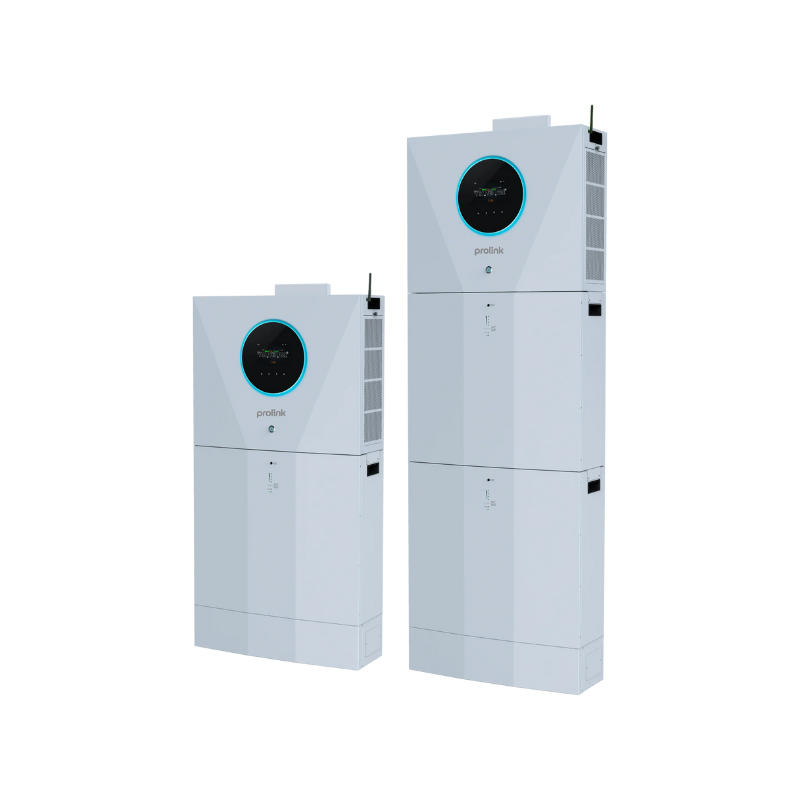

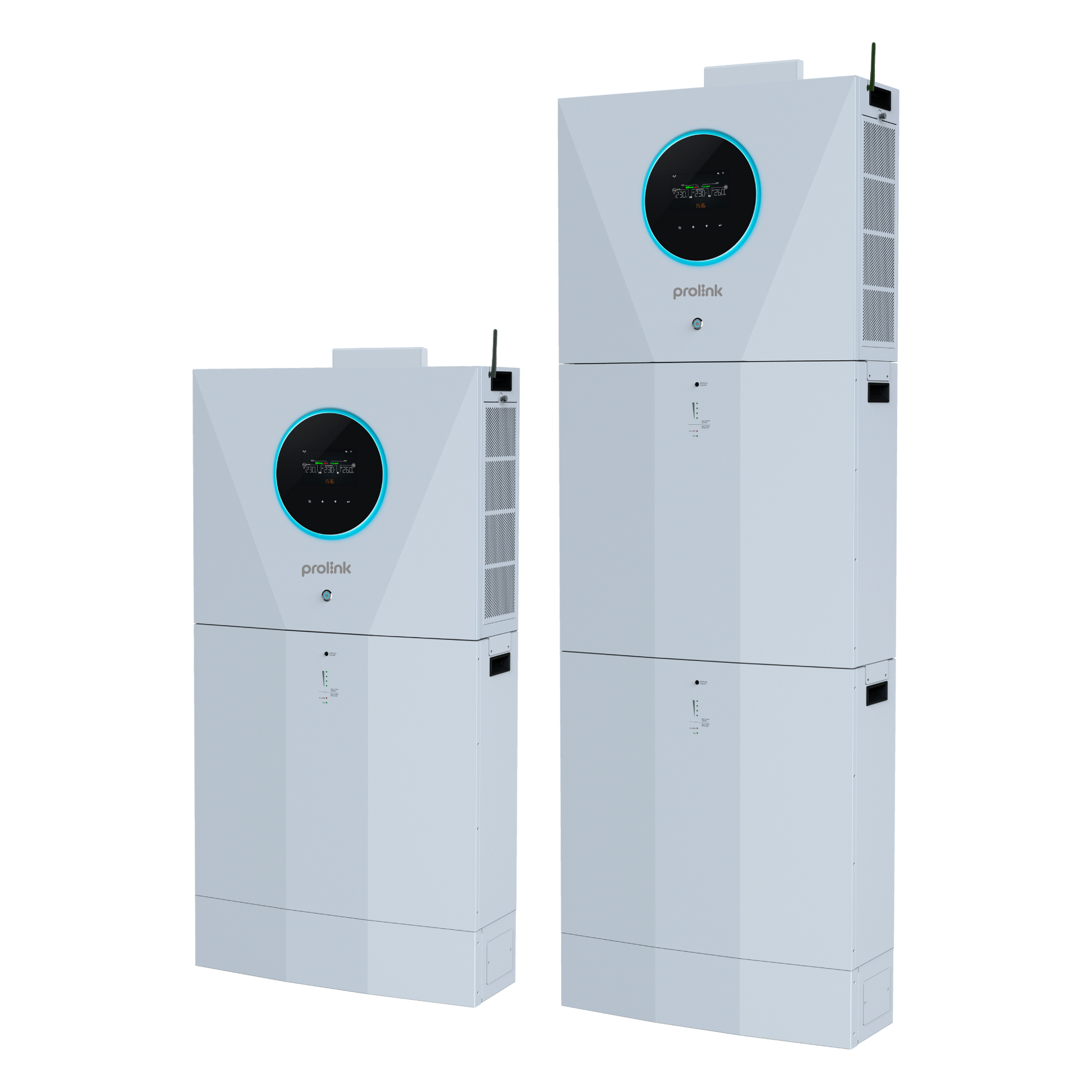

The Lumenion 810A is a 8KW Hybrid inverter with 5KWh Lithium-ion battery.
• 8KW O-grid (Hybrid) inverter with 5KWh Lithium-ion battery
• Pure sine wave output
• Built-in Wi-Fi for mobile monitoring (iOS/Android App is available)
• Supports USB On-the-Go function
• Built-in BMS communication
• Built-in communication ports (USB/RS232/Dry-contact)
• Generator compatible
• Configurable AC/PV output usage timer and prioritization
• Selectable input voltage range for personal computers
and home appliances
• Selectable high power charging current
• Built-in anti-dust kit
• Lithium Iron Phosphate (LFP) cell
• Battery cycle life 8000 at 25 OC
• Saleable battery expansion up to 10 modules
• Support wall mounted and standalone installation
Features
 |
Pure sine wave output |
|---|---|
 |
LCD display |
 |
Lithium Iron Phosphate (LFP) cell |
Intelligent Battery Features
 |
Built-in BMS CommunicationProvides advanced monitoring and management to lithium-ion battery in the prevention of overcharging and protection against under-voltage and high temperatures of short circuits. |
|---|---|
 |

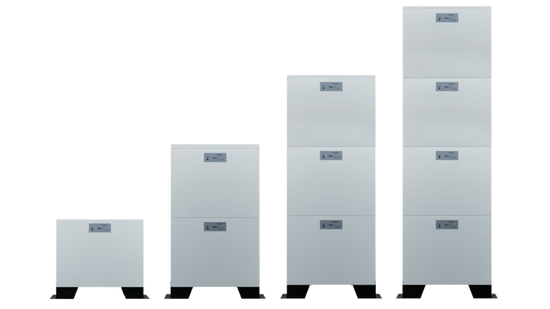

Scalable Battery ExpansionMax. 10 pcs of battery modules. |
 |
Selectable High Charging PowerBattery charging current are adjustable to suit various battery capacities. |
Pure Sine Wave Output
Provides clean and consistent pure sine wave power that improves equipment’s performance and efficiency.
Built-In Wi-Fi for Mobile Monitoring
Enjoy the convenience of monitoring the system data from mobile app anytime and anywhere.
Selectable Input Voltage Range
Two selection modes with narrow input voltage range, suitable for sensitive appliances such as personal computers, and wide input range that can sufficiently support general home appliances.
USB On-The-Go Function
Allows for updating firmware on the inverter, and downloading of history and events for analysis on the USB drive.
 |
Generator CompatibleWorks with generator as a power source and converts perfect power to the connected loads. |
|---|---|
 |
Built-In Anti-Dust KitHelps to filter dust sucked in by the cooling fan and allows for easy regular maintenance so that the system can perform at optimum efficiency in a harsh environment. |
 |
Configurable AC/ Solar output usage time and priority. |
Specifications
| Rated Output Power | 8000VA/8000W |
|---|---|
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Computers); 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 16000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 15 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| Solar Charger type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Range @ Operating Voltage | 90 ~ 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maxmum Solar Charge Current | 150A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 150A |
| Dimension, D x W x H (mm) | 214mm (D) x 621mm (W) x 500mm (H) |
| Net Weight (kgs) | 25kg |
| Compliance Safety | IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3 |
