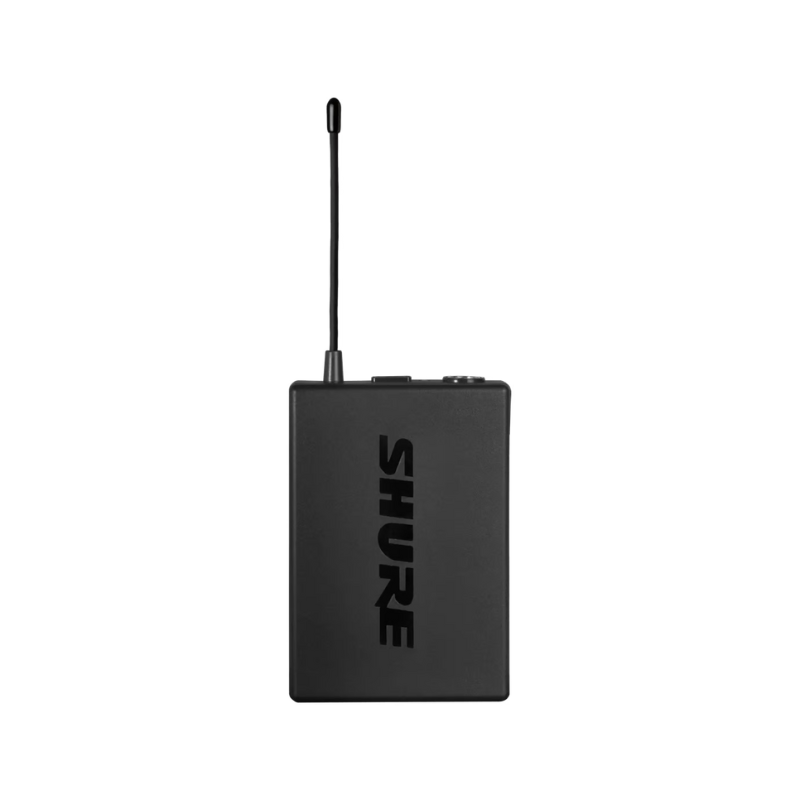

Shure SVX1 Bodypack Transmitter
Description
Description
The SVX1 Bodypack Transmitter can be used with the SVX Lavalier or Headworn Wireless system. 10mW maximum RF output (country dependent); 8 RF channels selected by a switch; on/off switch with power LED; TA4F audio input connector; input gain switch and gain potentiometer; operates on two AA batteries for up to 10 hours; supplied with PG185 lapel microphone or PG30 headworn microphone.
Features
Specifications
| Transmission | Analog |
|---|---|
| Input impedance | 22 kΩ |
| High Density Mode | No |
| Functionality | Transmitter |
| Frequency Diversity | No |
| Switchable RF power | No |
| Detachable Antennas | No |
| Audio Mute | No |
| Form Factor | Bodypack |
| Battery Life Alkaline | 10 H |
| Bodypack HxWxD Without Antenna | 108 x 64 x 19 g |
| Weight | 90 g |
