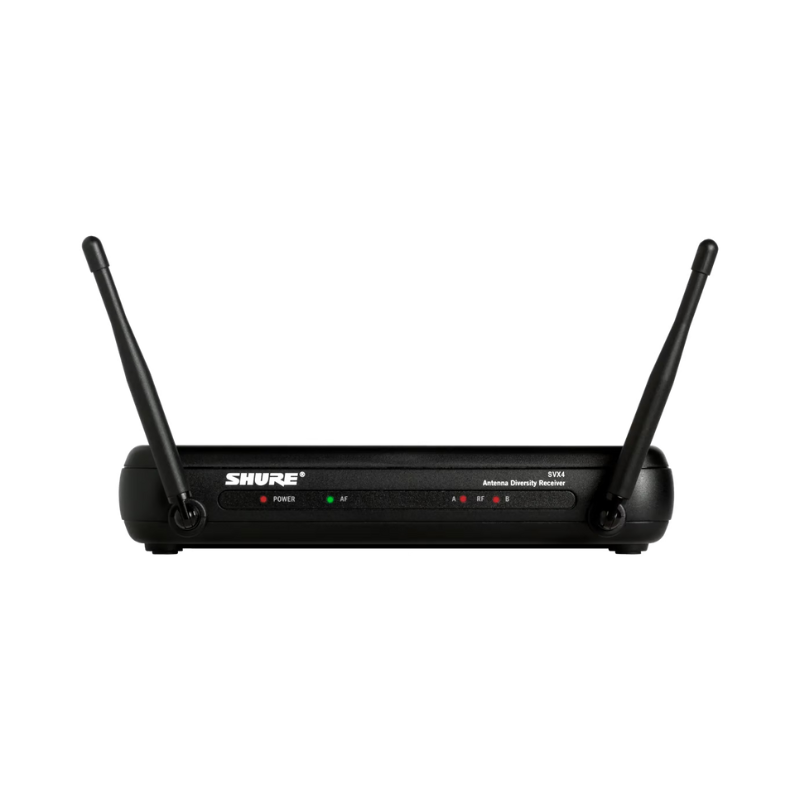

Shure SVX4 Diversity Receiver
Key Features:
- Up to 8 selectable channels
- Up to 4 compatible systems*
- Antenna Switching Diversity
- Adjustable Squelch Level
- 1/4″ and XLR output
- Available with Handheld and Lavalier system packages
Description
Description
8 RF channels selected by a switch; balanced XLR mic level output – adjacent Mic/Line switch provides 20 dB of additional gain; unbalanced ¼” female phone jack instrument level output; squelch adjustment potentiometer; power LED, Audio LED; RF Antenna A LED, RF Antenna B LED; operates on 12 to 18 Vdc with an operating current draw of 130 mA; supplied with an AC-to-DC power supply (country dependent).
Features
Specifications
| Transmission | Analog |
|---|---|
| Type of Power Supply | External |
| Receiver Housings | Molded ABS |
| Bias via BNC | No |
| High Density Mode | No |
| Interference Detection | No |
| Remote Control | No |
| Number of Compatible Systems Per Frequency Band | Up to 4 |
| DANTE-Enabled Products | No |
| Detachable Antennas | No |
| Network Ability | No |
| Software Control | No |
| Logic | No |
| Cascade | No |
| Receiver Type | Single |
| Line Mic Switch | No |
| Power Requirements | 12 to 18 V DC @ 130 mA |
| Phantom Power Protection | No |
| Weight | 270g |
