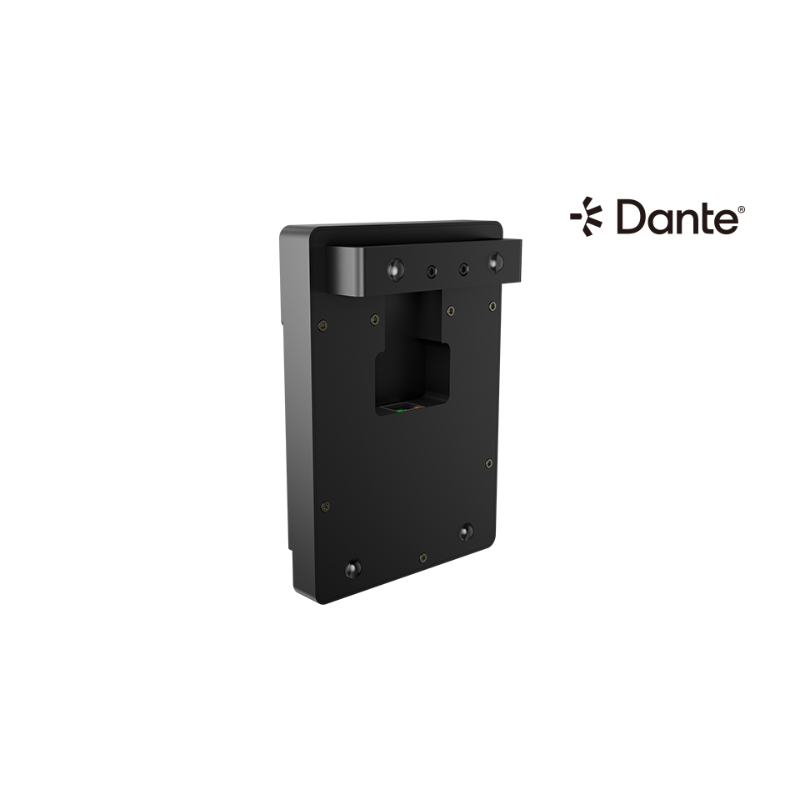

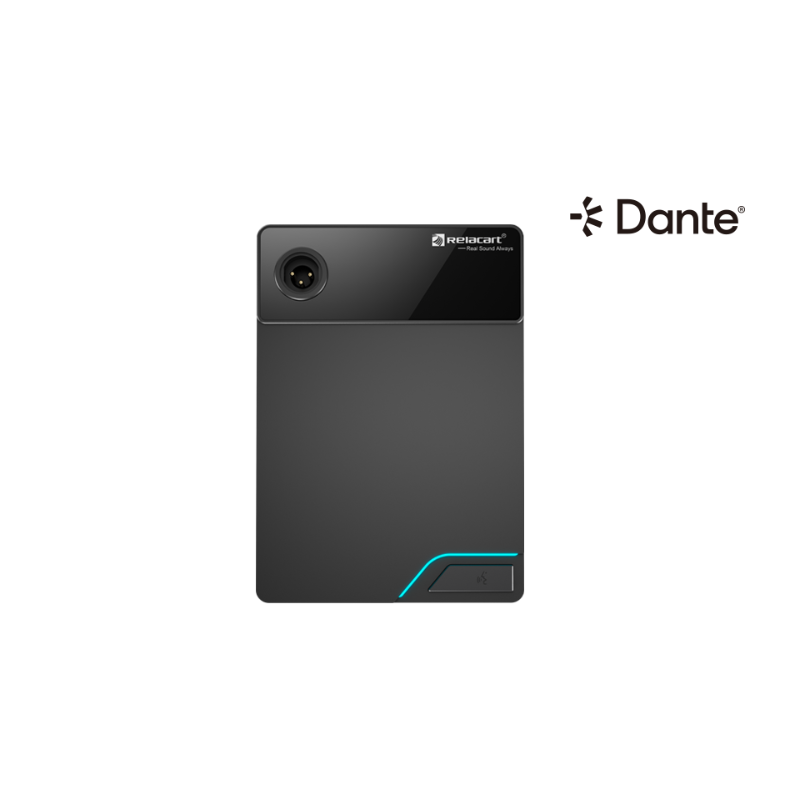

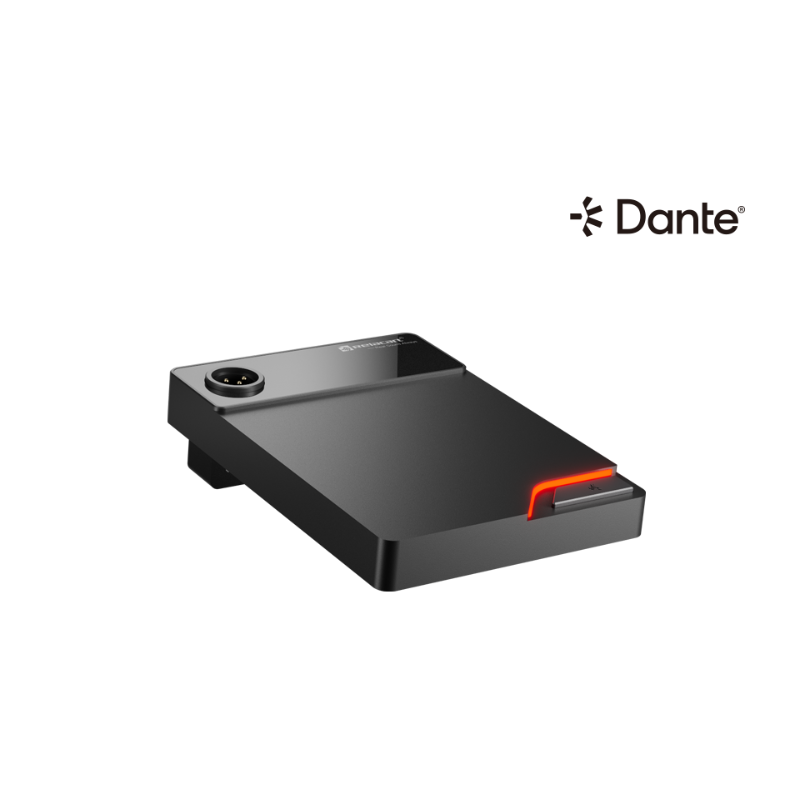

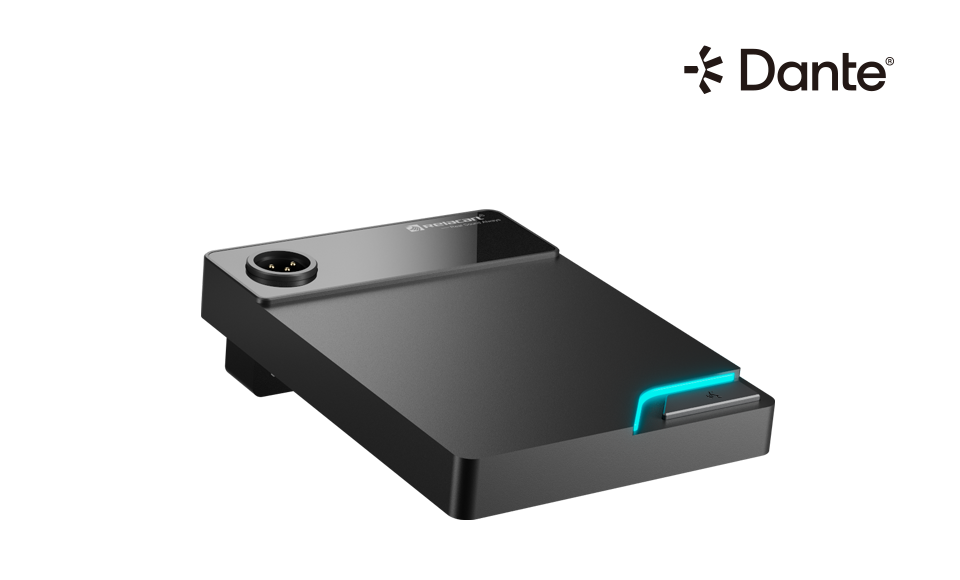

Relacart TDN1 Microphone Desk Stand with Dante Network Output
Description
Description
TDN1 desk stand allows Dante technology to be used with any phantom-powered condenser gooseneck microphone with a 3-pin XLRM-type output. The desk stand is designed for surface-mount applications such as high-quality sound reinforcement, conferencing, distance learning and other demanding sound pickup applications.
- Frequency Response：20-20,000 Hz
- Input Impedence：2.2 kΩ
- Phantom Power：48V DC
Features
Specifications
| Frequency Response | 20-20,000 Hz |
|---|---|
| Low Frequency Rolloff | 150Hz, 18 dB/octave |
| Gain Adjustment | Six level of adjustable gain |
| Input Impedence | 2.2 kΩ |
| Maximum Sound Input Level | 0dBu @ +20 dB gain |
| Signal-To-Noise Ratio | 65dB，1KHz at 1 Pa |
| Power Requirements | PoE IEEE802.3af standard (Power consumption 1.5W) |
| Power Consumption | 2.3W |
| Phantom Power | 48V DC |
| Output Interface | Standard Ethernet interface |
| Input Connector | 3-pin XLRM-type |
| Output Connector | RJ45 |
| Cable Quality | Shielded CAT5 or CAT6 recommended |
| Transmission Speed | 100 Mbps |
| Dimensions (mm) | 170(L) x 120.3(W) x 48.5(H) |
| Weight | 720g |
