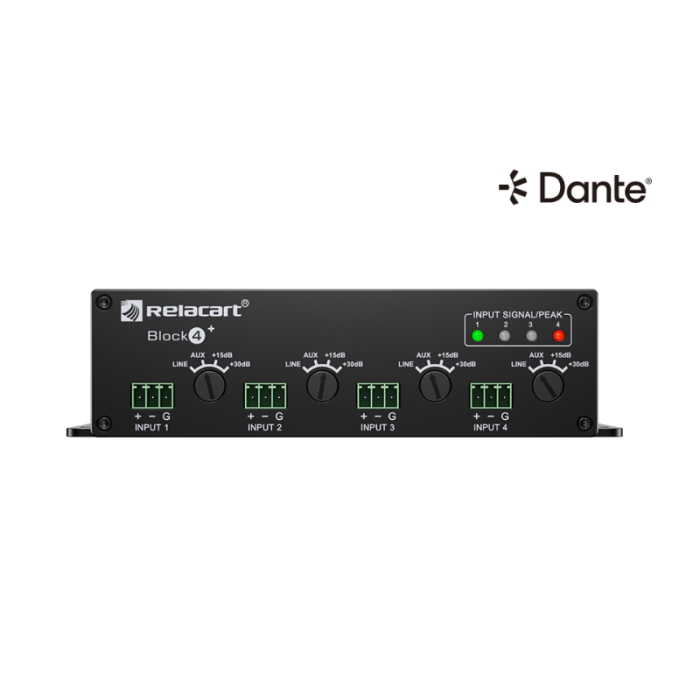

Relacart Block 4+ Dante Networked Audio Interface
Description
The Block 4+ is a powerful and easy-to-use Dante audio converter, offering 4 microphone inputs (with 48V phantom power) / 4 line-in / 4 aux-in and 4 line out. It provides a complete audio processing solution for optimizing specific venues and systems. Ideal for Dante audio applications, as well as for upgrading traditional audio systems.
- Output Level: 18dBV
- Frequency Response: 20HZ-20KHZ±2dB
- Dynamic Range: 110dB
Features
Specifications
| Power Supply | PoE IEE802.3af standard,DC 12V/1A DC power supply |
|---|---|
| Audio Interface | Standard 3.81mm pitch plug type connection terminal |
| Audio Frequency Response | 20Hz~20KHz +2dB |
| Dynamic Range | 98dB, Analog to Analog |
| Input Channel Gain |
|
| Input Impedance | 2.2kΩ |
| Output Level | +16dBV MAX |
| Output Impedance | 600Ω |
| Output Channel | AUX: +10dBV |
| Power Consumption | 4W |
| DANTE Network | RJ45 connector, CAT5E or CAT6 cable over 100 Mbps |
| Dimension | 166 x 83 x 44.6 (mm) |
| Weight | 0.5kg |
