Relacart MIXX12 Digital Mixer with Dante Interface
Key Features:
- Multiple Analog Inputs and Outputs
- Locking Function
- Easy To Operate
- Support Multi Platform Control
Description
Description

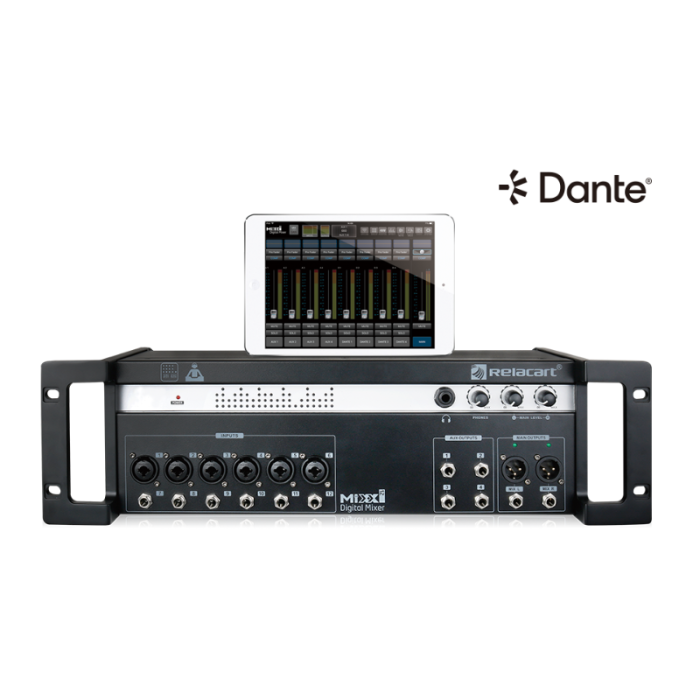

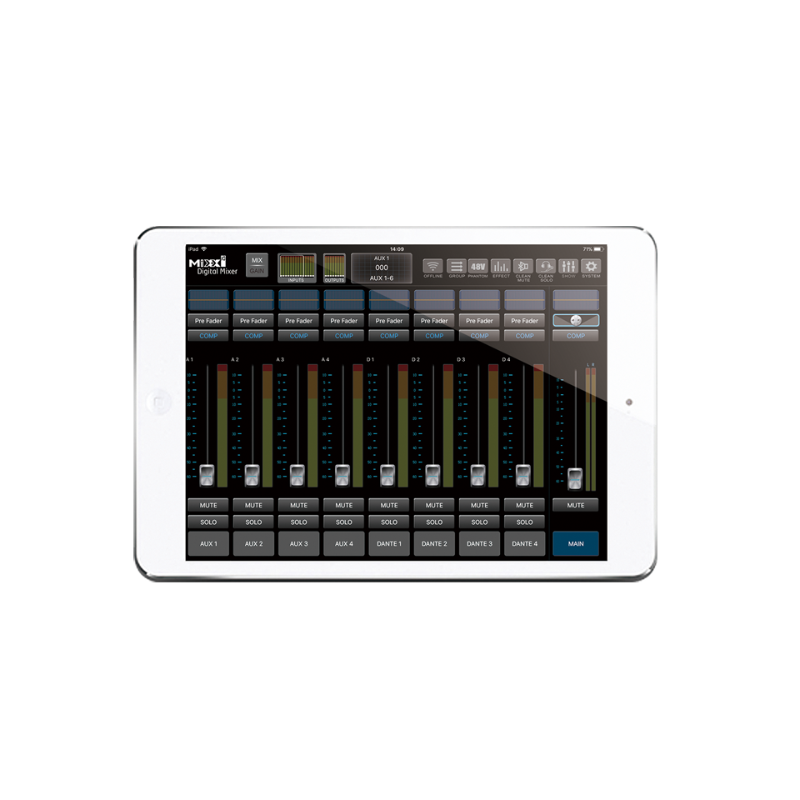

MIXX12 Digital Mixer is a 12 inputs and 6 outputs digital wireless control mixer, is a new mixer through the tablet computer application control, can support all iPad, Windows 8 tablet. Using Wi-Fi to connect, anywhere in the wireless network within the scope of control. With 12 channels of broadcast quality microphone amplifier (including 4 modular jack), main and aux outs. Adopt high performance 40 bit floating-point digital signal processor, 24 bit AD/DA converter. Built-in effects processor, compression and limiter, gate plug-ins, parametric equalizer. Wireless control mode makes you can walk between the stage and the crowd.
- Sampling Rate：24bit，48kHz
- Frequency Respond：20 Hz to 20 kHz +/–1 dB
- Latency：1.5 ms
Features
Functional Features:
| Multiple Analog Inputs and Outputs | 12 analog inputs, 6 analog outputs, 4 Dante inputs, 4 Dante outputs. |
|---|---|
| Locking Function |
Program or snapshot call out, security locking function.
|
| Easy To Operate | Easy to operate software control, quick to use, novel and fashionable. Say goodbye to the dense and difficult control panel of the traditional mixer. |
| Support Multi Platform Control | Built in digital mixer that can be controlled by WIFI, iPad, iPhone and Windows. Up to 10 control devices can be used at the same time. |
Specifications
| Sampling Rate | 24bit，48kHz |
|---|---|
| Frequency Respond | 20 Hz to 20 kHz +/–1 dB |
| Latency | 1.5 ms |
| T.H.D | <0.005% |
| Noise-Mic Input To Main Output |
|
| Maximum Input Level | Channel input AUX Input (Lotus): +25dBu |
| Input Crosstalk (Adjacent Channel) | <–120 dB @1 kHz |
| S/N | 93dB One channel and main fader at unity (A-weighted) |
| Dynamic Range | 110dB One channel and main fader at unity (A-weighted) |
| CMRR | >70 dB @1 kHz |
| Input Impedance | 3.3kΩ（XLR Balance）; 30 kΩ（1/4″） |
| Gain | 0 to 60 dB |
| Output Impedance | 600Ω (XLR Balance) |
| Max Output Level | +21 dBu (XLR Balance) |
| Power Supply | DC 12V-15V （3.5A） |
| Dimension (mm) | 488（L） x 132（H） x 191（D） |
| Weight | Approximately 4kg |
