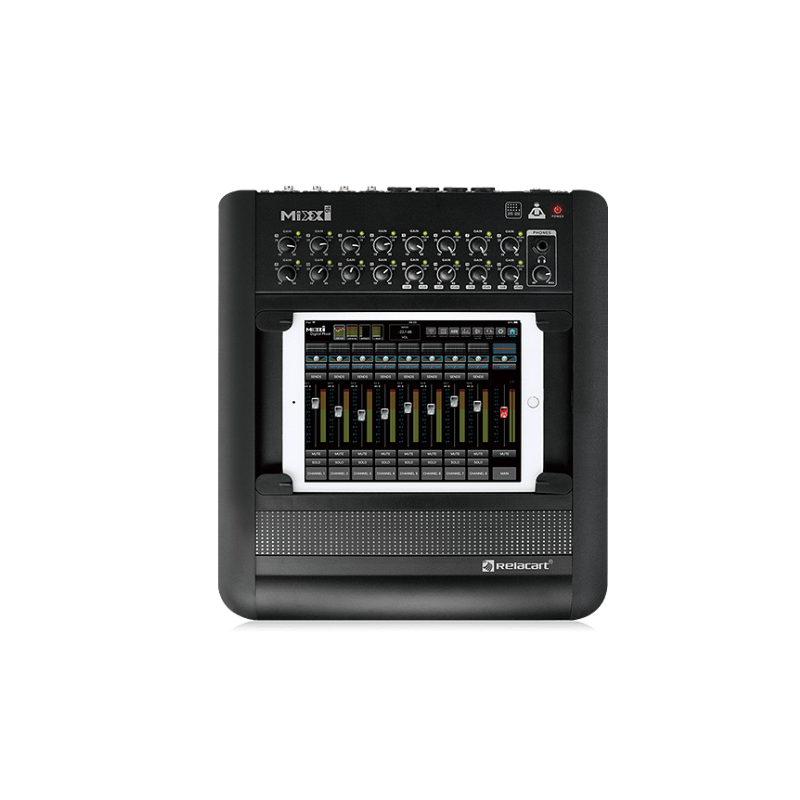

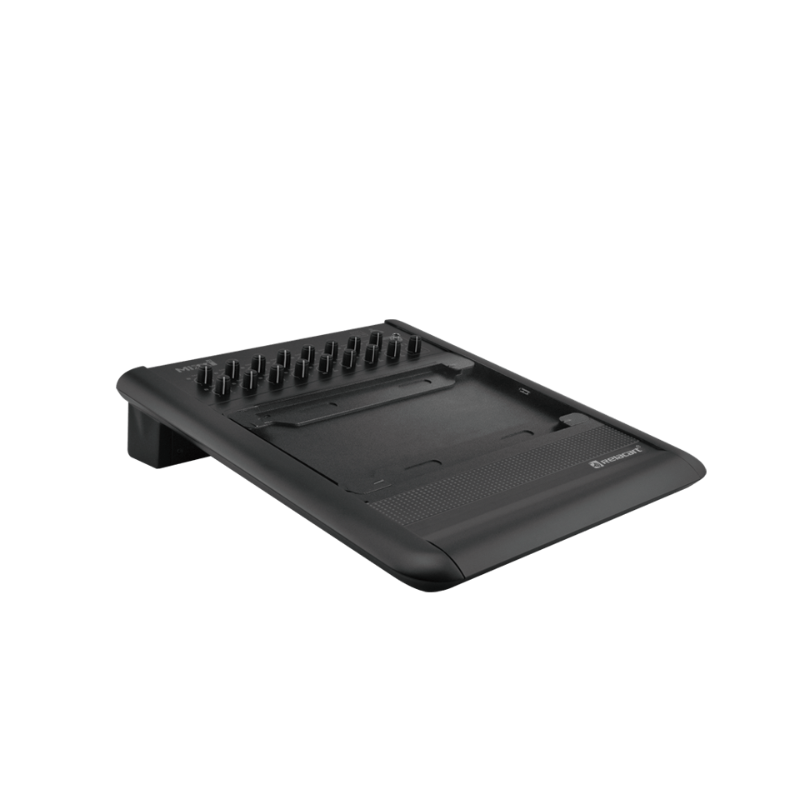

Relacart MIXX16 Digital Mixer
Key Features:
- 48V Phantom Power Supply
- DSP Audio Effector
- Reverberation Sharing
- Seamless Debugging Of Audio Equipment
- Adjustable Level
- Custom Name Settings
Description
Description

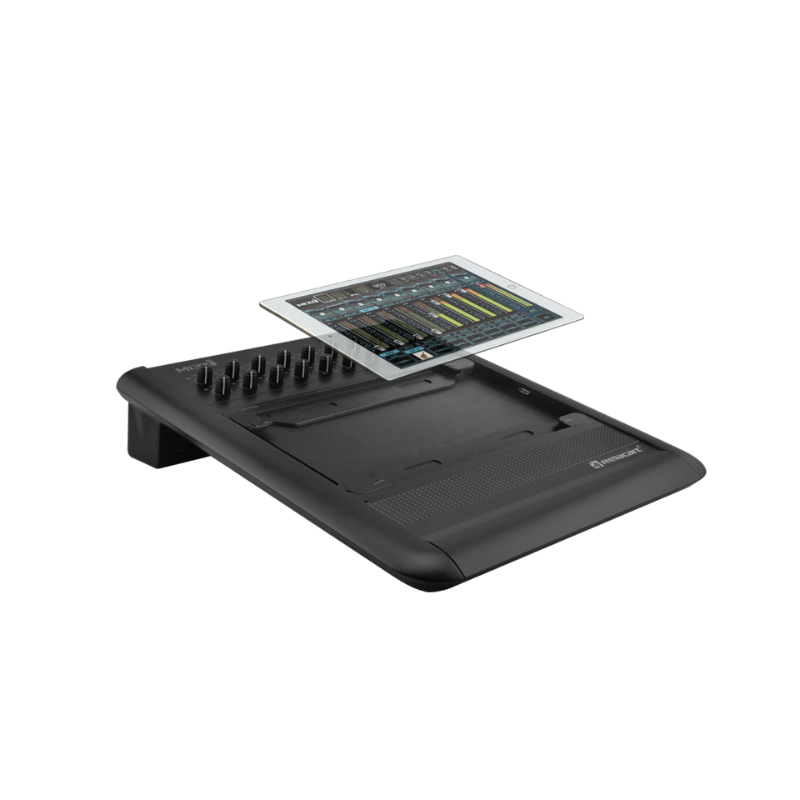

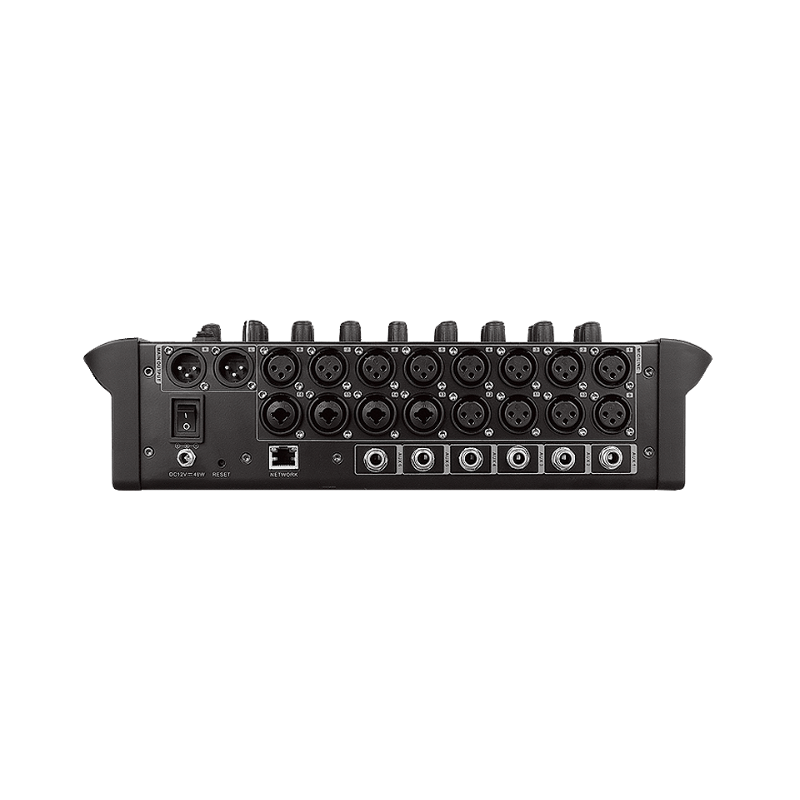

MIIXX16 Digital Mixer is a 16 input and 8 output digital wireless control mixer, is a new mixer through the tablet computer application control, can support all Apple iOS tablet, Windows 8 tablet. Using Wi-Fi to connect, anywhere in the wireless network within the scope of control. With 16 channels of broadcast quality microphone amplifier (including 4 modular jack), 2 main output, 6 auxiliary output. Adopt high performance 40 bit floating-point digital signal processor, 24 bit AD/DA converter. Built-in effects processor, compression and limiter, threshold, parametric equalizer… Wireless control mode makes you can walk between the on the stage and the crowd.
- Sample Rate：24bit, 48kHz
- Frequency Respond：20 Hz to 20 kHz +0/–1 dB
- T.H.D. ：<0.005%
Features
Functional Features:
| 48V Phantom Power Supply | The+48V phantom power supply of each channel can be switched separately. |
|---|---|
| DSP Audio Effector | The channel interface can control a powerful DSP effector. The input channel includes four sections of PEQ, high pass filtering, compression and threshold. The main channel and auxiliary channel include 31 sections of graphical EQ and limiter. The effector channel includes reverberation and delay. |
| Reverberation Sharing | Global shared reverberation (reverse) and delay effect (delay). |
| Seamless Debugging Of Audio Equipment | Seamless access, the target audio can be adjusted anywhere in the network domain, and you can go directly to the stage to adjust your own monitoring. Access control can give the stage musicians the ability to adjust their own monitoring. |
| Adjustable Level | The console interface can adjust the control of each channel, including solo, mute, audio and video, fader, and complete level meter. |
| Custom Name Settings | Each channel can edit its own name and icon for easy identification. Icons can be imported from the picture library. |
Specifications
| Sample Rate | 24bit, 48kHz |
|---|---|
| Frequency Respond | 20 Hz to 20 kHz +0/–1 dB |
| System Delay | 1.5 ms |
| T.H.D. | <0.005% |
| Noise-Mic Input To Main Output |
|
| Input Crosstalk (Adjacent Channel) | <–120 dB @1 kHz |
| S/N | 93dB Single channel-Max fader (A weighted) |
| Dynamic Range | 110dB Single channel-Max fader (A weighted) |
| CMR | >70 dB @1 kHz |
| Input Impedance | 30 kΩ（1/4″） |
| Gain | 0 to 60 dB （XLR）;–20 to 40 dB （1/4″） |
| Output Impedance | 600Ω (XLR Balance) |
| Max Output Level | +21 dBu (XLR Balance) |
| Power Supply | DC 12V-15V （3.5A） |
| Dimension (mm) | 359（L） x 85.5（H） x 411（D） |
| Weight | Approximately 4.2kg |
