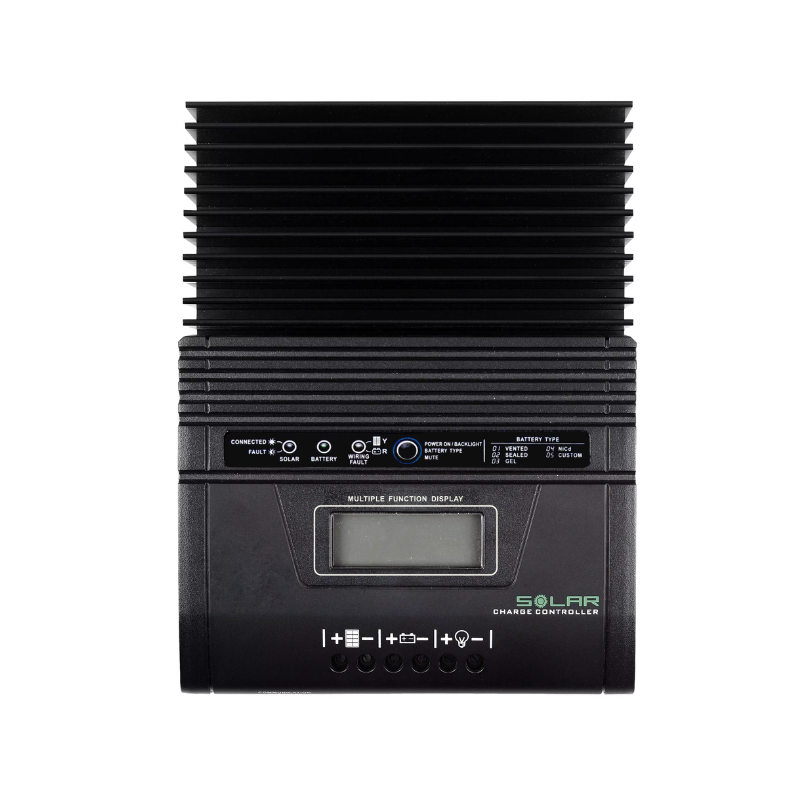

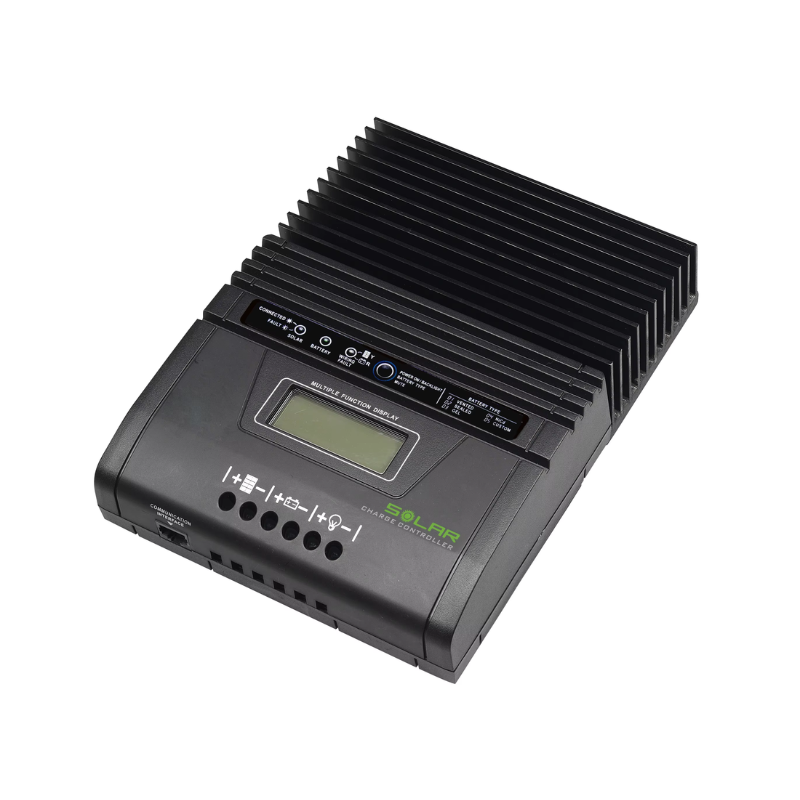

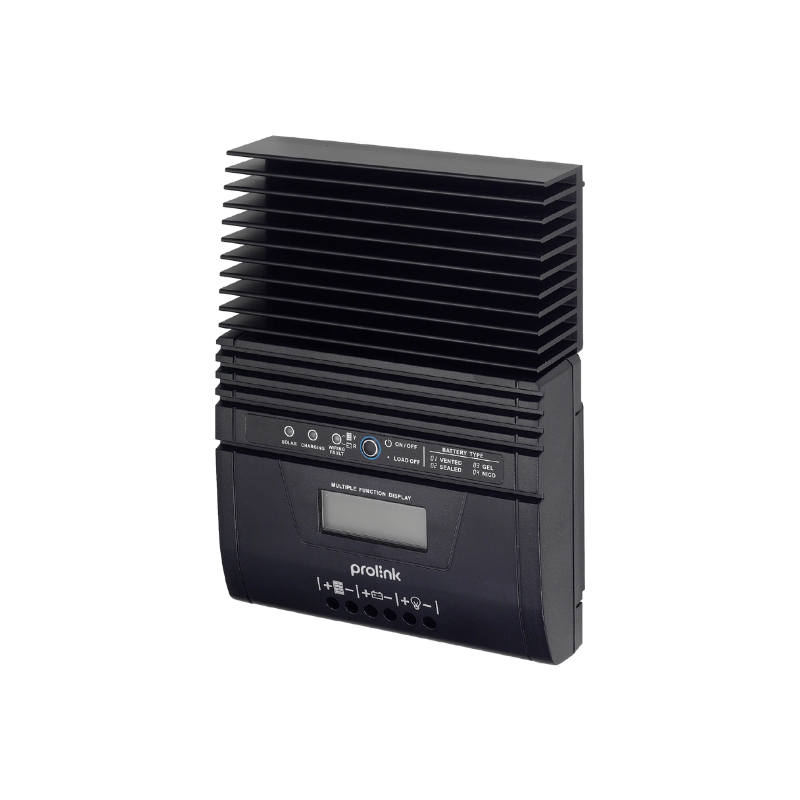

Prolink MPPT Series
Key Features
- Intelligent Maximum Power Point Tracking technology
- DSP controller
- Reverse polarity protection
- Automatic load-detection
Description
The MPPT series provides up to 98% output efficiency and ensures maximum power point solar charging to your battery bank.
• Intelligent Maximum Power Point Tracking technology
• Built-in DSP controller with high performance
• Automatic battery voltage detection (Only for 600W and 3KW)
• Battery temperature sensor (BTS) automatically provides temperature compensation (Only for 3KW)
• Three-stage charging optimizes battery performance
• Automatic load-detection
• Multifunctional LCD displays detailed information
• Reverse polarity protection for solar panel and battery
• Overcharge and overload protection
• Suitable for di erent battery types
Features
 |
3-stage charging |
|---|---|
 |
LCD display |
 |
Advanced Protection |
Suitable For Different Battery Types
Works with various battery types such as sealed lead acid, vented, Gel, AGM or NiCad battery.
3-Stage Charging
Prevents overcharging to increase overall battery service life.
Auto Load Detection
Power conversion will commence regulating once the controller detects load connection
Multifunctional LCD Display
Useful information such as load level and battery voltage are shown at a glance through the LCD display.
Advanced Protection
|
|
Overcharge And Overload ProtectionRegulate the amount of current reaching the solar battery to prevent overcharging and overloading. |
|---|---|
|
|
Reverse Polarity ProtectionPrevent damage to power supplies and electronic circuits in the event of a reverse voltage on batteries and solar panels. |
Specifications
| MPPT Range @ Operating Voltage |
|
|---|---|
| Maximum PV Array Open Circuit Voltage |
|
| Maximum PV Array Power |
|
| Maximum Current |
|
| Nominal Battery Voltage |
|
| Connected Battery Type |
|
| Maximum Charging Current |
|
| Maximum Efficiency | 98% |
| Charging Method | Three stages: bulk, absorption,and floating |
| Overload Protection | > 110% : audible alarm |
| Overcharge Protection | Yes |
| Polarity Reversal Protection @ Solar Cell & Battery |
Yes |
| LCD Panel | LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions |
| LED Display | Three indicators for solar, charging, and load status |
| IP Protection |
|
Physical
| Dimension, D x W x H (mm) |
|
|---|---|
| Net Weight (kgs) |
|
Environment
| Humidity |
|
|---|---|
| Operating Temperature |
|
| Storage Temperature |
|
| Altitude | 0 ~ 3000 m |
