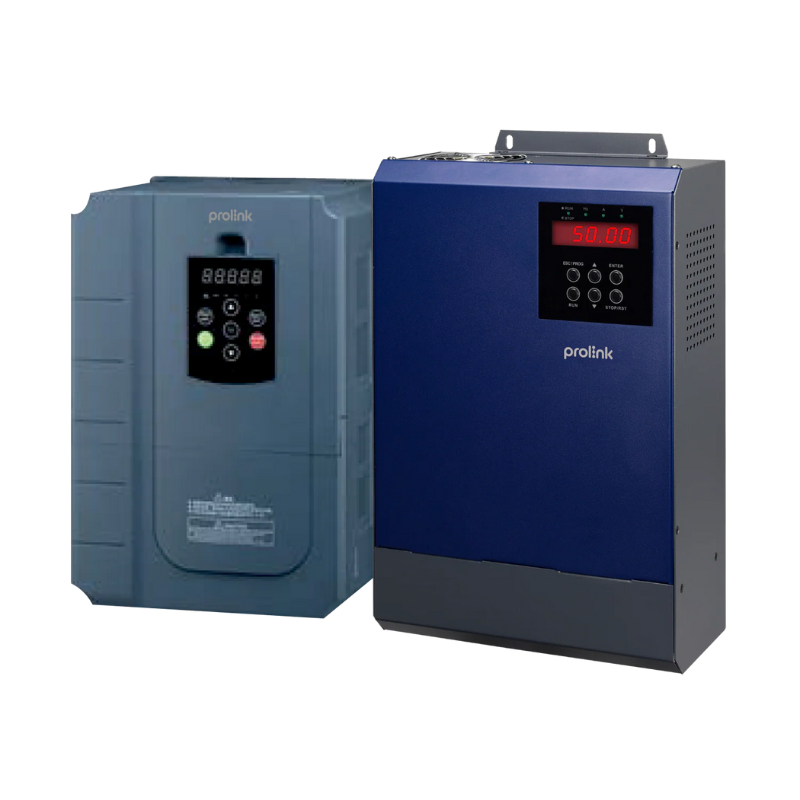

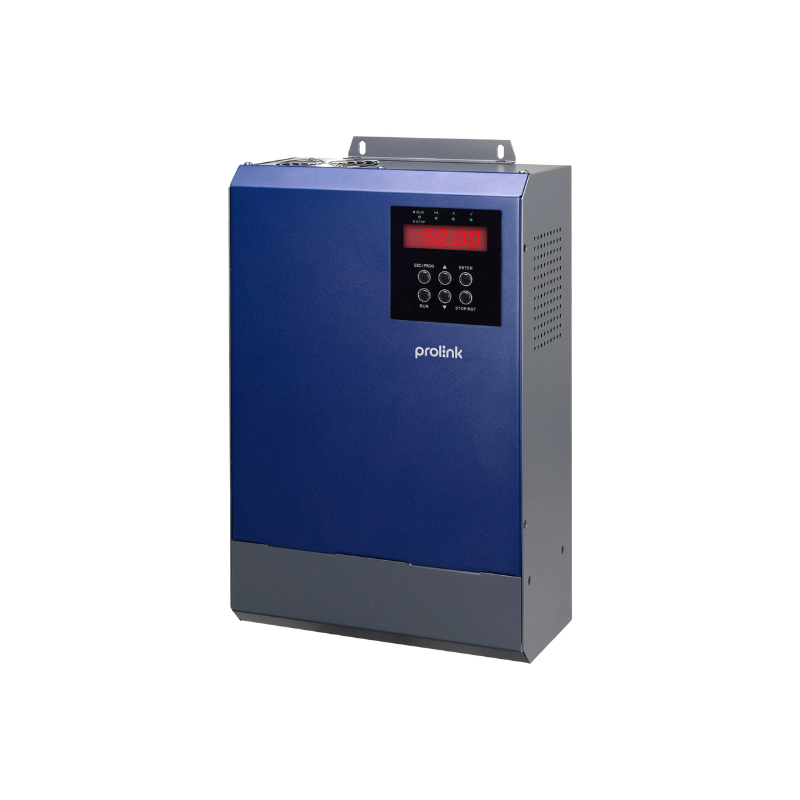

Prolink Venture Series
Key Features
- Built-in MPPT solar charger
- Single phase or three phase asynchronous motor
- Full protection and self-diagnosis function
- Soft start function
Description
The Ventures Series integrates the latest MPPT technology to maximize power harvested from solar panels so as to drive water pump.
• Built-in MPPT solar charger
• Supports single phase or three-phase asynchronous motor depending on models
• Supports single phase AC input when PV energy is not sufficient (only for Aspire 2.2KW LS model)
• Built-in full protection and self-diagnosis
• Soft start function prevents water hammer effect and extends system lifecycle
• Comprehensive LEDs and display screen for real-time system status
• Optional remote panel available
• Remote monitoring software via RS-485 communication
Features
 |
Built-in MPPT solar charger |
|---|---|
 |
LCD display |
 |
RS-485 communication port |
Comprehensive Display Screen
Real-time system status such as the input voltage and output nominal voltage are shown at a glance through the display screen.
Soft Start Function
Prevents water hammer effect and extends system lifespan by reducing water pressure through gradually increase or decrease water pump speed.
Advanced Protection
Keeps your equipment from over-voltage, under-voltage, over-current, surge, over-temperature and short circuit protection
Dual Power Inputs
Compatible with mains voltage or generator power.
Specifications
| Output Rated Power |
|
|---|---|
| Nominal DC Voltage / Maximum DC Voltage |
|
| Start-up Voltage |
Venture 2.2KM (LS): 120VDC Venture 2.2KM, Venture 7.5KM, Venture 11KM, Venture 15KM: 250VDC |
| MPPT Voltage Range |
Venture 2.2KM (LS): 120 – 420 VDC Venture 2.2KM, Venture 7.5KM, Venture 11KM: 250 – 780VDC Venture 15KM: 500 – 600VDC |
| Number of MPP Trackers |
1 |
| Input Voltage | Venture 2.2KM (LS): 220/230/240 VAC (-15% ~ +10%) |
| Input Frequency | Venture 2.2KM (LS): 47 Hz ~ 63 Hz |
| Nominal Voltage |
Venture 2.2KM (LS): 220/230/240VAC or 3 x 220/230/240VAC Venture 2.2KM, Venture 7.5KM, Venture 11KM, and Venture 15KM: 3 x 380/400/415/440VAC |
| Efficiency | > 97% |
| Nominal Output Current |
|
| Motor Type | Venture 2.2KM (LS): Single-phase (default)/ Three-phase
Venture 2.2KM, Venture 7.5KM, Venture 11KM, and Venture 15KM: Three-phase asynchronous motor |
| Frequency Precision | ±0.2% |
| Full Protection | Phase lost, dry pumping, motor locked, weak sunlight, over-voltage, under-voltage, over-current, surge, over-temperature and short circuit protection |
| Communication Port | RS-232/RJ45 (RS-485 communication) |
| IP Protection | IP20 |
Physical
| Dimension, D x W x H (mm) | Venture 2.2KM (LS), Venture 2.2KM, Venture 7.5KM, Venture 11KM: 110 x 230 x 342
Venture 15KM: 205 x 218 x 320 |
|---|---|
| Net Weight (kgs) |
|
Environment
| Humidity | < 95% RH (Non-condensing) |
|---|---|
| Operating Temperature | -20°C~45°C at 100% full load, 46°C~60°C power derating |
