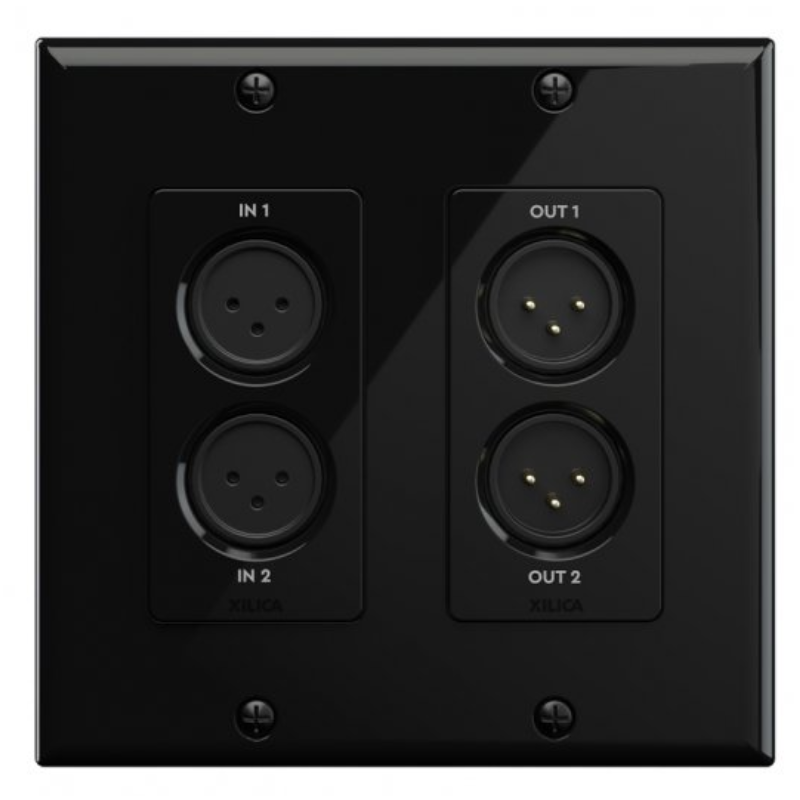

Xilica – Gio XLR

• Transform existing public spaces, such as cafeterias and lobbies, into capable meeting venues for all-hands and training events with the ability to connect an external audio system.
• Utilize networked AV infrastructure for applications where analog audio products are ubiquitous, such as in convention centres, ballrooms and hospitality.
• Enable expansion of room audio systems in lecture theatres and auditoria for special events.

Specification :

• Power-over-Ethernet

  IEEE 802.3af, Class 0

• Power Consumption

  5W maximum

• Operating Temperature

  32-104⁰F (0-40⁰C)

• Ethernet

  (1) RJ45 with Link and Speed indicators

• Audio Networking

  Dante™ with AES67-compliance
  44.1 kHz, 48kHz supported sample rates

• Audio Inputs

  (2) Three-pin Neutrik XLR (balanced)
  Mic/Line level (software-selectable)
  48V Phantom Power (software-selectable)
  Up to +45dB in 5dB steps, adjustable per input

• Audio Outputs

  (2) Three-pin Neutrik XLR (balanced)
  Mic/Line level (software-selectable)
  0dB to -60dB, 1dB increments (adjustable per output)

• Controls, Service & Indicators

  LED indicator for Power and Status
  Momentary button for network discovery and reset

• Finish

  Black, gloss

• Weight

  0.4 lbs / 0.2 kg

• Dimensions (HxWxD)

  4.2″ x 3.5″ x 2.0″ (106.7 x 88.9 x 50.8mm)

• Mounting

  Mounts into single-gang EU/UK electrical box, or US dual-gang electrical box with included mud-ring.

• Compliance

  FCC Part 15B, CE, RoHS Directive, WEEE

• Warranty

  Xilica Three Year Limited Warranty

• Part Number(s)

  2200-003-0402
