Samsung VM55T-E Video Wall Display

Description

FEATURES

Always-on, space-saving solution with extreme-narrow bezels

SSee an immersive and dependable viewing experience, 24/7 with Samsung’s VMT-E series. The display’s slim depth and 500 nit brightness ensures highly visible images and legible messages in a wide range of locations from shopping malls to lobbies, meeting rooms, control rooms and more.

Transform any space with high impact visuals

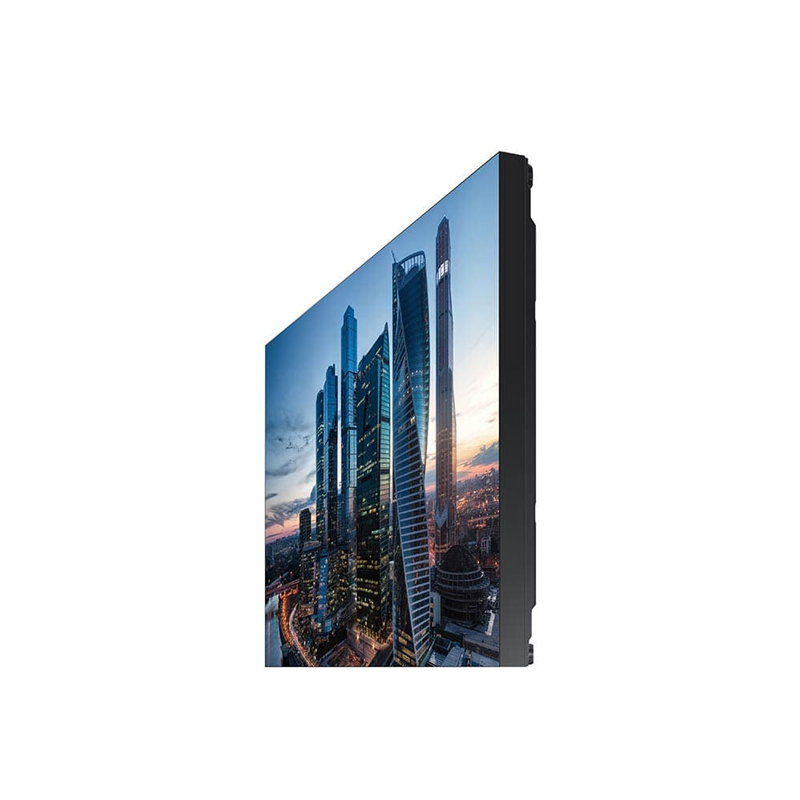

The slender design and 70.4mm cabinet depth provide flexibility for installation and an extreme-narrow 1.8mm bezel-to-bezel width creates a seamless picture opening endless possibilities for designing a captivating visual experience.

View content from any angle

Wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear details and vivid colors regardless of where the screen is located.

Vibrant images in any light

Non-glare panels evenly distribute light across the screen to maintain vibrant and accurate content. Combined with a high contrast ratio and 24/7 operation, visuals are vivid and eye-catching any time of the day or night — regardless of ambient light.

Image enhancement

Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, making details easier to see.

Comprehensive calibration to fit your needs

Multi-step factory tuning provides uniform brightness and color. Users can also fine-tune advanced settings with free powerful Color Expert Pro software. For quick and simple calibration, Color Expert Pro Mobile enables white balance adjustments for displays up to 5×5 using a mobile camera.

Advanced presentation, simplified operation

Utilizing daisy chain design through DisplayPort 1.2 or HDMI ports enables the display to present UHD content on multiple screens without an external graphic card. Samsung’s UHD Signage Player Box streamlines functionality by combining the media player and content management software.

Industry standard certified

IP5x certified, the VMT-E series is dust-resistant and able to withstand a range of environmental conditions without needing to prepare additional enclosure. The display packaging also passed a rigorous 4-step test in an ISTA-certified laboratory designed minimizes possible damage during delivery.

Spesifications

Panel

Diagonal Size
55″

Type
IPS

Resolution
1920*1080 (Full HD)

Pixel Pitch(mm)
0.63mm(H)*0.63mm(V)

Active Display Area(mm)
1209.6 * 680.4 mm

Brightness(Typ.)
Max 500 nit

Contrast Ratio
1200:1

Viewing Angle(H/V)
178/178

Response Time(G-to-G)
8ms

Display Colors
8 bit – 16.7M

Color Gamut
72%

Operation Hour
24/7

Haze
28%

Display

Dynamic C/R
500,000:1

H-Scanning Frequency
65kHz ~ 70kHz

V-Scanning Frequency
47Hz ~ 63Hz

Maximum Pixel Frequency
77MHz

Connectivity

Input

RGB
DVI-D, Display Port 1.2

Video
HDMI 2.0 (2)

HDCP
HDCP 2.2

Audio
Stereo mini Jack

USB
Only F/W upgrade

Output

RGB
DP1.2(Loop-out)

Audio
Stereo mini Jack

External Control
RS232C(in/out), RJ45

External Sensor
Detachable type(IR)

Power

Type
Internal

Power Supply
AC 100 – 240 V, 50/60 Hz

Power Consumption

Max[W/h]
220

Typical[W/h]
90

BTU(Max)
825.0

Sleep mode
less than 0.5W

Off mode
less than 0.5W

Mechanical Specification

Dimension (mm)

Set
1211.5 x 682.3 x 70

Package
1398 x 844 x 257

Weight (kg)

Set
19.4

Package
27.6

VESA Mount (mm)
600 * 400 (mm)

Bezel Width (mm)
0.9mm (Even)

Operation

Operating Temperature
0 ℃ ~ 40 ℃

Humidity
10 % ~ 80 %

Feature

Key Features
Extreme Narrow Bezel

Orientation
N/A

Remote Control
N/A

Special Features
ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 28%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video Wall(15×15(OSD)), Video Wall Daisy Chain(10×10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(168hrs Clock Keeping) IP5X tested, EMC Class A

Certification

Safety
UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1

EMC
FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) VCCI CISPR32:2016 KCC (Korea) :KN32, KN35 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS CISPR32:2015 CCC(China) :GB9254-2008, GB17625.1-2012
IP Rating
IP5X

Accessory

Included
Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries, External IR

Optional

Stand
N/A

Mount
WMN-55VD

Specialty
N/A

Media Player

Media Player
Signage player box

Ultimate flexibility in creating a video wall with slim depth and extreme narrow bezel.
