Relacart SM2 Shotgun Condenser Microphone
Key Features:
- Lightweight All-Metal
- Multiple Power Options
- High-Pass Filter
- Ultra-Low Noise Circuit
- Super-Cardioid
- XLR Output
Description

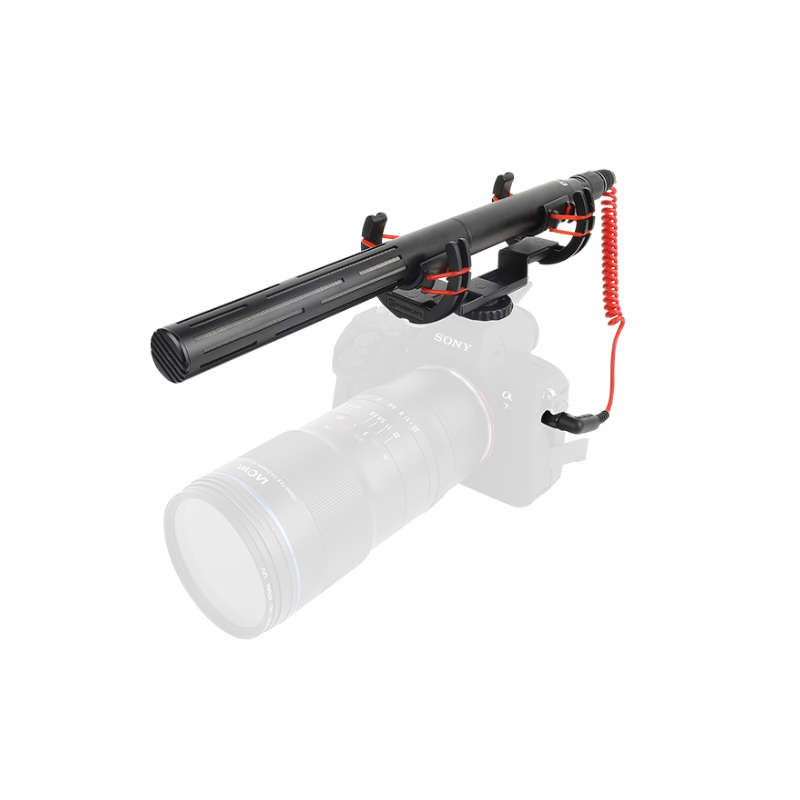

SM-2 is a shotgun condenser microphone specially designed for photography, interviews and recording. Adopts sound pickup interference principle and long sound collecting pipe design, It can provide high sensitivity and super-cardioid directional characteristics, resist radio frequency interference effectively and pickup more clear vocal sound. SM-2 built-in a 100Hz high-pass filter, which can prevent low-frequency noise effectively such as air conditioning and other environmental noises from being recorded. It can be powered by AA (1.5V) batteries or 48V phantom power for professional audio recorders, cameras and power supplies. Equipped with an anti-vibration frame, which can reduce the hard noise caused by the vibration of the equipment during photography and interview recording, and the attached windshield can minimize the slight wind and popping noise during the recording process.
- Frequency response: 50Hz-20KHz
- Output impedance: 350Ω
- Dynamic range: >110dB
Features
Functional Features:
| Lightweight All-Metal | Metal structure, strong and durable. |
|---|---|
| Multiple Power Options | 48V phantom power or AA (1.5V) battery power. |
| High-Pass Filter | 100Hz high pass filter selection. |
| Ultra-Low Noise Circuit | The circuit has low noise and clean recording. |
| Super-Cardioid | Super-cardioid directional,providing high-quality recording effects. |
| XLR Output | XLR 3-pin socket input and output. |
Specifications
| Microphone Type | Condenser Microphone |
|---|---|

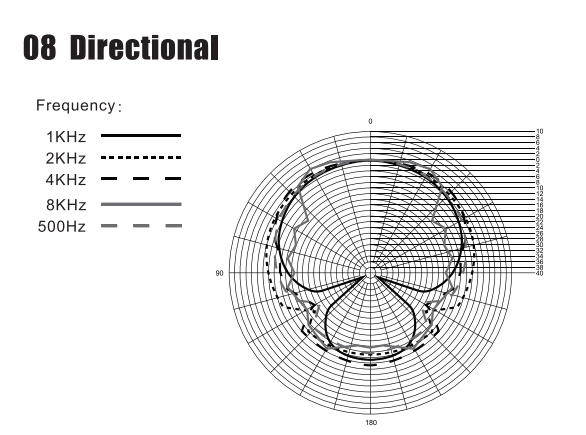

| Directivity | Super Cardioid |

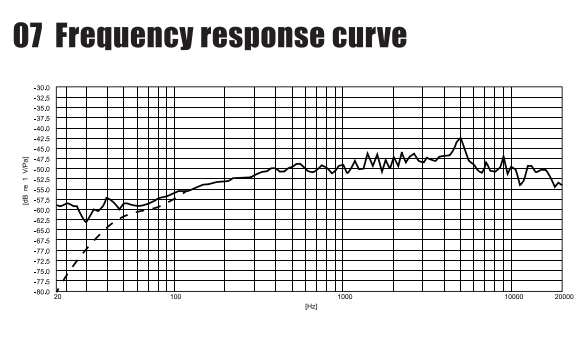

| Frequency Response | 50Hz-20KHz |
| Output Impedance | 350Ω |
| Maximum Input Sound Pressure Level | 130 dB SPL, 1KHz@1%THD |
| Signal To Noise Ratio | 105dB (A weighted), 1KHz@1%THD |
| Dynamic Range | >110dB |
| Sensitivity | 51 dB@1V at 1Pa |
| Switch | Through/High Pass Filter |
| Length | 280mm |
| Weight | 110g |
