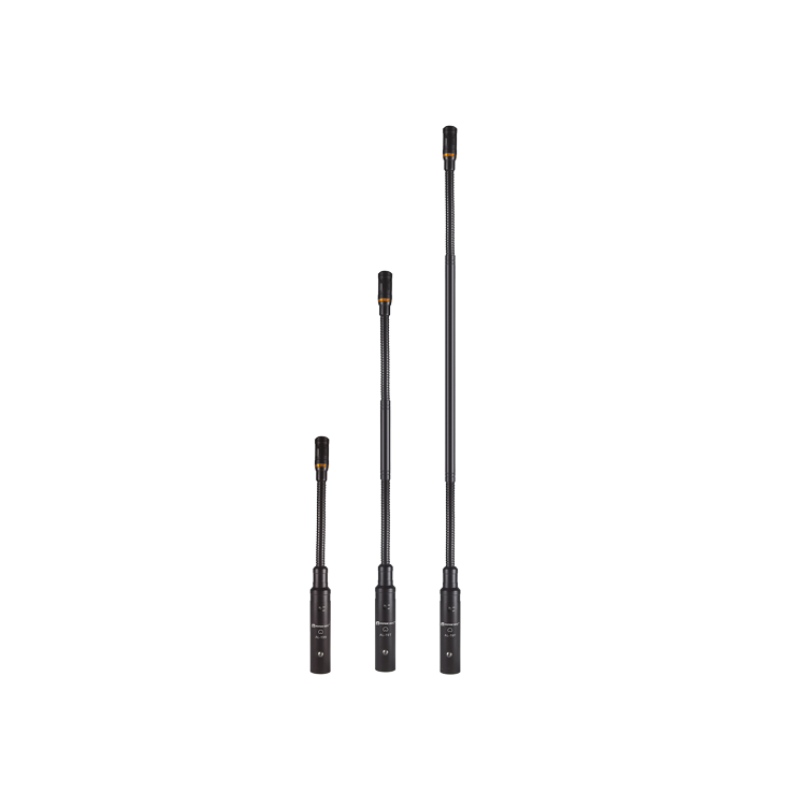

Relacart AL-19F/19T/19N Gooseneck Microphone
Description
Description
AL serie goonseneck microphone is a wide-range miniature condenser microphone with a cardioid polar pattern and an integral low cut switch. It is designed for quality sound reinforcement, professional recording, elevision and other demanding sound pickup applications. The small-diameter, alternating adjustable-length gooseneck design permits highly flexible positioning while maintaining a smooth, well-contoured appearance. An included snap-on foam windscreen effectively reduces wind noise and “popping”.
- Frequency Response: 80Hz-18KHz
- Turn-on sensitivity: -32dB, at 1V at 1Pa
- Signal-to-noise ratio: >68dB, 1KHz at 1Pa
Features
Specifications
| Microphone Type | Condenser Cardioid |
|---|---|
| Frequency Response | 80Hz-18KHz |
| High Pass Filter | 100Hz, 18dB/octave |
| Turn-On Sensitivity | -32dB, at 1V at 1Pa |
| Output Impedance | 200 ohms |
| Maximum Withstand Sound Pressure | 127dB sound pressure, 1KHz at 1% T.H.D. |
| Dynamic Range (Typical) | 110dB, 1KHz at maximum sound pressure |
| Signal-To-Noise Ratio | >68dB, 1KHz at 1Pa |
| Switches | Flat, High Pass Filter |
| Phantom Power | DC12-52V |
| Power Consumption | 5mA (typical) |
| Output Connector | Built-in 3-pin XLR male |
| The Best Distance For Pickup | 10-20cm |
| Size and Weight |
|
| Colour | Black |
