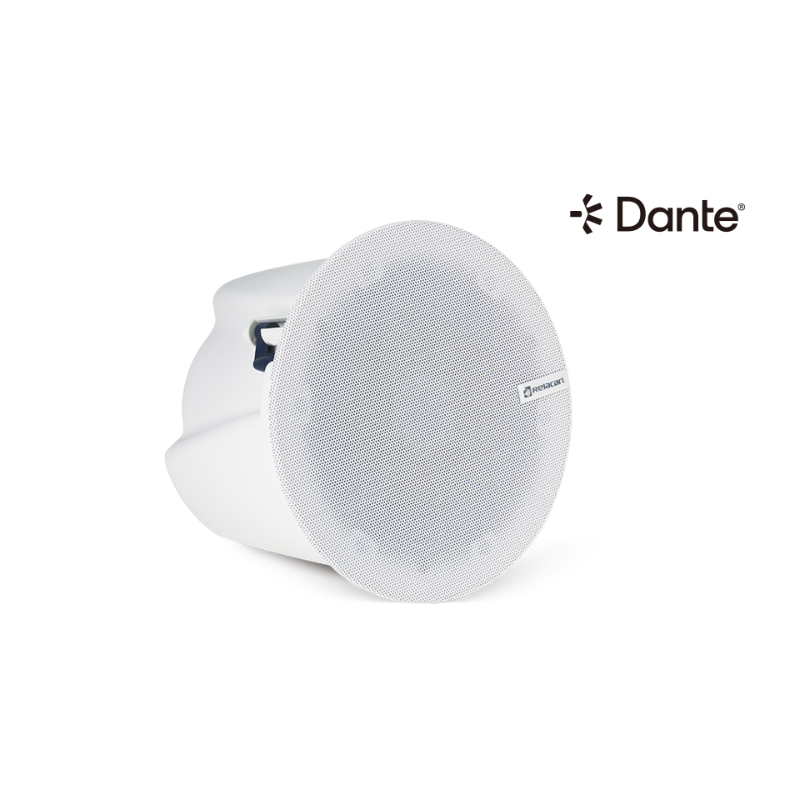

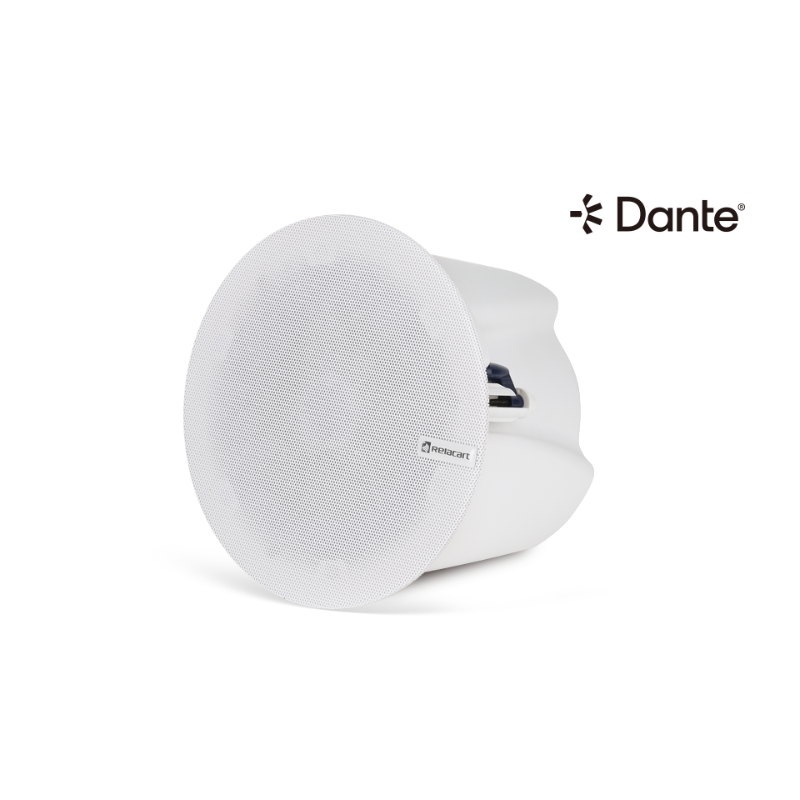

Relacart RDA10 Dante-Enabled 6.25″ Coaxial Ceiling Loudspeaker
Key Features:
- DSP Audio Digital Extension
- PoE Power Supply
- Quick Installation
- Dante Network Audio Protocol
Description
Description
The RDA10 is a cost-effective full-frequency 6.25-inch coaxial ceiling loudspeaker with a Class D digital audio amplifier that delivers up to 30W of power. It has built-in full-band coaxial ceiling loudspeakers that are easy and quick to install using standard bend clips. With its bezel free structure and exquisite slim design, it can be cleverly integrated into the ceiling environment, making it an ideal choice for hotels, conference rooms, shopping malls, educational institutions, hospitals, retail stores, performing arts centers, restaurants, airports, chapels and board rooms.
- Frequency Response(-3dB)：90Hz-16KHz
- Output Power：PoE 10W/PoE+ 20W
- Sensitivity：90dB
Features

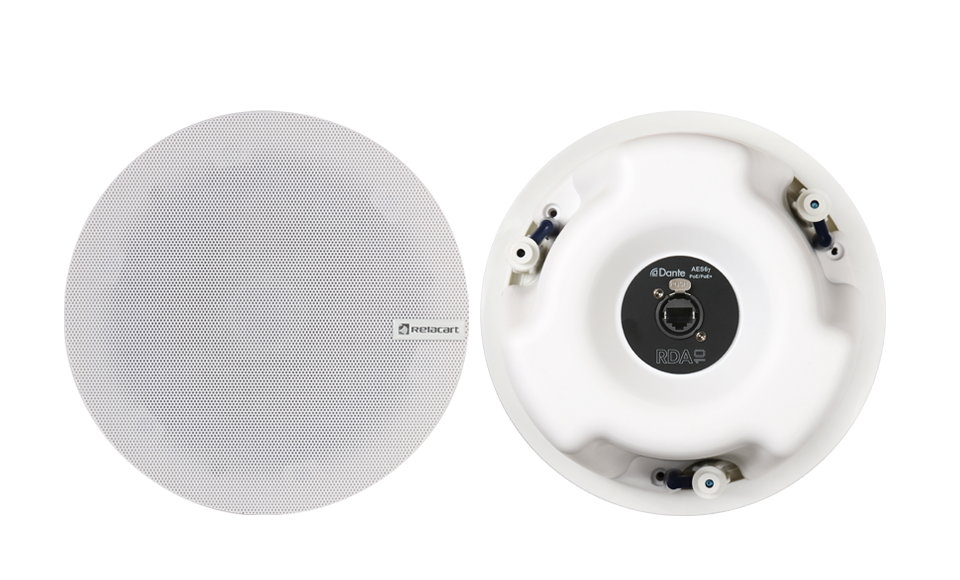

Functional Features:
| DSP Audio Digital Extension | The high-speed DSP chip and self-developed digital audio extension algorithm are used to reduce the noise caused by audio transmission. |
|---|---|
| PoE Power Supply | The latest standard specification for the simultaneous transmission of DATA and electrical power using existing standard Ethernet transmission cables while maintaining compatibility with existing Ethernet systems and users. |
| Quick Installation | It can be installed easily and quickly by using standard bending clamp. The shape adopts a frameless structure and exquisite thin design, which can be cleverly integrated into the ceiling environment, making it a hotel, conference room, shopping center, educational institution, hospital, retail store, performing arts center and other places. |
| Dante Network Audio Protocol | Built-in Dante module communication to achieve network audio signal transmission. The IP address can be automatically assigned through DHCP router, and the signal can be transmitted with Dante audio matrix in the LAN, and a set of digital network sound reinforcement system can be easily established. |
Specifications
| Power Supply Mode | Standard PoE/PoE+ |
|---|---|
| Power Supply Voltage | 37V-57V |
| Input Mode | Dante input |
| Output Power | PoE 10W/PoE+ 20W |
| Frequency Response(-3dB) | 90Hz-16KHz |
| Sensitivity | 90dB |
| Sound Pressure Level Output(-6dB) | 110dB/RMS,113dB/peak |
| Coverage Angle | Horizontal 90°/vertical 90° |
| Socket | RJ45 JACK |
| Installation Opening Size (mm) | Φ190 |
| Size (mm) | 210(W) x 150(D) |
| Weight | About 1.8kg |
