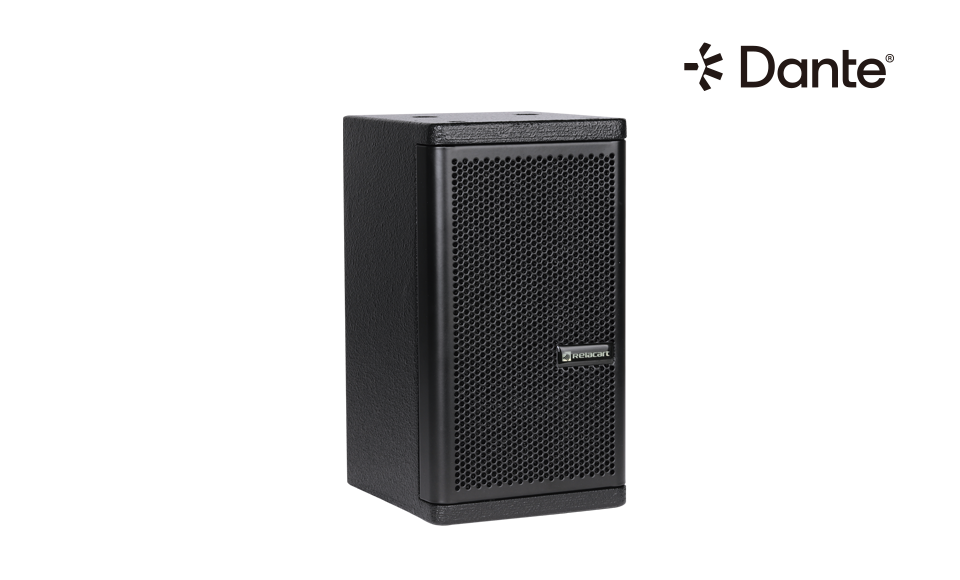

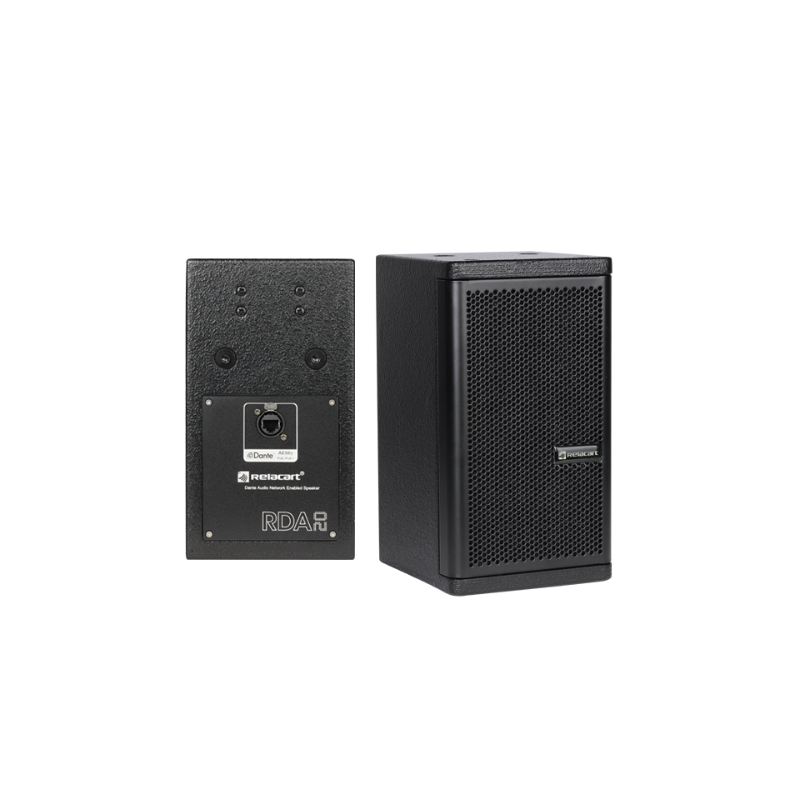

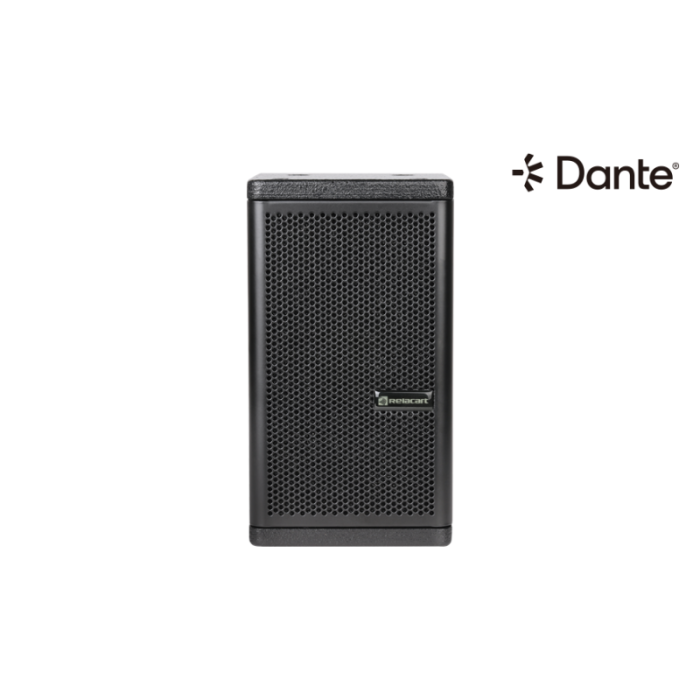

Relacart RDA20 Dante Audio Networked Enabled Speaker System
Key Features:
- Functional Diversification
- Dante Network Mode
- Intelligent IP Allocation
- XLR Socket
Description
Description
The RDA20 is an integrated active full frequency speaker with network transmission and pure digital power amplifier. The speaker is powered by PoE+ network switch meaning no external power supply is required. The speaker includes a Class D amplifier which provides. Connect a network cable to communicate with the built-in Dante module to realize network audio signal transmission. By automatically assigning an IP address through the router DHCP it can transmit signals with Dante’s audio matrix in the LAN, and it is easy to set up a full digital network sound reinforcement system.
- Coverage Angle: Horizontal / Vertical 90 ° / 90 °
- Output Power: POE 10W / POE + 20W
- Supply Voltage: 37V-57V

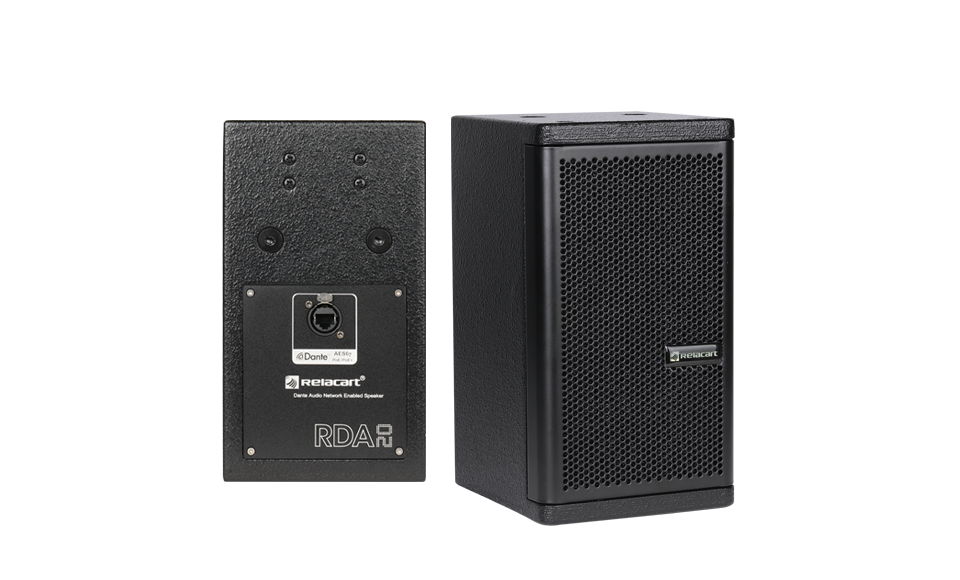

Features
Functional Features:
| Functional Diversification | It has perfect protection functions (short circuit protection, overcurrent protection, over and under protection, DC protection, overheating protection, power voltage limit, clipping limiter), high efficiency and high sound energy output, excellent sound quality, perfect protection functions and good electromagnetic compatibility characteristics. |
|---|---|
| Dante Network Mode | Full frequency speaker integrating network transmission and pure digital power amplifier. |
| Intelligent IP Allocation | Automatically assign IP addresses through router DHCP. |

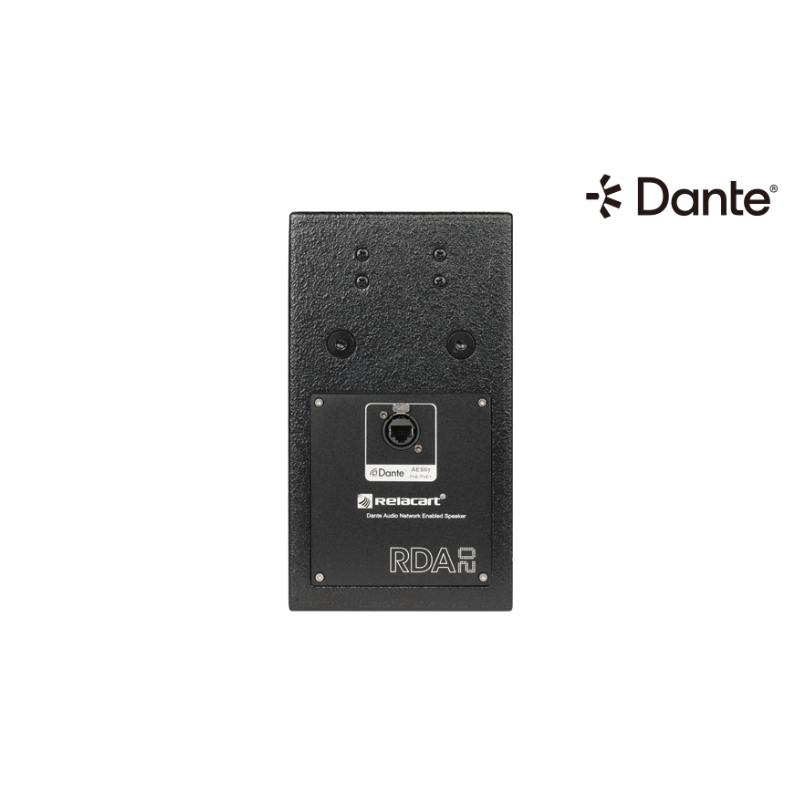

| XLR Socket | XLR RJ45 socket |
Specifications
| Power Supply | Standard POE / POE + |
|---|---|
| Supply Voltage | 37V-57V |
| Output Power | POE 10W / POE + 20W |
| Frequency Response (-3dB) | 85Hz-17KHz |
| Sound Pressure Level Output (-6dB) | 110dB / aes continuous; 113dB / peak |
| Coverage Angle | Horizontal / Vertical 90 ° / 90 ° |
| Input Jack | RJ45 |
| Size | 132 (W) x 160 (D) x 236 (H) |
| Weight | About 2.93kg |
| Accessories | Wall Bracket |
