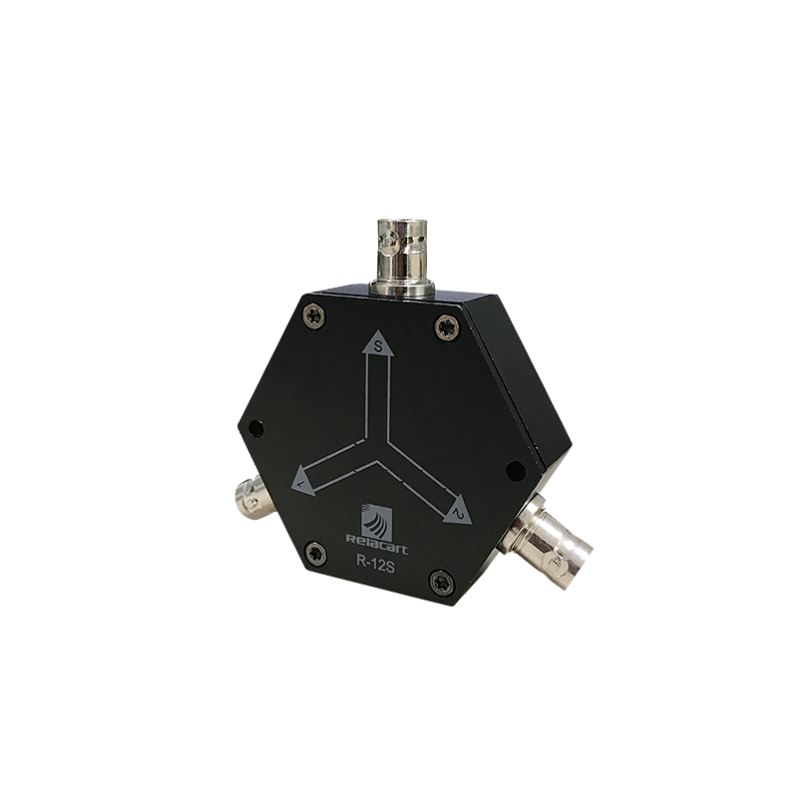

Relacart R-12S Antenna Divider
Description
Description
R-12S can separate 1 RF signal to 2 RF signals output or combine 2 RF signals to 1 RF signal output.Also it is a RF signal amplifier can transfter the offset voltage to front,is a ideal antenna system accessory.- Frequency range: 400MHz-1000MHz
- Abatement: -3.5dB, ±1dB
- Isolation: >-20dB
Features
Specifications
| Frequency Range | 400MHz-1000MHz |
|---|---|
| Abatement | -3.5dB, ±1dB |
| Isolation | >-20dB |
| Impedance | 50 ohms |
| Maximum Passing Voltage/Current | +50V DC/1.50A |
| Interface | BNC |
| Size | 65mm (W) x 50mm (L) x 20mm (H) |
| Weight | About 35g |
