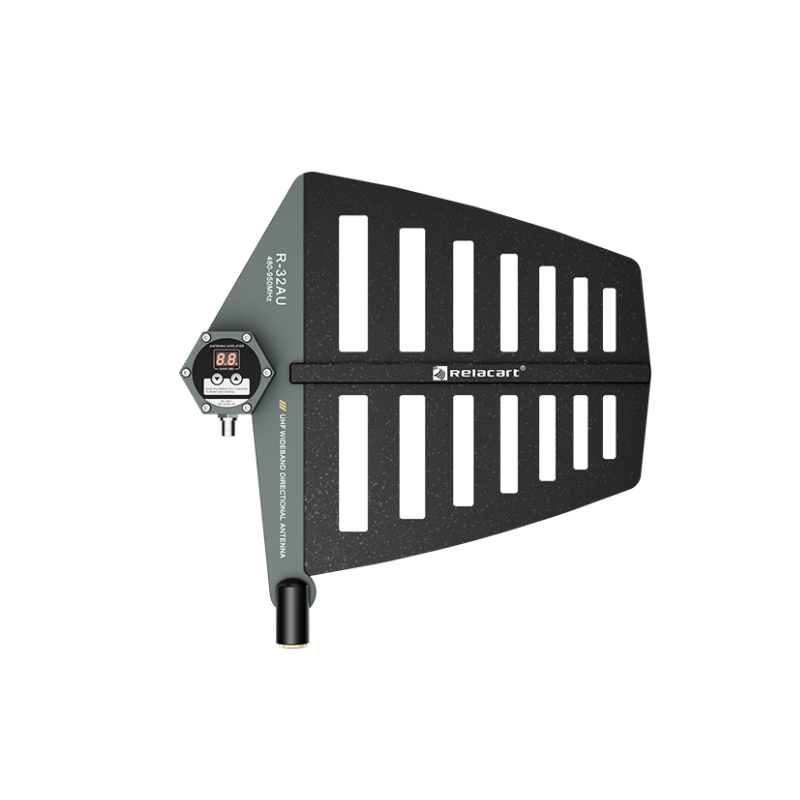

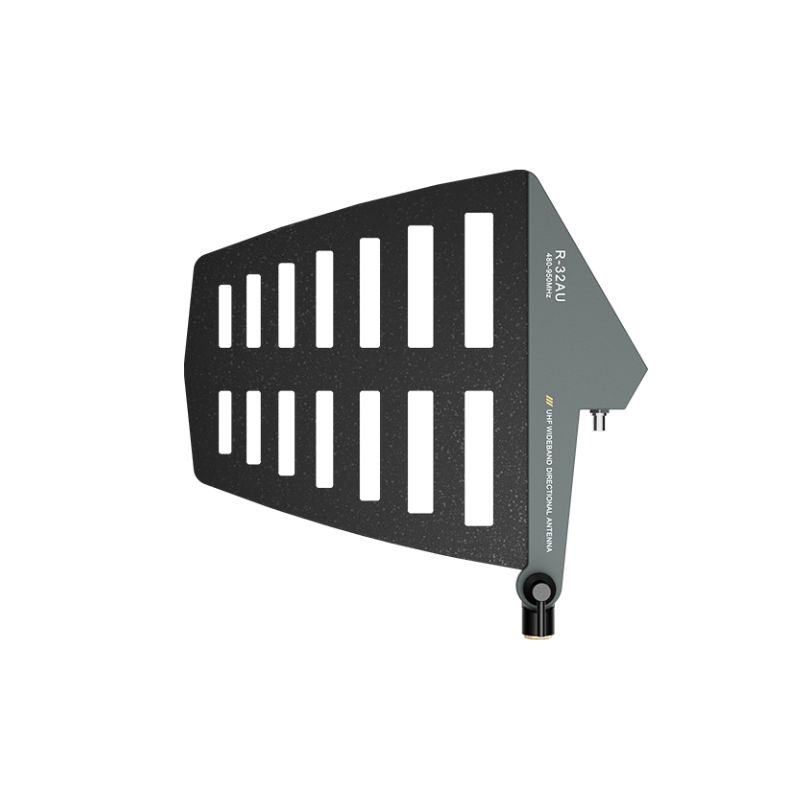

Relacart R-32AU Wide-band Directional Antenna
Description
Description
The R-32AU’s reliable performance and resistance to wear and tear provide the best possible reception within the required coverage. The gain setting is used for enhanced amplification of signal reception. The R-32AU can be mounted on a mic stand, suspended from the ceiling, or attached to the wall using an integrated rotatable stand.
- Antenna frequency range: 470MHz-950 MHz
- Amplifier frequency range: 470MHz-950 MHz
- Antenna gain: ≥6.5dB
Features
Specifications
| Antenna Frequency Range | 470MHz-950 MHz |
|---|---|
| Amplifier Frequency Range | 470MHz-950 MHz |
| Antenna Directionality | Cardioid |
| Antenna Polarization Mode | Line |
| Antenna Gain | ≥6.5dB |
| Antenna Standing Wave Ration | <2 |
| Amplifier Gain | 0 to15dB |
| Amplifier Low Noise | <0.45dB |
| Amplifier OIP3 | >38dBm |
| External Power Supply | 6-12VDC |
| Current | 75mA |
| Connector Port | BNC female |
| Dimensions (mm) | Approx. 332 (L) x 304 (W) x 3 (T) |
| Weight | 715g |
