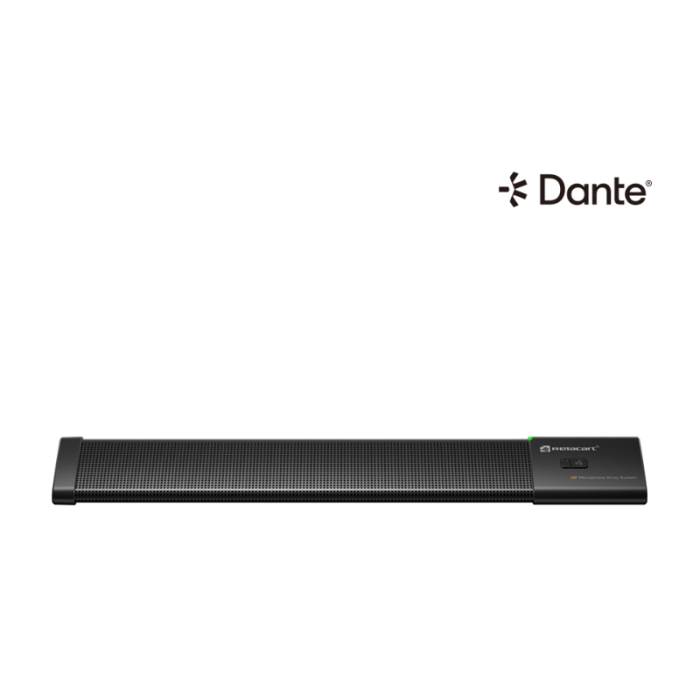

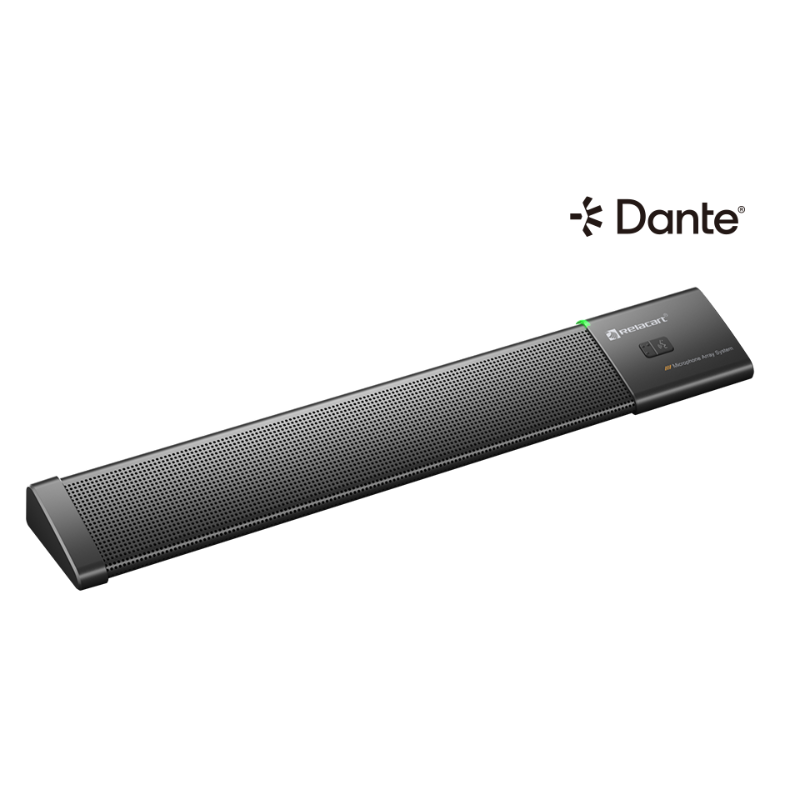

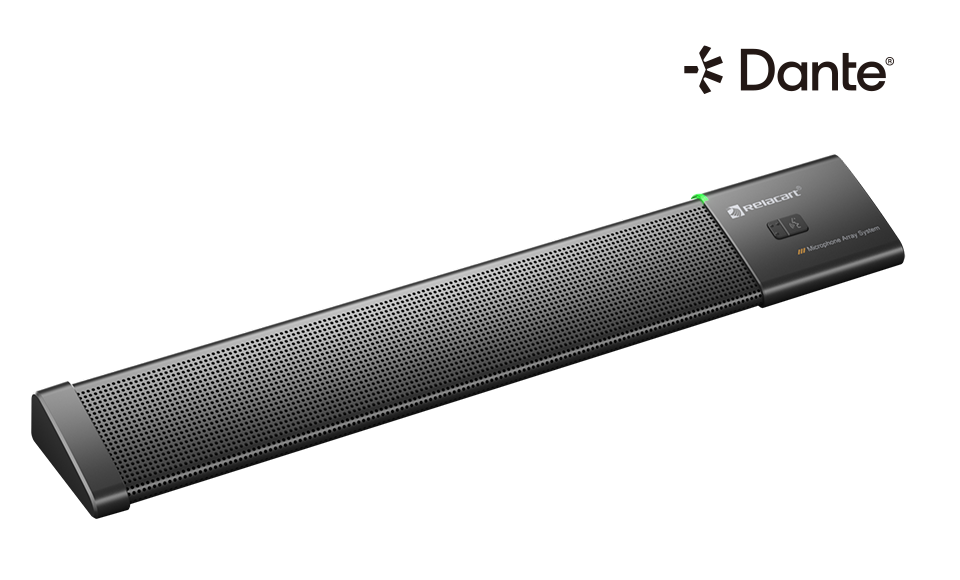

Relacart MAS-D Microphone Array System
Description
Description
The MAS-D Microphone Array System adopts a metal streamlined desktop design, which is stylish and succinct. It also has a unique microphone array technology and an integrated microphone module, which improves the range and quality of the array microphone and ensures that the speaker is specific. It ensures that the speaker does not affect the sound effect within a certain range. Eliminating the gooseneck microphone and the larger pickup range gives the speaker more space to use.
- Frequency Response: 20-20000Hz
- Input Impedance: 2.2KΩ
- Sensitivity: -11dB at 1KHz@1Pa
Features
Specifications
| Frequency Response | 20-20000Hz |
|---|---|
| Input Impedance | 2.2KΩ |
| Sensitivity | -11dB at 1KHz@1Pa |
| Signal To Noise Ratio | 65dB at 1KHz |
| Maximum Input Level | -14dBA at 1KHz@1Pa |
| Pickup Distance | 80CM |
| Port | RJ45 |
| Power Supply Mode | POE IEEE802.3 |
| Power Consumption | 2.3W |
| Weight | 350g |
| Dimensions | 320mm (L) x 60mm (W) x 31mm (H) |
| DANTE Network | RJ45 connector, CAT5 or CAT6 network above 100Mbps |

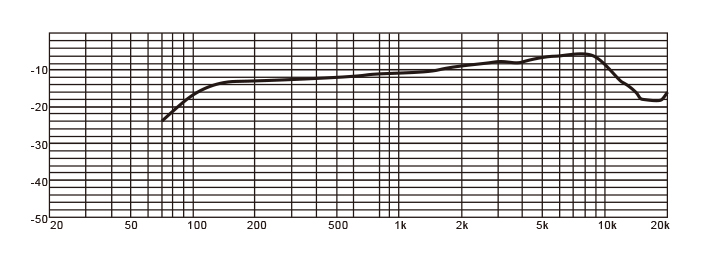

Frequency Response

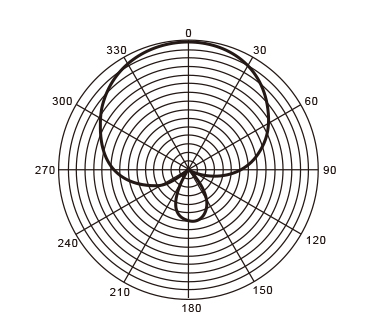

Polar Pattern
