Prolink Energrid V IV Series

Description

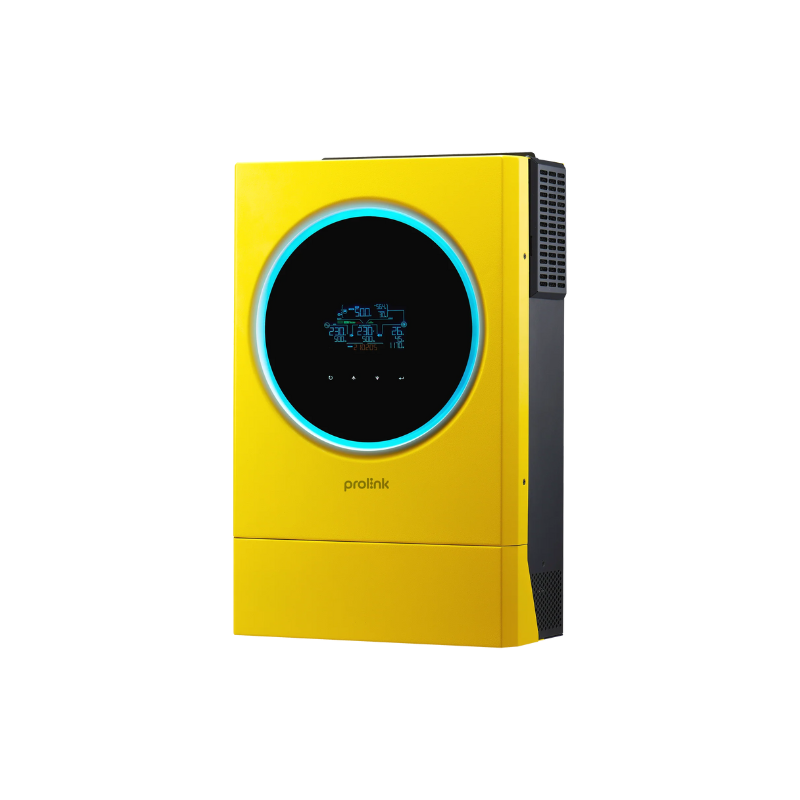

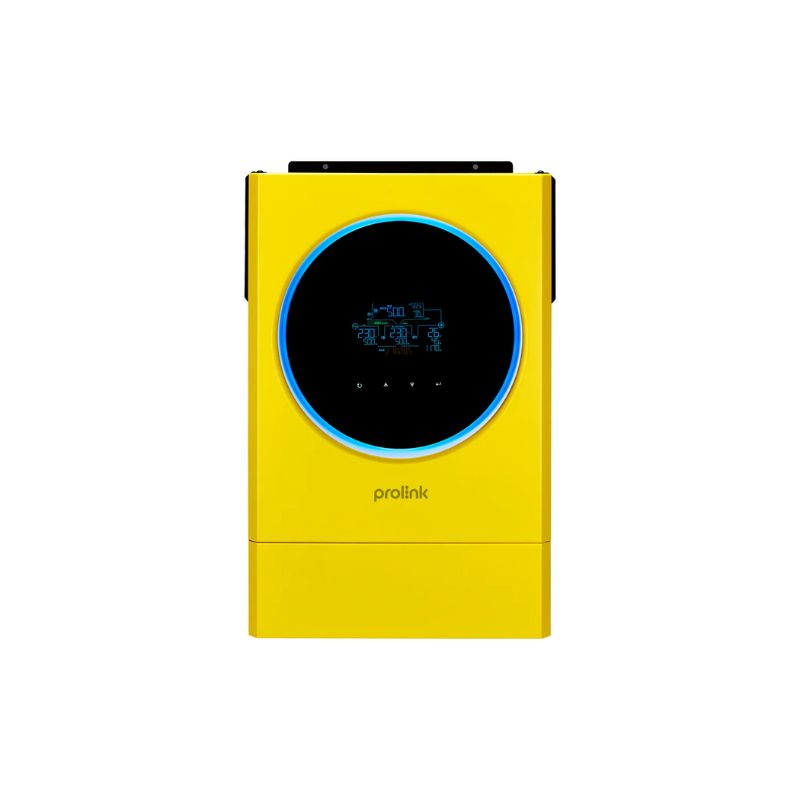

Energrid V IV Series is an on-grid inverter with energy storage that works for multiple scenarios through a single unit. The solar power stored during the day can be released when the loads require it in night.

• Customizable status LED ring with RGB lights
• Touchable button with 4.3″ colored LCD
• Supports USB On-the-Go function
• Data log events stored in the inverter
• Self-consumption and Feed-in to the grid
• Programmable supply priority for PV, Battery or Grid
• User-adjustable charging current and voltage
• Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
• Built-in Wi-Fi for mobile monitoring (App is available)
• Reserved communication port for BMS
• Parallel operation up to 9 units

Features

LCD dsiplay

Programmable supply priority

Output Power Factor 1.0

Dual Output

This inverter supplies power to two separate devices or loads simultaneously. This is especially useful in situations where multiple electronic devices are needed to run at the same time.

Mobile Monitoring

Enjoy the convenience of monitoring the inverter’s data from mobile app anytime and anywhere than physically checking your inverter screen all the time.

Adjustable Charging Current and Voltage

Battery charging voltage and current are adjustable to suit various battery capacities.

Customizable Status LED Ring

Programmable RGB lighting and effects for different operation modes.

4.3″ Coloured LCD With Touchable Button

Useful information such as output voltage and power conditions are shown at a glance through with the LCD display.

Self-Consumption and Feed-In To The Grid.

Programmable Parameters

Supply Priority

Set input source preferences (solar/ battery power/ grid) for the DC load input of the inverter.

Operation Modes

Select between grid-tie (with battery connected), off-grid and grid-tie with backup to suite application and scenarios.

Specifications

Phase

1-phase in/ 1-phase out

Maximum PV Input Power

Energrid V IV 3.6KM-48: 5000W
Energrid V IV 5.6KM-48: 6000W
Energrid V IV 6KM-48: 6500W

Rated Output Power

Energrid V IV 3.6KM-48: 3600W
Energrid V IV 5.6KM-48: 5600W
Energrid V IV 6KM-48: 6000W

Maximum Charging Power

Energrid V IV 3.6KM-48: 5000W
Energrid V IV 5.6KM-48: 6000W
Energrid V IV 6KM-48: 6000W

Nominal DC Voltage / Maximum DC Voltage

Energrid V IV 3.6KM-48: 360 VDC / 500 VDC
Energrid V IV 5.6KM-48: 360 VDC / 450 VDC
Energrid V IV 6KM-48: 360 VDC / 500 VDC

Start-up Voltage / Initial Feeding Voltage

Energrid V IV 3.6KM-48: 110VDC / 120 VDC
Energrid V IV 5.6KM-48: 110VDC / 120 VDC
Energrid V IV 6KM-48: 120VDC / 150 VDC

MPP Voltage Range

120 VDC ~ 430 VDC

Number of MPP Trackers / Maximum Input Current

Energrid V IV 3.6KM-48: 1 / 18 A
Energrid V IV 5.6KM-48: 1 / 27 A
Energrid V IV 6KM-48: 1 / 27 A

Nominal Output Voltage

220/230/240 VAC

Output Voltage Range

184 – 264.5 VAC or 195.5 – 253 VAC (Selectable)

Nominal Output Current

24.3A

Power Factor

> 0.9

Maximum Conversion Efficiency (DC/AC)

Energrid V IV 3.6KM-48: 96%
Energrid V IV 5.6KM-48: 96%
Energrid V IV 6KM-48: 95%

AC Start-up Voltage / Auto Restart Voltage

120 – 140 VAC / 180 VAC

Acceptable Input Voltage Range

90 – 280 VAC or 170 – 280 VAC

Maximum AC Input Current

40A

Maximum DC Voltage

Energrid V IV 3.6KM-48: 500 VDC
Energrid V IV 5.6KM-48: 450 VDC
Energrid V IV 6KM-48: 500 VDC

Output Waveform

Pure sinewave

Battery & Charger

Nominal DC Voltage

48 VDC

Maximum Solar Charging Current

Energrid V IV 3.6KM-48: 100 A
Energrid V IV 5.6KM-48: 120 A
Energrid V IV 6KM-48: 120 A

Maximum AC Charging Current

Energrid V IV 3.6KM-48: 100 A
Energrid V IV 5.6KM-48: 120 A
Energrid V IV 6KM-48: 120 A

Maximum Charging Current

Energrid V IV 3.6KM-48: 100 A
Energrid V IV 5.6KM-48: 120 A
Energrid V IV 6KM-48: 120 A

Physical

Dimension, D x W x H (mm)

140 x 295 x 468

Net Weight (kgs)

Energrid V IV 3.6KM-48: 11
Energrid V IV 5.6KM-48: 12
Energrid V IV 6KM-48: 12
