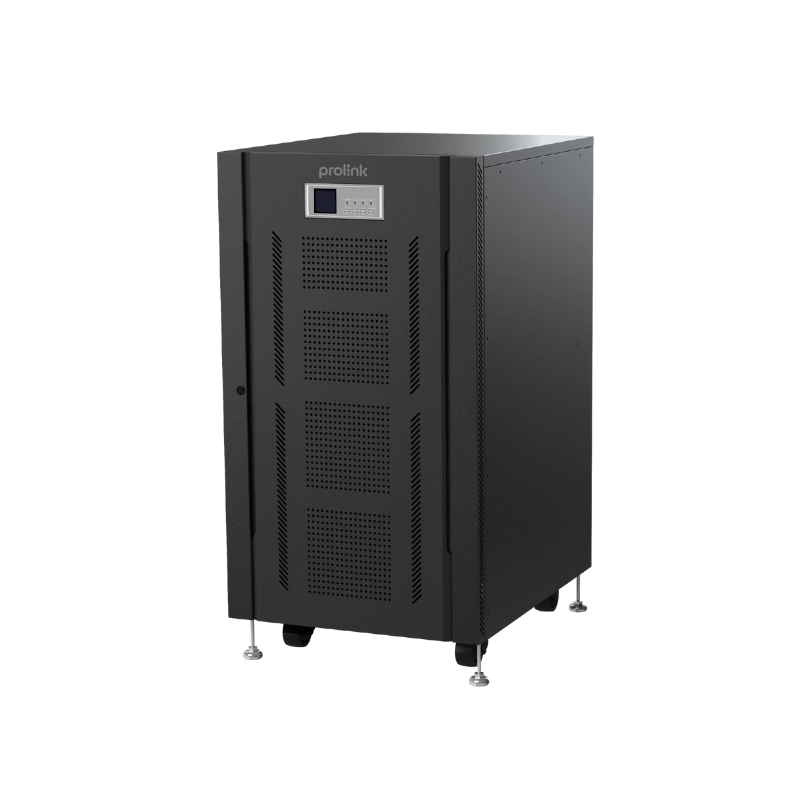

Prolink Energrid VTX (3P/3P)
Key Features
- Pure sine wave output
- Self-consumption and Feed-in to the grid
- Programmable multiple operation modes
- Programmable supply priority
- True galvanic isolation transformer design
Description
Energrid VTX (3P/3P) is an on-grid inverter with energy storage that works for multiple scenarios through a single unit. The solar power stored during the day can be released when the loads require it in night.
• Pure sine wave output
• Self-consumption and Feed-in to the grid
• Programmable supply priority for PV, Battery or Grid
• True galvanic isolation transformer design
• Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
• User-adjustable charging current
• Built-in timer for various mode of on/off operation
• Multiple communication for USB, RS-232, Modbus and SNMP
• Monitoring software for real-time status display and control
• Parallel operation up to 4 units only for 30KW
Features
 |
Pure sine wave solar inverter |
|---|---|
 |
LCD dsiplay |
 |
Programmable supply priority |
Pure Sine Wave Output
Provides clean and consistent pure sine wave power that improves equipment’s performance and efficiency.
Self-Consumption
Besides feed-in power to the grid, it also stores solar power to the battery for future usage and direct power to the loads.
Adjustable Charging Current and Voltage
Battery charging voltage and current are adjustable to suit various battery capacities.
Multiple communication ports for USB, RS-232, Modbus and SNMP
Programmable Parameters
 |
Supply PrioritySet input source preferences (solar/ battery power/ grid) for the DC load input of the inverter. |
|---|---|
 |
Operation ModesSelect between grid-tie (with battery connected), off-grid and grid-tie with backup to suite application and scenarios. |
Specifications
| Maximum PV Input Power |
|
|---|---|
| Rated Output Power |
|
| Maximum Charging Power |
|
| Nominal DC Voltage / Maximum DC Voltage | 720 VDC / 950 VDC |
| Start-up Voltage / Initial Feeding Voltage |
500 VDC / 550 VDC |
| MPP Voltage Range | 460 VDC~900VDC |
| Full power MPP Voltage Range | 625 VDC ~ 900 VDC |
| Number of MPP Trackers / Maximum Input Current |
|
| Nominal Output Voltage | 230 VAC (P-N) / 400 VAC (P-P) |
| Output Voltage Range | 195~253 VAC per phase |
| Output Frequency Range | 47.5 ~ 51.5 Hz or 59.3 ~ 60.5 Hz |
| Nominal Output Current |
|
| Power Factor | 1 |
| Maximum Conversion Efficiency (DC/AC) |
|
| Nominal battery output voltage |
230VAC (P-N)/400VAC (P-P) |
| Battery mode output efficiency | >91% |
Battery & Charger
| Nominal DC Voltage |
|
|---|---|
| Maximum Solar Charge Current |
|
Physical
| Dimension, D x W x H (mm) |
|
|---|---|
| Net Weight (kgs) |
|
