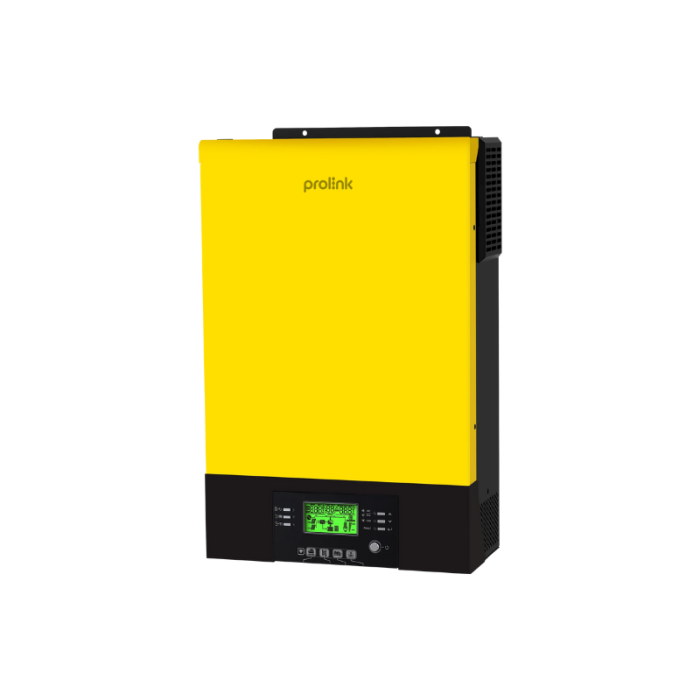

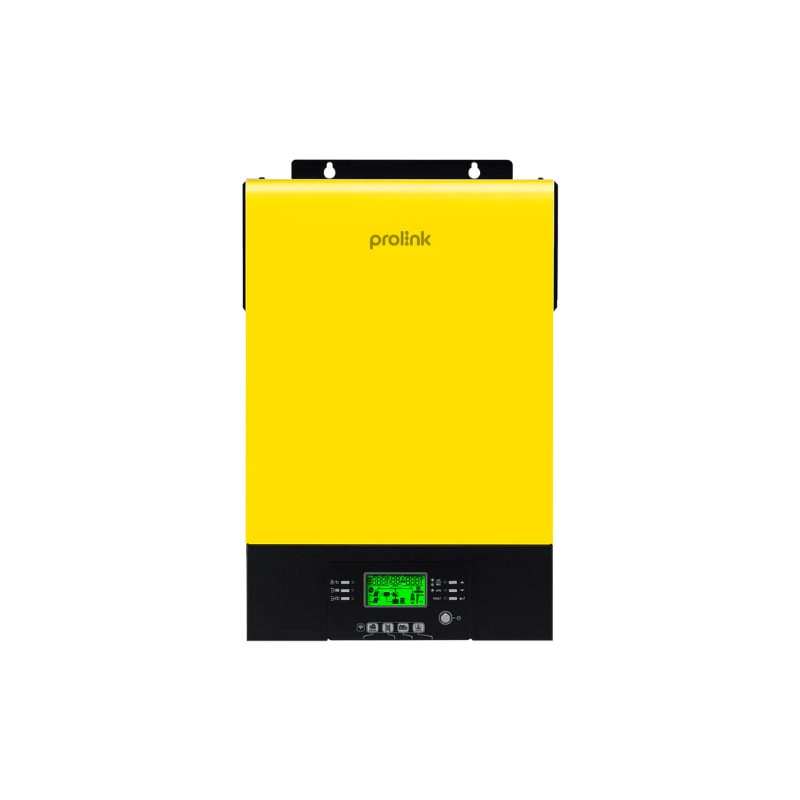

Prolink Energrid V III Series

Description

Energrid V III Series is an on-grid inverter with energy storage is a smart inverter that works for multiple scenarios through a single unit. The solar power stored during the day can be released when the loads require it in night.

• Pure sine wave output
• Self-consumption and Feed-in to the grid
• Built-in MPPT solar charger
• Programmable supply priority for PV, Battery or Grid
• User-adjustable charging current and voltage
• Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
• Detachable LCD panel
• Built-in WiFi for mobile monitoring (APP is available)
• Supports USB on-the-go function
• Reserve BMS communication
• Parallel operation up to 9 units

Features

Pure sine wave solar inverter

LCD dsiplay

Programmable supply priority

Pure Sine Wave Output

Provides clean and consistent pure sine wave power that improves equipment’s performance and efficiency.

Mobile Monitoring

Enjoy the convenience of monitoring the inverter’s data from mobile app anytime and anywhere than physically checking your inverter screen all the time.

Adjustable Charging Current and Voltage

Battery charging voltage and current are adjustable to suit various battery capacities.

Built-In MPPT Solar Charger

Preventing the battery from overcharging by regulating the voltage and current coming from the solar panel to the battery.

Programmable Parameters

Supply Priority

Set input source preferences (solar/ battery power/ grid) for the DC load input of the inverter.

Operation Modes

Select between grid-tie (with battery connected), off-grid and grid-tie with backup to suite application and scenarios.

Specifications

Phase

1-phase in/ 1-phase out

Maximum PV Input Power

Energrid V III 2KM-48: 3000W
Energrid V III 3KM-48: 4500W
Energrid V III 5KM-48: 6000W
Energrid V III 6KM-48: 6000W

Rated Output Power

Energrid V III 2KM-48: 2000W
Energrid V III 3KM-48: 3000W
Energrid V III 5KM-48: 5000W
Energrid V III 6KM-48: 6000W

Maximum Charging Power

Energrid V III 2KM-48: 2000W
Energrid V III 3KM-48: 3000W
Energrid V III 5KM-48: 5000W
Energrid V III 6KM-48: 6000W

Nominal DC Voltage / Maximum DC Voltage

Energrid V III 2KM-48: 240 VDC / 500 VDC
Energrid V III 3KM-48: 360 VDC / 500 VDC
Energrid V III 5KM-48: 360 VDC / 450 VDC
Energrid V III 6KM-48: 360 VDC /500 VDC

Start-up Voltage / Initial Feeding Voltage

120VDC / 150 VDC

MPP Voltage Range

120 VDC ~ 430 VDC

Number of MPP Trackers / Maximum Input Current

Energrid V III 2KM-48: 1 / 13 A
Energrid V III 3KM-48: 1 / 13 A
Energrid V III 5KM-48: 1 / 27A
Energrid V III 6KM-48: 1 / 27A

Nominal Output Voltage

220/230/240 VAC

Output Voltage Range

184 – 264.5 VAC or 195.5 – 253 VAC (Selectable)

Nominal Output Current

Energrid V III 2KM-48: 8.7A
Energrid V III 3KM-48: 13A
Energrid V III 5KM-48: 21.7A
Energrid V III 6KM-48: 26A

Power Factor

> 0.99

Maximum Conversion Efficiency (DC/AC)

95%

AC Start-up Voltage / Auto Restart Voltage

120 – 140 VAC / 180 VAC

Acceptable Input Voltage Range

90 – 280 VAC or 170 – 280 VAC

Frequency Range

50 Hz/60 Hz (Auto sensing)

Maximum AC Input Current

Energrid V III 2KM-48: 30 A
Energrid V III 3KM-48: 40 A
Energrid V III 5KM-48: 40 A
Energrid V III 6KM-48: 40 A

Maximum DC Voltage

Energrid V III 2KM-48: 500 VDC
Energrid V III 3KM-48: 500 VDC
Energrid V III 5KM-48: 450 VDC
Energrid V III 6KM-48: 500 VDC

Battery & Charger

Nominal DC Voltage

48 VDC

Maximum Solar Charging Current

Energrid V III 2KM-48: 60 A
Energrid V III 3KM-48: 60 A
Energrid V III 5KM-48: 100 A
Energrid V III 6KM-48: 120 A

Maximum AC Charging Current

Energrid V III 2KM-48: 60 A
Energrid V III 3KM-48: 60 A
Energrid V III 5KM-48: 100 A
Energrid V III 6KM-48: 120 A

Maximum Charging Current

Energrid V III 2KM-48: 60 A
Energrid V III 3KM-48: 60 A
Energrid V III 5KM-48: 100 A
Energrid V III 6KM-48: 120 A

Physical

Dimension, D x W x H (mm)

140 x 295 x 468

Net Weight (kgs)

Energrid V III 2KM-48: 11
Energrid V III 3KM-48: 11
Energrid V III 5KM-48: 12
Energrid V III 6KM-48: 14
