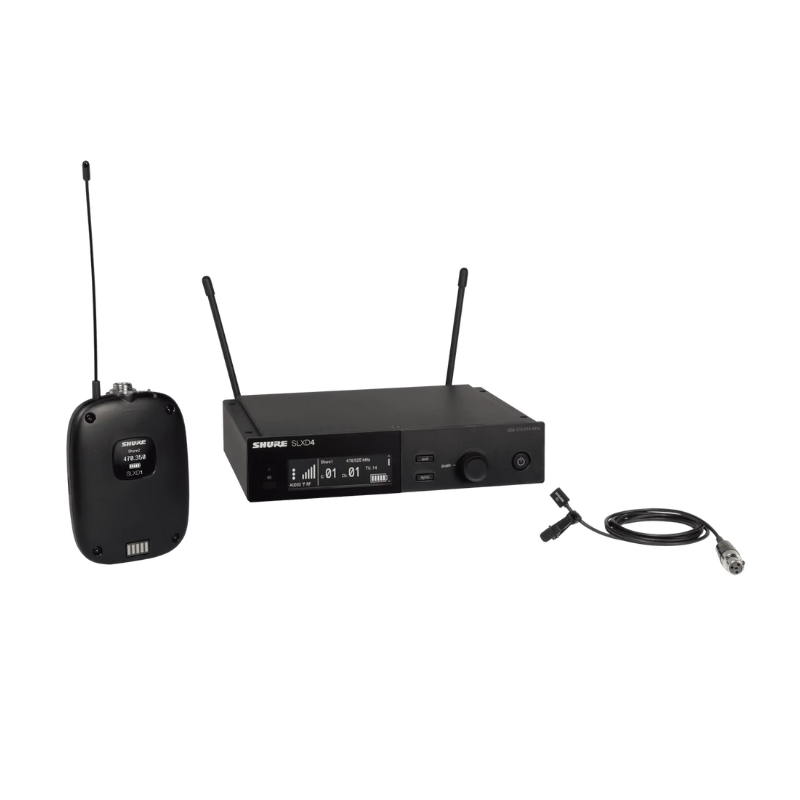

Shure SLXD14/93 Digital Wireless Omni Lavalier Microphone System

Description

The SLXD14/93 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitters and WL93 Miniature Omnidirectional Lavalier Microphone with antenna and rackmount accessories and 2 AA batteries.

Features

The SLX-D operates in the UHF band to transmit high-quality, 24-bit digital audio with over 120 dB of dynamic range for crisp, detailed sound. It utilizes Digital Predictive Switching Diversity to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.

This configuration comes with a WL93 subminiature omnidirectional lavalier microphone optimized for speech intelligibility. The discreet bodypack transmitter has a selectable 1/10mW RF power output and a transmission range up to 330′. It provides up to 8 hours of operation on two AA batteries or an SB903 rechargeable battery (available separately).

The all-metal, rackmount SLXD4 receiver features an intuitive LCD interface with meters for RF, battery status, and audio output. It also offers 60 dB of gain control, and both mic/line XLR and 1/4″ instrument outputs. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.

With up to 32 mic channels available at the same time, the SLX-D is ready to expand as your needs grow. What’s more, setting up multiple systems is made fast and easy via the Ethernet port, which links the receivers together for quick, coordinated frequency scans from a single location.

WL93 Miniature Lavalier Microphone

Connect your wireless bodypack transmitter to the WL93. This omnidirectional miniature lavalier microphone provides full, clear sound in speech applications. It features a smooth, tailored frequency response, controlled low-frequency roll-off, and a visually-discreet design that makes it easy to incorporate into body-worn mic applications including broadcasting, public speaking, theatrical performances, and other sound reinforcement projects.

• The WL93 condenser lavalier microphone features an omnidirectional polar pattern, which picks up sound evenly from all directions, allowing for flexible mic positioning.
• The mic’s subminiature size makes it easier to conceal.
• The lavalier mic plugs into the locking TA4M connector on the compact SLXD1 bodypack transmitter.
• The rugged, plastic transmitter has a belt clip that attaches to the talent’s clothing and an LCD that shows essential information.

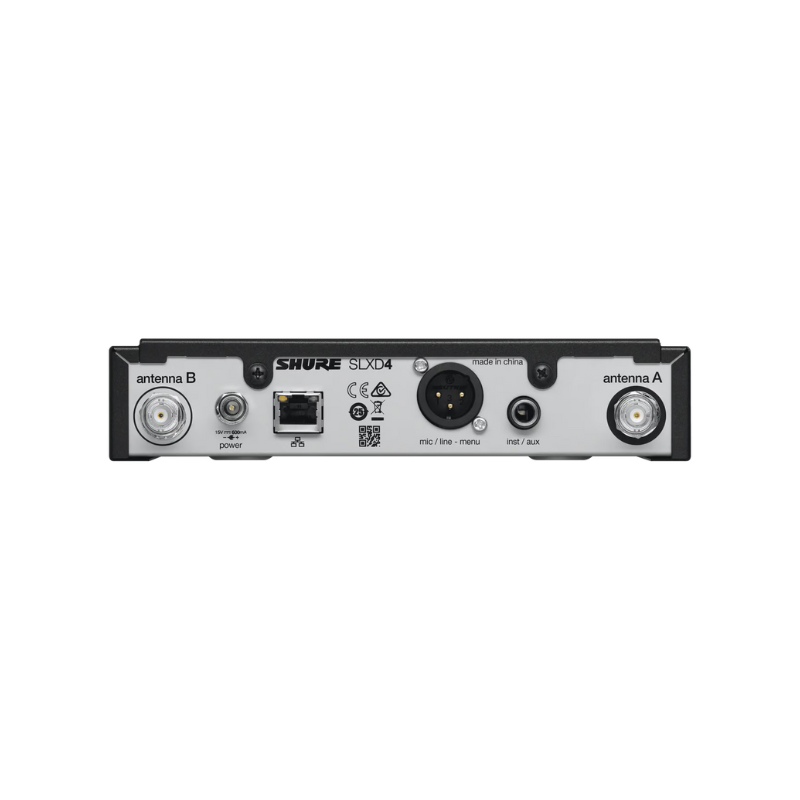

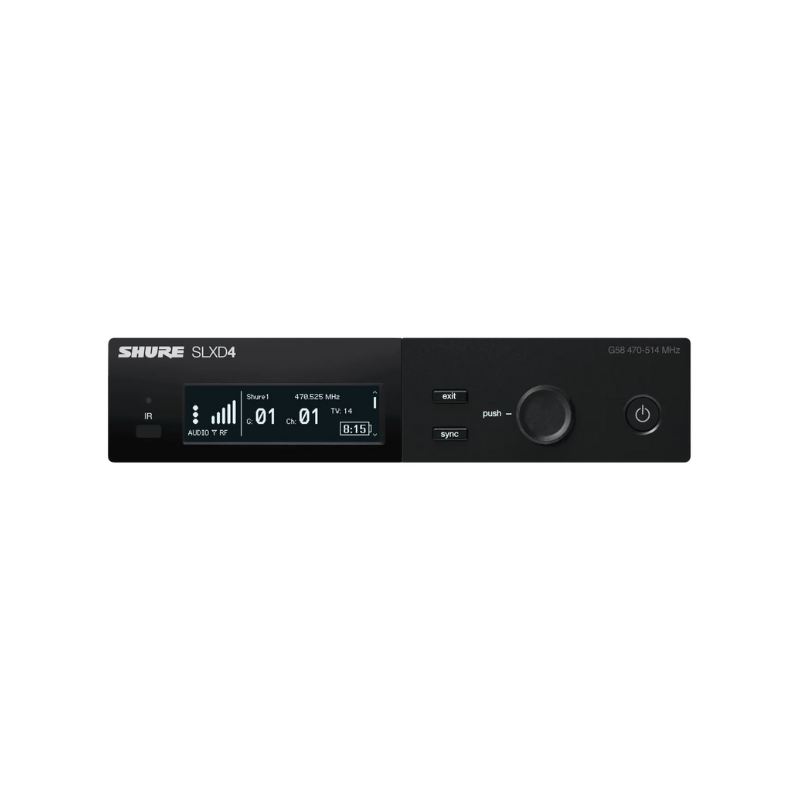

SLXD4 Digital Wireless Receiver

SLX-D^® Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations.  Featuring industry-leading digital wireless technology and design, the SLXD4 easily syncs wireless transmitters.  A variety of interchangeable microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over IR scan and sync
• Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
• Interchangeable microphone capsules
• Rugged metal construction

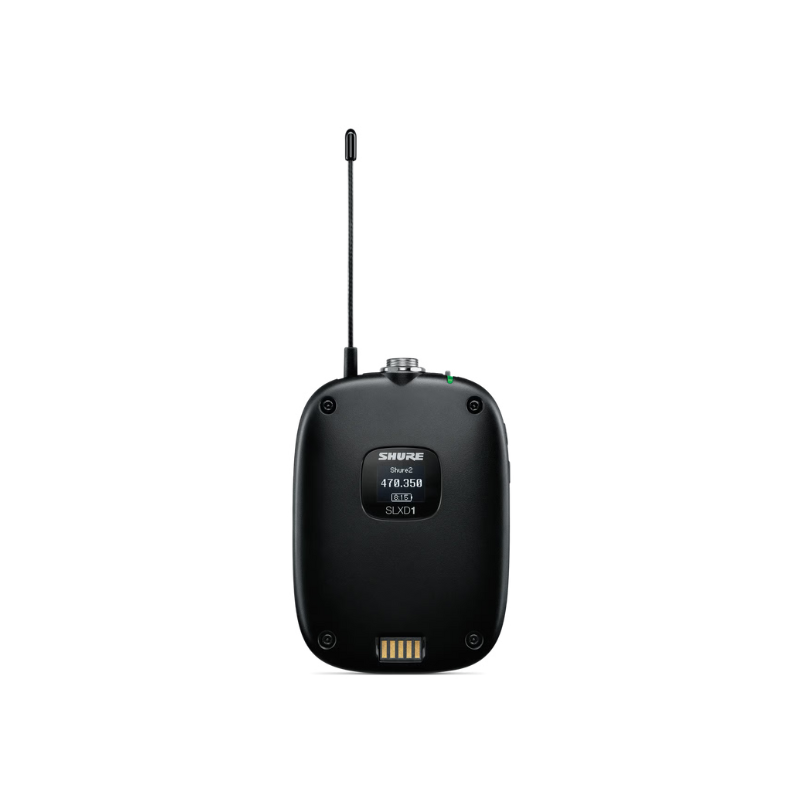

SLXD1 Digital Wireless Bodypack Transmitter

Be confident with your sound, whether you’re presenting in a lecture hall or performing live on-stage. Featuring industry-leading digital wireless technology and design, the SLXD1 Digital Wireless Bodypack Transmitter from Shure easily syncs with a wireless receiver. Choose from an instrument cable or lavalier, headworn, or instrument microphone to complete your setup.

• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• Operating range of 100 m (300 ft.)
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over IR scan and sync
• Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics.
• Choice of instrument cable or lavalier, headworn and instrument microphones
• Ergonomic and durable plastic construction

In the Box

• SLXD4 Single-Channel Receiver x1
• SLXD1 Bodypack Transmitter x1
• WL93 Miniature Lavalier Microphone x1
• AA Batteries x2
• Antennas x2
• Power Supply x1
• User Guide
