Shure Microflex Complete Wireless Digital Conference System Bundle 10 Mic

Description

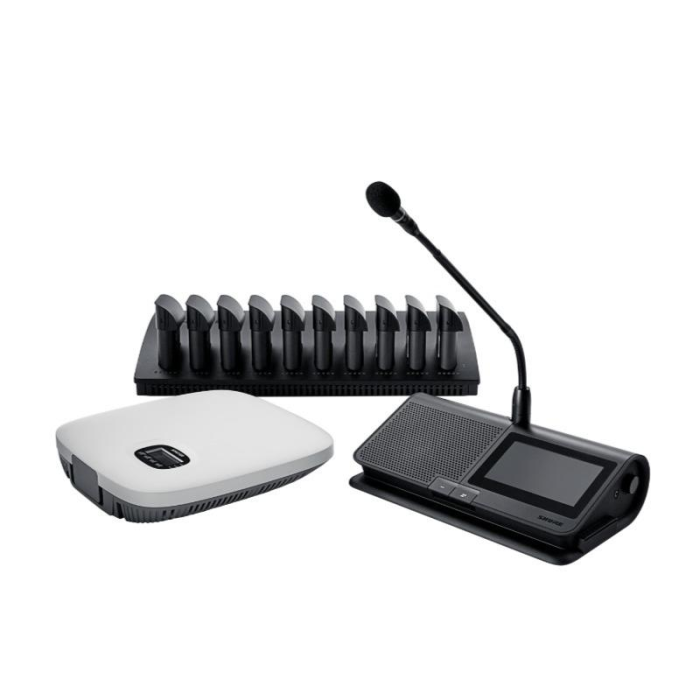

The Shure Microflex® Complete Wireless (MXCW) system is a conferencing solution that provides a steady, reliable audio experience for up to 125 conference units. MXCW overcomes cable limitations for off-site meetings, flexible meeting rooms, or historic buildings where drilling holes in furniture is impractical. The system features automatic RF interference detection and avoidance technology, encrypted digital wireless transmission, and digital audio networking using Dante™.

The MXCW access point has multiple mounting options for discreet communication between wireless conference units and the digital audio network, and works within the 2.4 GHz and 5 GHz frequency bands. Use the access point web application for system setup, and to monitor and control conference units. Conference units have configurable roles for meeting participants, and can be routed to the floor audio or an interpretation channel. Each wireless conference unit is powered by a smart lithium-ion rechargeable battery whose remaining charge can be checked remotely by a technician. The MXCW networked charging station charges and stores up to 10 Shure rechargeable batteries that can be monitored through its own web application.

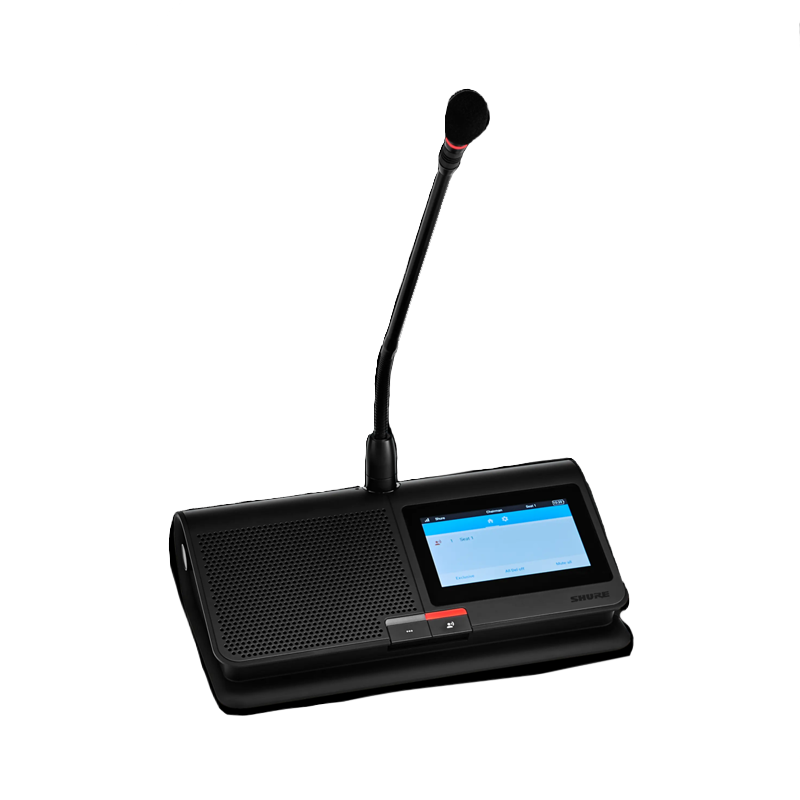

MXCW640 Wireless Conference Unit – Contains the speaker, microphone, 4.3″ color touchscreen (which can be used for voting during a meeting), individual controls and use status indicators. These units are positioned where participants need them and can be provisioned with varying permissions to allow users full to limited control. The units are powered by rechargeable batteries and include a lockable MXC-series gooseneck microphone connection and dual 3.5mm headphone jacks. NFC ID card slot can be used for participant identification.

MXCWAPT Access Point Transceiver – The hub of the system, it manages audio routing, frequency coordination and system control for up to 125 conference units. During setup, the Access Point scans for clearest available frequency bands and communicates to the conferencing units through AES-128 encryption. The Access Point supports up to 10 input channels and 10 output channels and includes a Dante networked audio connection. Powered by standard PoE or power injector, it can be mounted on a wall or ceiling, or placed on a table or stand for portable use.

SB930 Rechargeable Batteries – With over 11 hour life per charge, SB930s charging in the MXCWNCS Networked Charging Station takes just 1.5 hours for 50% charge, and 4 hours for 100%. When the batteries are in use in a Conference Unit, they can be individually recharged via Micro USB.

Specification

Feature

Automatic Frequency Coordination for quick and easy setup
Uses global 2.4/5 GHz spectrum including DFS channels to maximize available spectrum
Built-in RF spectrum manager constantly monitors available channel quality
Automatic Interference Detection and Avoidance resolves potential transmission problems in congested RF environments
High spectral efficiency allows up to 125 units on one WLAN channel
Proprietary Shure audio codec for natural, intelligible sound quality
Automatic Gain Control for consistent speech levels for each talker
Support for Automatic, FIFO (First-In/First-Off), and Manual microphone operating modes
Gooseneck microphones include interchangeable Microflex cartridges and CommShield Technology for robust RF noise immunity
Robust AES-128 wireless encryption for enhanced privacy

Others

MXCWAPT Access Point mounts on wall, ceiling, or stand, and connects with one cable for audio, power, and control
Each conference unit can be configured as Chairman, Delegate, Listener, or Ambient role
Smart Lithium-Ion rechargeable battery lasts over 11 hours, recharges in under 4 hours
Embedded browser-based interface allows remote monitoring and control by chairman or technician
Speak/request list can be projected on video display without additional software
Integrated NFC card technology in each conference unit allows participants to be identified by name instead of seat number, regardless of where they sit
Latency: 16ms/9.2ms/7.7ms
Frequency Response: 100Hz – 20kHz (+0.5dB/-3dB); 220Hz – 15kHz (±10dB)
Total Harmonic Distortion + Noise: 0.06%, typical; 1%, typical
Dynamic Range: 100dB (A-weighted), 97dB (unweighted), typical; 94dB (A-weighted), 91dB (unweighted), typical
Digital Audio Processing: 24bit/48kHz
Digital Audio Networking: DANTE, AES67
RF Working Range: 8m (Low), 15m (Medium), 30m (High), 45m (Maximum)
