Relacart WAM-432 Wireless Automatic Mixer
Key Features:
- Flexible Configuration
- Broad Expansion
- IR Frequency Comparison
- [AFS] Automatic Search Frequency
Description
Description
WAM-432 automatic intelligent wireless mixer is a new generation of products designed with high-performance microcomputer processor as the core of Relacart’s strong research and development strength. The design is professional and novel, and the digital control technology and advanced audio processing technology. The perfect combination of processing technology and network technology, intelligent control, fully automatic work; connecting AMC-20 audio and video control system can realize audio and video management functions.
- Carrier Frequency Range: 522MHz-936 MHZ
- Receiving Channel: 4 Channel
- Receiving Mode: True Diversity
Features
Functional Features:

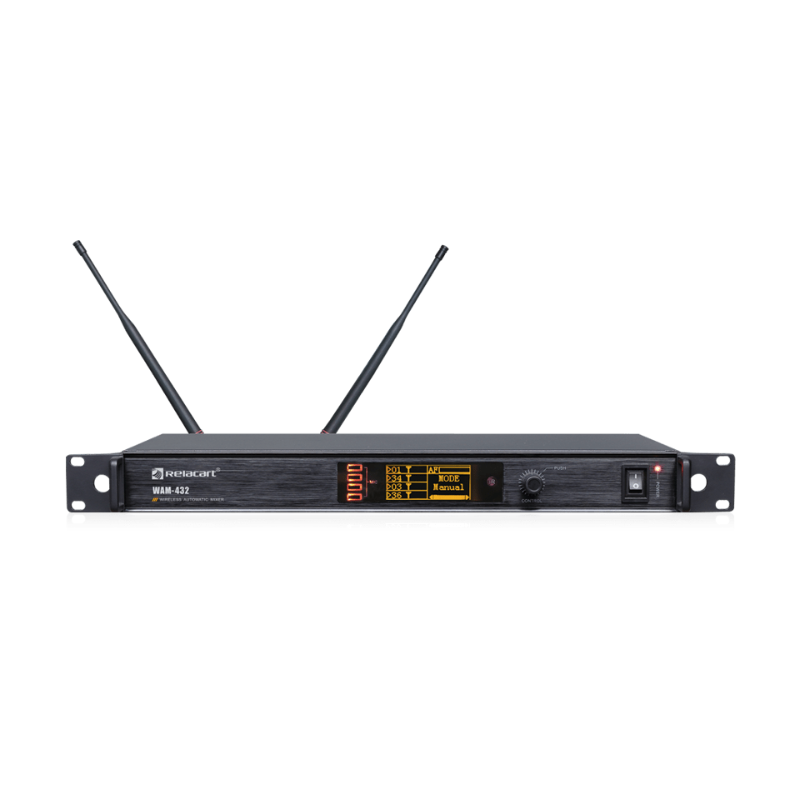

| Flexible Configuration | Front panel, equipped with 256×64 dot matrix OLED display and navigation touch buttons, camera control buttons; |
|---|---|
| Broad Expansion | Standard 1U aluminum panel, all metal chassis; |

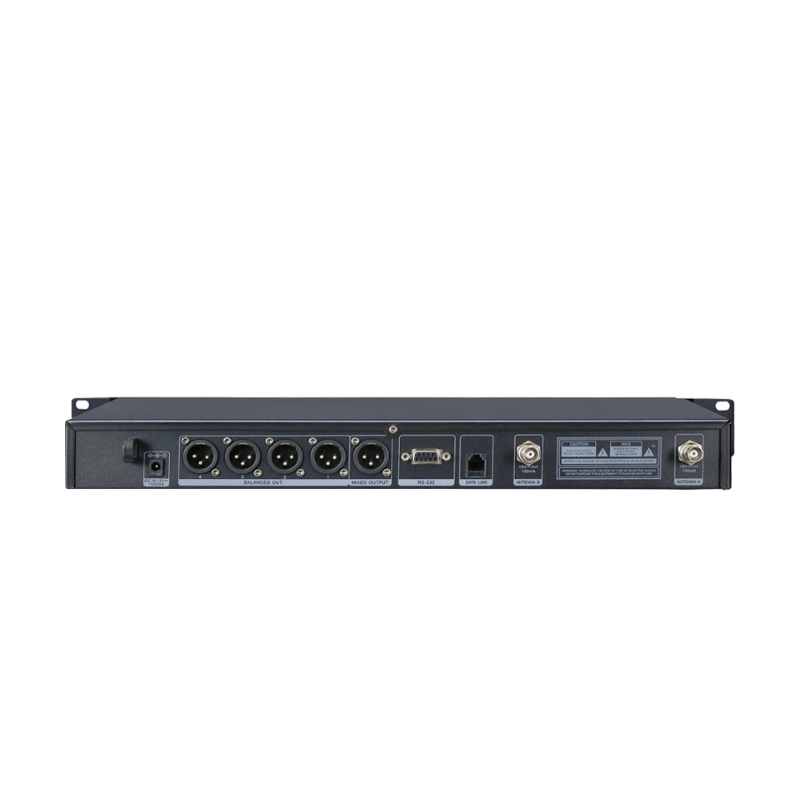

| IR Frequency Comparison | DC-12V power supply, 5-way balanced audio mixing input and 1-way balanced mixing input; 5-way mixer data RJ11 interface, 4-way HD video input and 1-way HD video output, two camera control interfaces; External RS-232 interface; |
| [AFS] Automatic Search Frequency | Support automatic frequency calculation of the system; The connected mixer can automatically calculate and set mutually noninterference frequencies, up to 20 clean frequencies. |
Specifications
| Receiving Channel | 4 Channel |
|---|---|
| Receiving Mode | True Diversity |
| Carrier Frequency Range | 522MHz-936 MHz |
| Frequency Reliability | 0.005％ |
| Modulation Mode | FM |
| Distortion | ±45KHz |
| Bandwidth | 32MHz |
| Receiving Sensitivity | 5dBμV, S/N>60dB |
| Frequency Response | 65Hz-16KHz, 150Hz-16KHz (low cut) |
| Harmonic Distortion | ≤ 0.7%@1KHz |
| Dynamic Range | ＞95dB |
| S/N | >92dB |
| Audio Output | XLR socket |
| Data Connection | RJ11 |
| Communication Port | RS-232 |
| Power Supply | DC 12V/1A |
| Operating Current | 700mA |
| Main Frame Size | EIA 1U |
| Size (mm) | 410 (w) ×43 (H) ×206 (D) |
| Weight | About 2.5kg |
