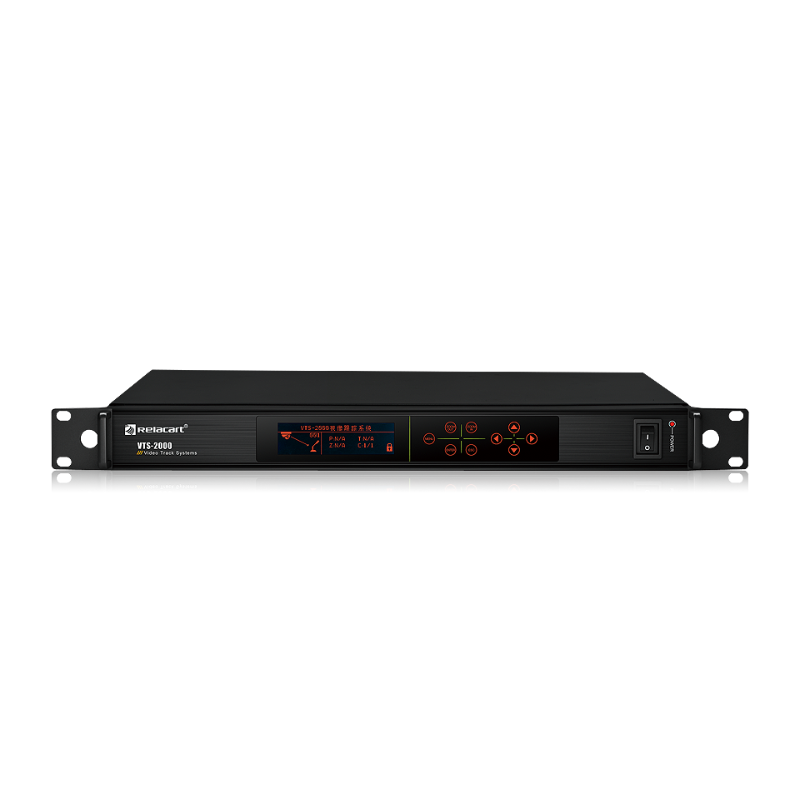

Relacart VTS-2000 Automatic Video Tracking System
Key Features:
- Camera Tracking Settings
- Camera Control
- Highest Resolution
- Video Input and Video Output Ports
Description
Description
VTS-2000 Video tracking system can be used with any one Relacart video conference system to achieve video tracking function. When the microphone unit is on, the camera will automatically track the location of the speakers unit. Connect the video device can display the image. Unique freeze function, can achieve the camera auto tracking feature perfectly.
- Power Supply：AC 100-240V 50/60Hz
- Frequency Response：143Mb/s – 2.97Gb/s
- Input Return Loss：21dB@5MHz-3GHz
Features
Functional Features:
| Camera Tracking Settings | There is no need to add any additional equipment, and the camera can be directly tracked through the central control host menu. |
|---|---|
| Camera Control | Up to 4 cameras can be controlled simultaneously. |
| Highest Resolution | High definition SDI can support the highest resolution 1080p@60Hz |
| Video Input and Video Output Ports | It has 4 video inputs and 1 video output port, supports standard definition and high-definition SDI camera input and output, and high-definition SDI supports HDcctv1.0, HD-SDI (ST292), 3G-SDI (ST424), SD-SDI (259) and other standards. |
Specifications
| Chassis specifications | EIA Standard 1U |
|---|---|
| Power Supply | AC 100-240V 50/60Hz |
| Signal Type |
|
| Video Input | 800mVp-p |
| Video Output | 800mVp-p |
| Compatible With The Standard | Pelco-D; Pelco-P; Visca |
| Control Protocol | RS-232; RS-422; RS-485 |
| Baud Rate | Stable |
| Date Bits | 8bits |
| Video Input/Output Impedance | 75 ohm |
| Input and Output Ports | BNC |
| Dimensions (mm) | 410 (W)× 43 (H) × 206 (D) |
| Weight | About 2.3kg |
