Relacart RC-809HD Conference Camera
Description
Description

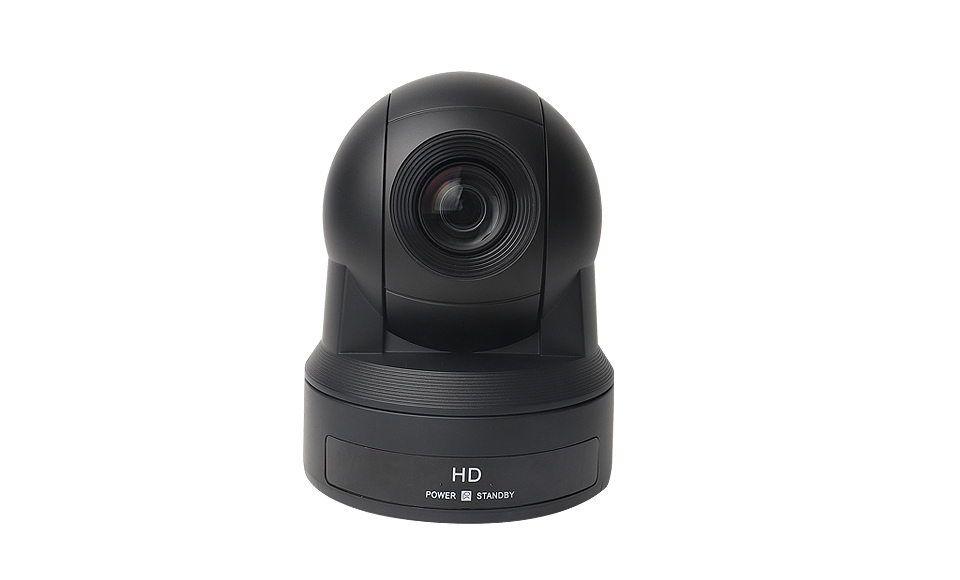

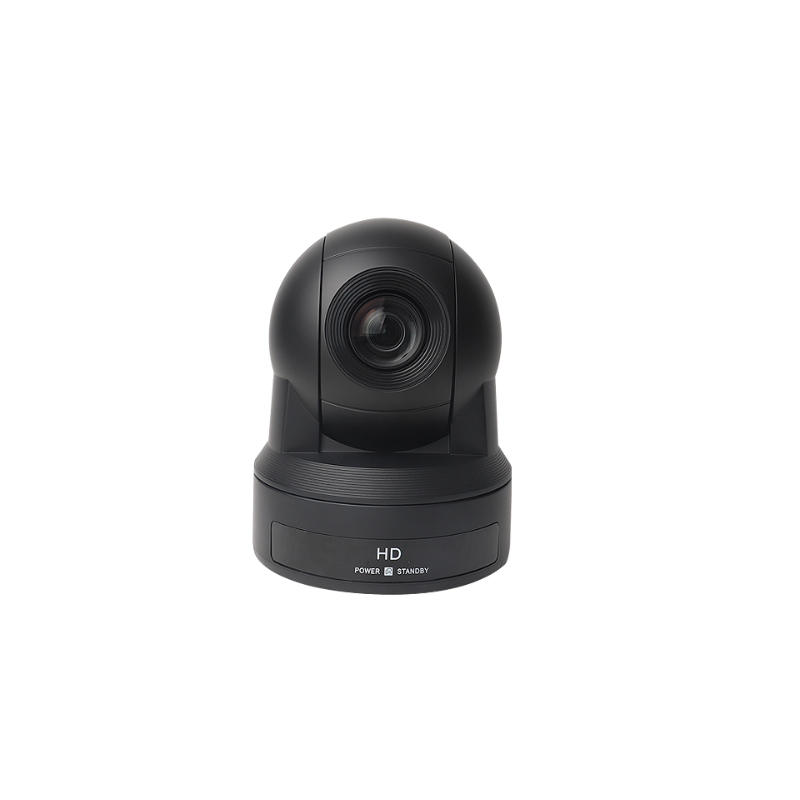

RC-809HD is a high-definition conference camera that supports USB 2.0 plug and play driveless access and network transmission.
- 3.5 megapixel
- 1/2.8 inch STARVIS CMOS sensor
- Full HD HD multi-format output (HDMI/3G SDI/RJ45/USB2.0)
Features
Specifications
| Mage Sensor | 1/2.8 inch STARVIS CMOS |
|---|---|
| Effective Pixel | 3.5 million pixels |
| Signal System HD | 1080p60/501080p30/251080i60/50720p60/50 |
| Signal System | 10PAL/NTSC |
| Lens | 20x optical zoom f=4.7mm (wide angle end)~94.0mm (far end) |
| Horizontal Angle Of View | 58.7 ° (wide angle end)~3.2 ° (far end) |
| Aggregation Mode | Automatic/manual |
| Minimum Lighting | 0.1Lux |
| Shutter Speed Gain | 1/1 ～ 1/10000S |
| White Balance | Automatic/manual/indoor/outdoor |
| Image Effect | Color/black and white/electronic flip |
| S/N Ratio | Above 50dB |
| Horizontal Sway | 355 ° (maximum speed 80 °/s) |
| Pitch and Sway | – 30 ° to 90 ° (maximum speed 60 °/s) |
| Preset Position | 9 remote controls and up to 200 keyboards |

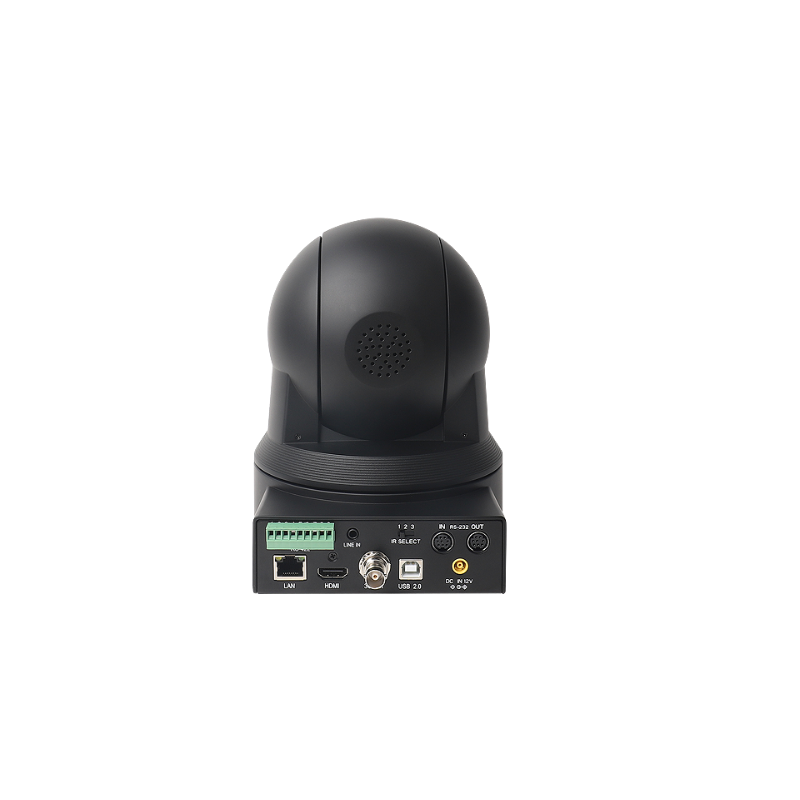

| Video Output HD | HDMI, 3G-SDI, USB 2.0, RJ-45 |
| Audio Input | 3.5mm LINE-IN |
| Power Requirement | 12V DC (10.8~13.0V DC) |
| Operating Temperature | 0 ℃~40 ℃ |
| Storage Temperature | – 20 ℃~60 ℃ |
| Power Consumption | Maximum 12W (at DC 12V) |
|---|---|
| Size | (L) 170 × (W) 151 × (H) 190mm |
| Weight | 1310g |
| Product Color | Black |
| Control Protocol | SONY VISCA、PELCO P/D |
| Control Mode | RS-232C, RS-422/485, USB control |
