Description

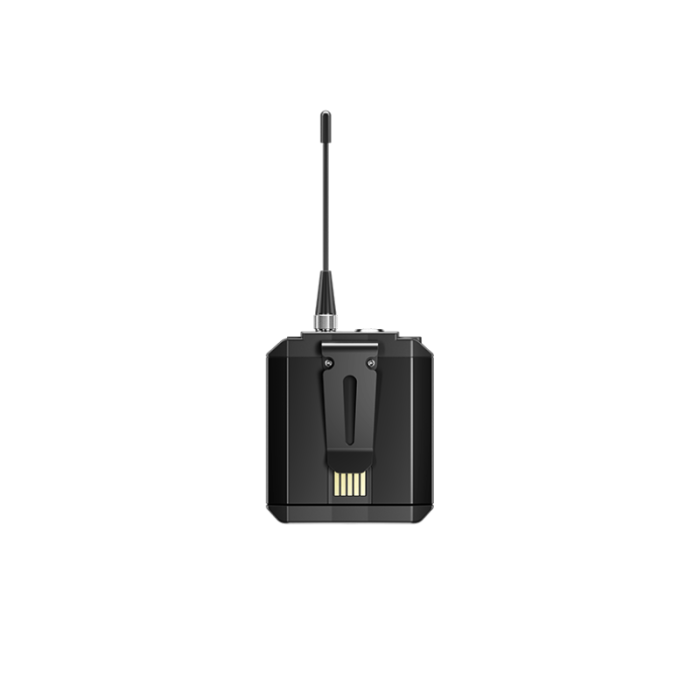

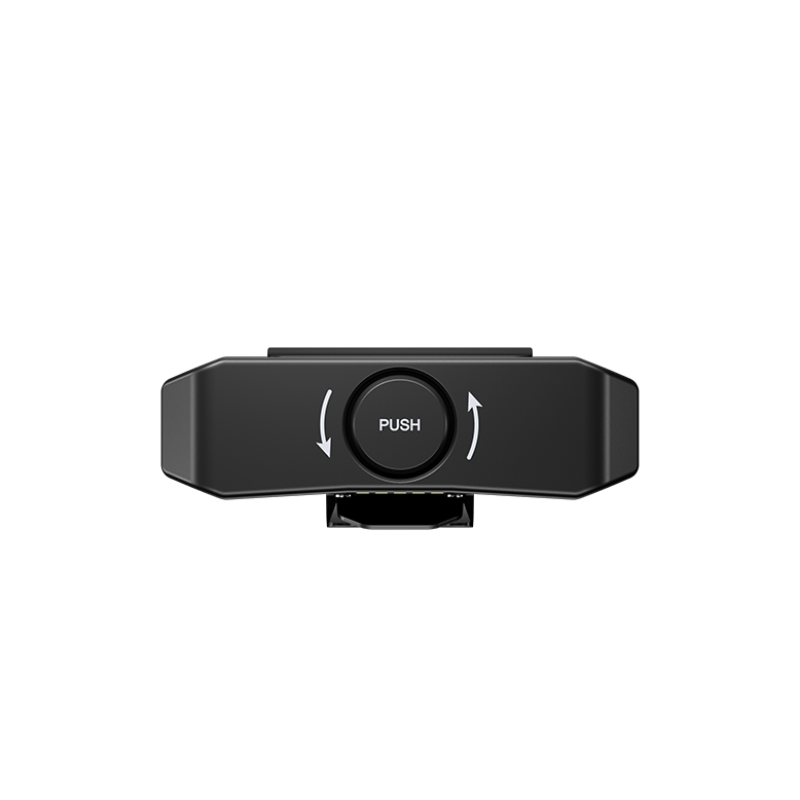

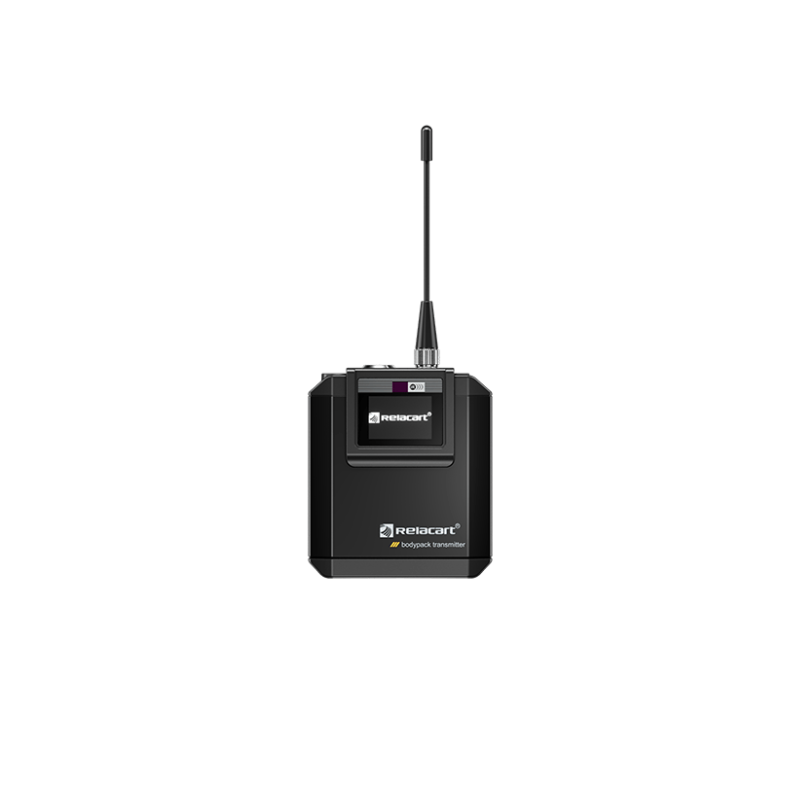

It’s a mini wearable bodypack transmitter with a compact appearance, light weight and durability. Equipped with a 4-pin mini XLR input port, can connect an external microphone. Powered by one pc of AA battery or NiMH battery. It can be put in the dual-bay charger for charging when adopt NiMH battery. It is suitable for speeches, meetings, education, performances and other occasions.
Specifications
| Carrier Frequency Range | 521.25MHz~936.85MHz |
|---|---|
| Oscillation | PLL synthesized |
| Harmonic Radiation | <50dBm |
| Max. Deviation | ±45KHz |
| Input Connector | 4-pin mini XLR connector |
| RF Output Power | 10mW/40mW |
| Battery | AA×1 |
| Current Consumption | 205mA(Typical) |
| Battery Current/ Life | Approximately 4 hours(alkaline) |
| Dimension(mm) | 65(W)×21.3(D)×75.5(H) |
