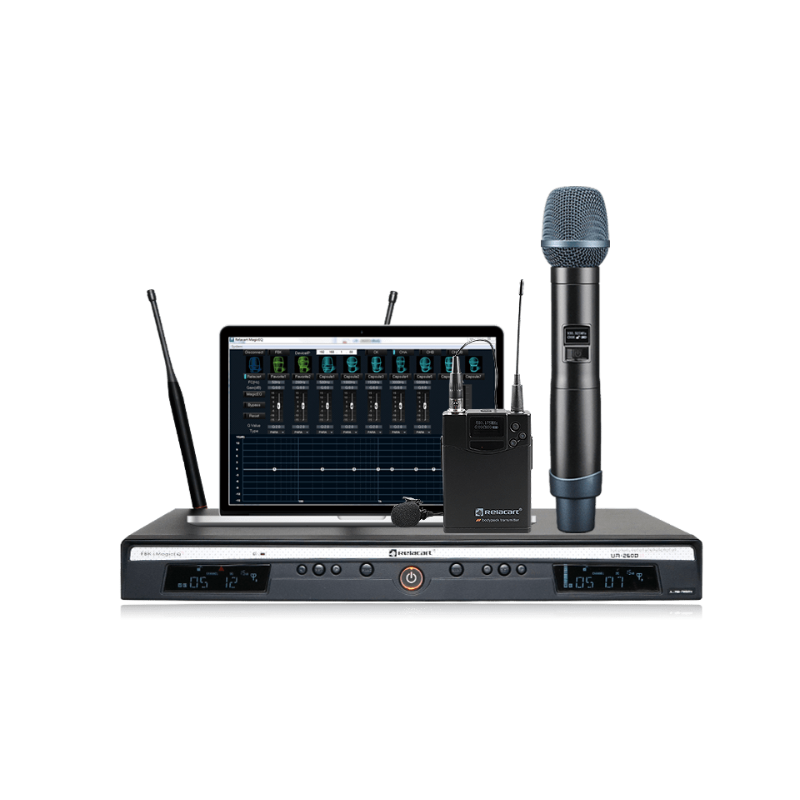

RELACART UR-260D Dual-Channel Wireless Microphone
Key Features:
- Super Wide Frequency
- Phase Lock Loop Frequency Control
- Auto Frequency Selection
- IR Infrared Counter-Frequency
- Magic EQ
- DSP Audio Digital Extension
Description
UR-260D Series of condensed the technology essence that Relacart accumulated over a long period. With advanced technology, sophisticated design, stable performance, with beautiful appearance, convenient operation and attractive price, with superior professional quality to win the market competition. This series is suitable for the nightclub of high requirements, multi-functional hall, hotel, conference room and small to medium performance.
Features
Functional Features:
| Super Wide Frequency | Super wide frequency range UHF554MHz~936 MHz，Auto Frequency Selection，CPU Intelligent Antenna Diversity. |
|---|---|
| Phase Lock Loop Frequency Control | PLL design ensures transmission reliability, “IP address” and “Noise Lock” squelch effectively blocks stray RF. |
| Auto Frequency Selection | Press the “AFS”button 3S and the receiver will auto-scan and lock on to an open, interference-free frequency. |
| IR Infrared Counter-Frequency | Press [IR] button to upload automatically the receiver frequency to the transmitter. |
| Magic EQ | Connection software, built-in digital balance processor, 9 voice modes are available, including 7 fixed modes, covering various international brand voice effects, and 2 customized modes, which can be adjusted freely through special operating software to achieve the desired effect. |
| DSP Audio Digital Extension | Domestic pioneered DSP “feedback killer” FBK function, can effectively prevent the howling automatically, for the users to achieve perfect deduce. |

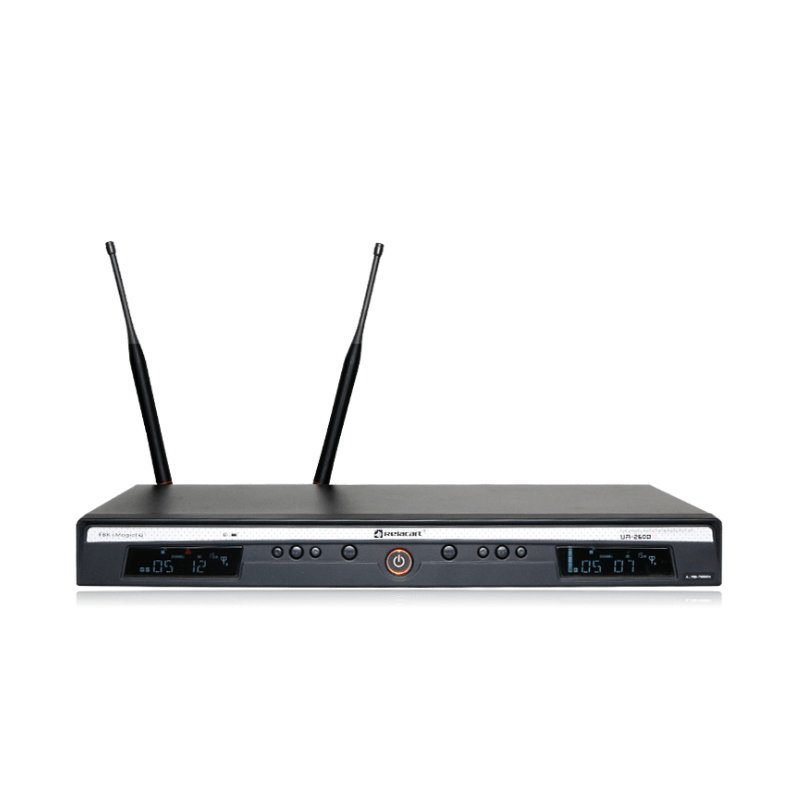

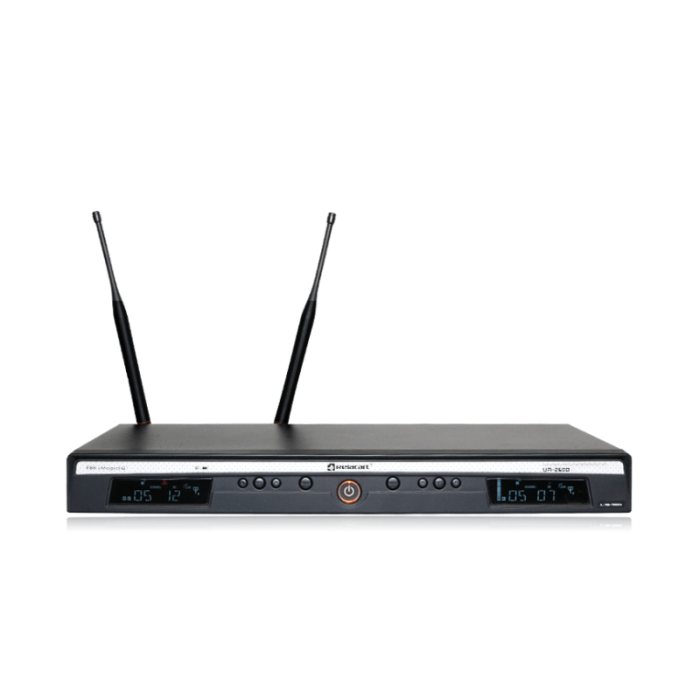

UR-260D Dual Channel Wireless Receiver
- Carrier Frequency Range: 521.25MHz-936.85MHz
- Operating Range: 80M typical
- Max. Deviation Range: ±45KHz
UR-260D Series of condensed the technology essence that Relacart accumulated over a long period. With advanced technology, sophisticated design, stable performance, with beautiful appearance, convenient operation and attractive price, with superior professional quality to win the market competition. This series is suitable for the nightclub of high requirements, multi-functional hall, hotel, conference room and small to medium performance.

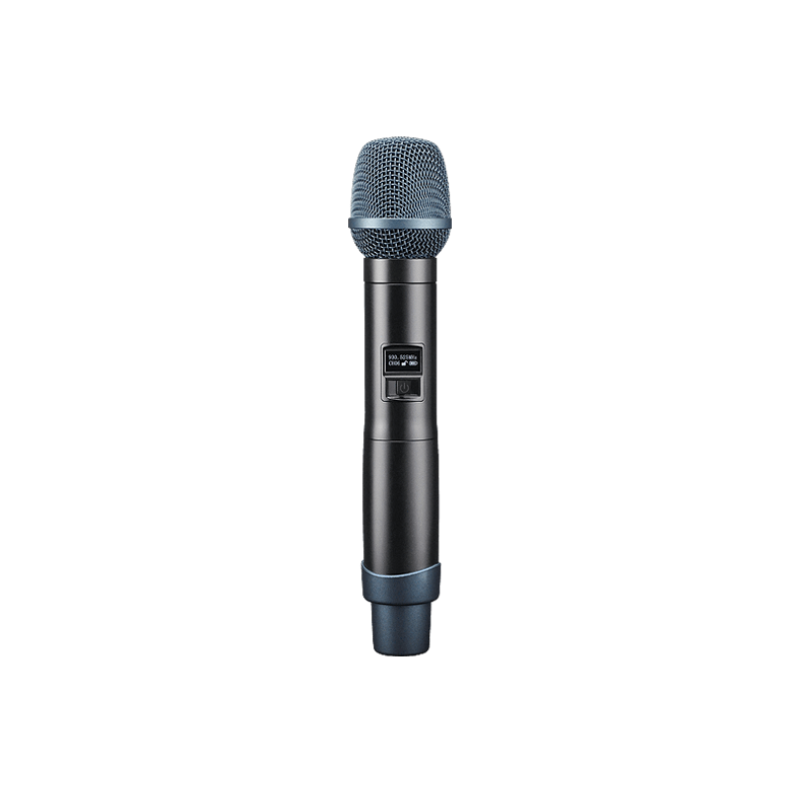

UH-222 Wireless Handheld Microphone
- Carrier Frequency Range：521.25MHz-936.85MHz
- Harmonic Radiation：<45dBm
- Max. Deviation Range：±45KHz
UH-222 is a handheld microphone with ergonomic design,interchangeable microphone heads and long battery life.

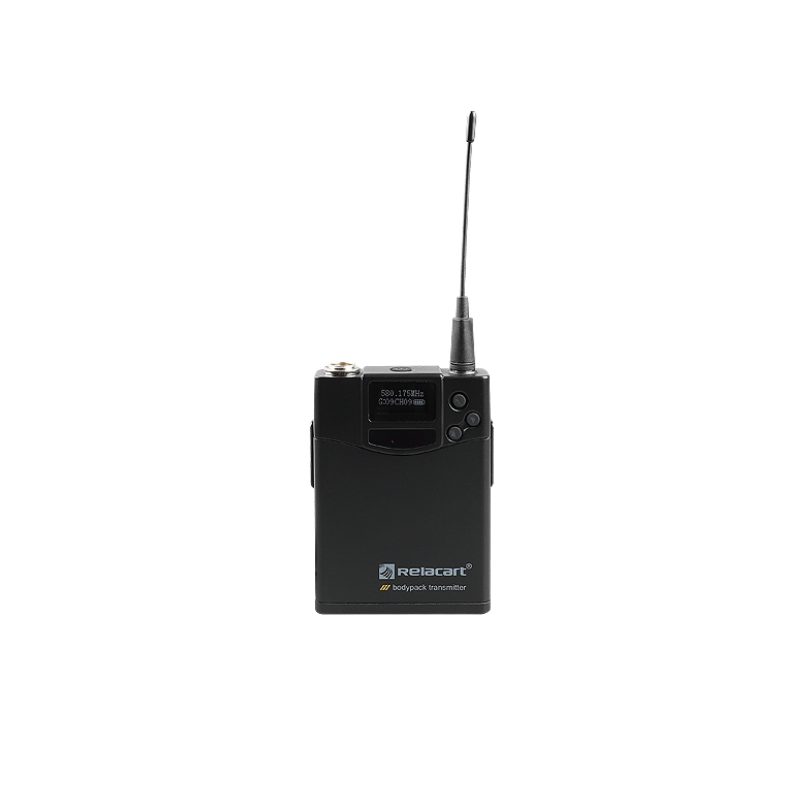

UT-222 Wireless Bodypack Transmitter
- Carrier Frequency Range：521.25MHz-936.85MHz
- Harmonic Radiation：<45dBm
- Max. Deviation Range：±45KHz
UT-222 is a mini bodypack transmitter, made of metal and durable, which can be used with Relacart LM series lavalier microphone and HM series headset microphone.
Specifications
UR-260D Dual Channel Wireless Receiver
| Main Frame Size | EIA STANDARD 1U |
|---|---|
| Channels | Dual Channel |
| Frequency Stability | ±0.005% (0~50°C) |
| Carrier Frequency Range | 521.25MHz-936.85MHz |
| Sampling Rate | 96kHz 24-Bit |
| Default audio equalizer | simulate of various cartridge sound |
| Modulation Mode | FM stereo modulation |
| Operating Range | 80M typical ( in open space) |
| Oscillation | PLL synthesized |
| Sensitivity | 5dBμV, S/N>60dB at 25 deviation |
| Max. Deviation Range | ±45KHz |
| S/N | ＞100dB |
| T.H.D. | ＜0.5% @ 1KHz |
| Frequency response | 45Hz-18KHz ±1dB |
| Power Supply | DC 12~18V/1A |
| Weight | 2.0kg |
| Dimension (mm) | 410mm(W)x43mm(H)x206mm(D) |
| Output Connector | LR balanced & 6.3φ phone jack unbalanced |
UH-222 Wireless Handheld Microphone
| Carrier Frequency Range | 521.25MHz-936.85MHz |
|---|---|
| Oscillation | PLL Synthesized |
| Harmonic Radiation | <45dBm |
| Bandwidth | 134MHz(It depends on the region) |
| Max. Deviation Range | ±45KHz |
| Microphone Element | Dynamic/Condenser(removable) |
| RF Output Power | 10MW/40MW |
| Battery | AA x2 |
| Current Consumption | 110mA(Typical) |
| Battery Life | Approximately 11 hours |
| Microphone Lengths(mm) | 52(Φ)x255(L) |
| Weight | Approximately 235g (w/o battery) |
UT-222 Wireless Bodypack Transmitter
| Carrier Frequency Range | 521.25MHz-936.85MHz |
|---|---|
| Oscillation | PLL Synthesized |
| Harmonic Radiation | <45dBm |
| Bandwidth | 134MHz(It depends on the region) |
| Max. Deviation Range | ±45KHz |
| Input Connector | 4-pin mini-XLR connector |
| RF Output Power | 10MW/40MW |
| Battery | AA x2 |
| Current Consumption | 110mA(Typical) |
| Battery Life | Approximately 11 hours |
| Microphone Lengths(mm) | 84(H) X66(W) X 23(D) |
| Weight | 155g (w/o battery) |
