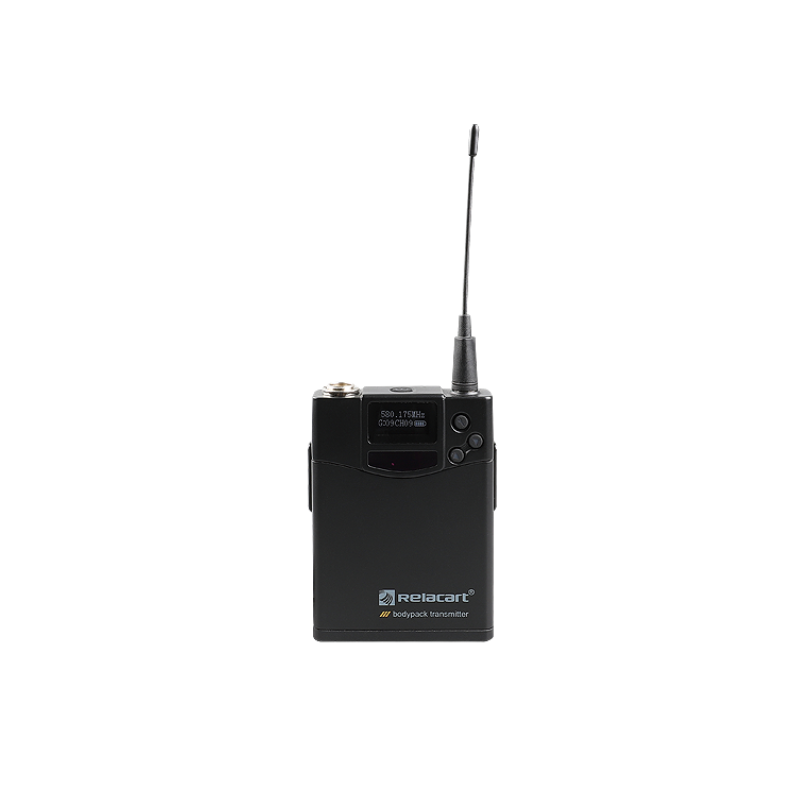

Relacart UT-222 Wireless Bodypack Transmitter
Description
Description
UT-222 is a mini bodypack transmitter, made of metal and durable, which can be used with Relacart LM series lavalier microphone and HM series headset microphone.- Carrier Frequency Range：521.25MHz-936.85MHz
- Max. Deviation Range：±45KHz
Features
Specifications
| Carrier Frequency Range | 521.25MHz-936.85MHz |
|---|---|
| Oscillation | PLL Synthesized |
| Harmonic Radiation | <45dBm |
| Bandwidth | 134MHz(It depends on the region) |
| Max. Deviation Range | ±45KHz |
| Input Connector | 4-pin mini-XLR connector |
| RF Output Power | 10MW/40MW |
| Battery | AA x2 |
| Current Consumption | 110mA(Typical) |
| Battery Current/ Life | Approximately 11 hours |
| Dimension | 84(H) X66(W) X 23(D) |
| Weight | 155g (w/o battery) |
