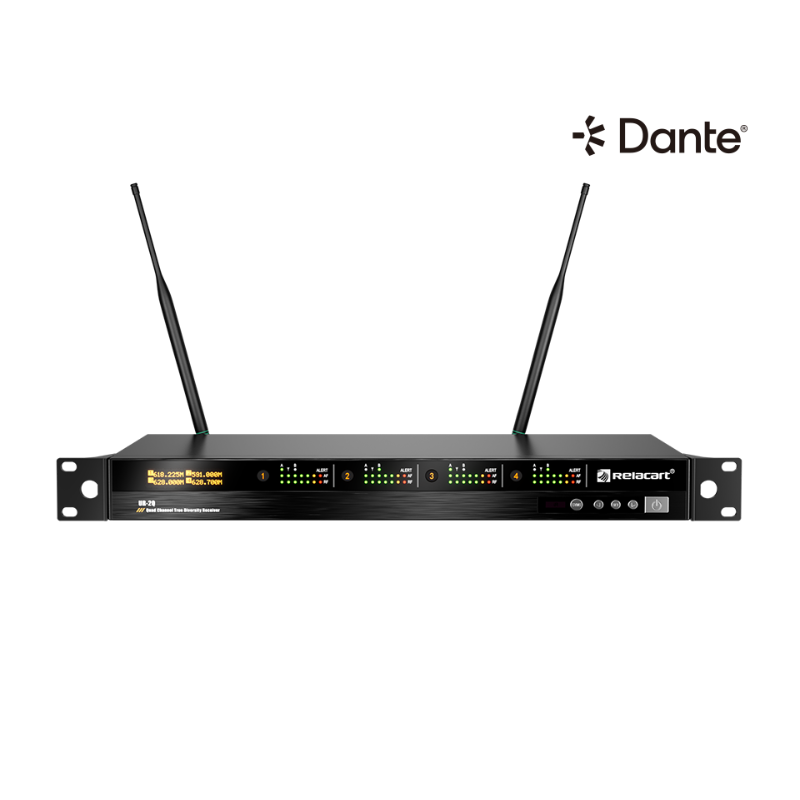

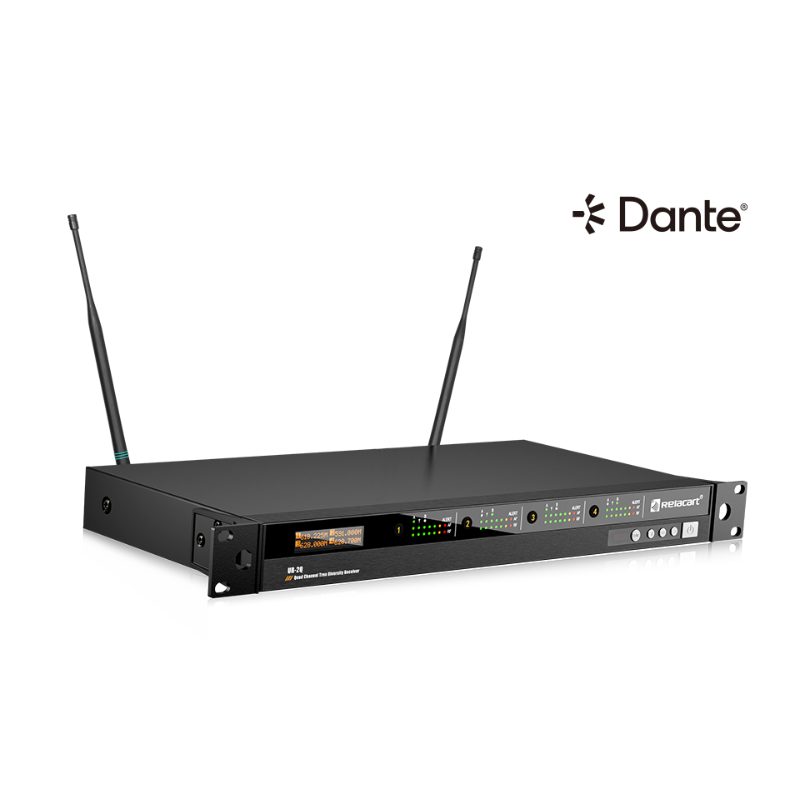

Relacart UR-2Q Quad-channel wireless receiver
Description
Description
UR-2Q series wireless microphone cohesive Relacart long-term accumulation of technical essence, with advanced four-channel electrical tuning technology, 130MHz switching bandwidth (depending on the region); has a beautiful industrial design appearance; with independent research and development of DSP audio expansion algorithm Support Dante protocol output, Magic EQ function can be adjusted freely; this series is suitable for high-demand nightclubs, multi-purpose demonstration halls, hotels, conferences and small and medium-sized performances.
Features
Specifications
| Main Frame Size | EIA Standard Rack 1U |
|---|---|
| Frequency Stability | ±0.005% |
| External Antenna Interface | Dual BNC support +12V/150mA output |

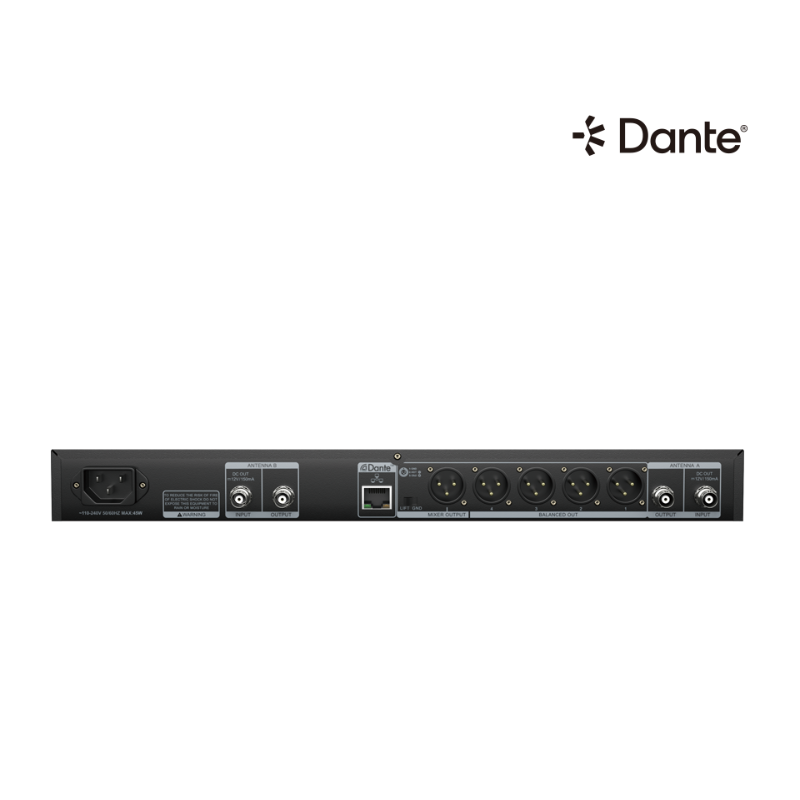

| External Audio Interface | Mixed balanced audio output, BALANCED single channel balanced audio output |
| Ethernet Port | Support Dante communication protocol |
| Carrier Frequency Range | 521.25MHz-936.85MHz |
| Oscillation | PLL synthesized |
| Sensitivity | 5dBu , S/N>60dB at 25KHz deviation |
| Bandwidth | 130MHz |
| Max. Deviation Range | ±45KHz |
| Audio Sampling Rate | 96KHz 24-bit |
| Audio Expansion | Relacart DSP Digital Audio Extension Algorithm |
| S/N | >105dB |
| T.H.D | <0.7%@1KHz |
| Frequency response | 80Hz～18KHz ±3dB |
| Operation Range with line of sight approx | 80 meters |
| Power Supply | AC input, ICE connector, 100-240 VAC |
| Dimensions (mm) | 480（W）x350（D）x43（H） |
