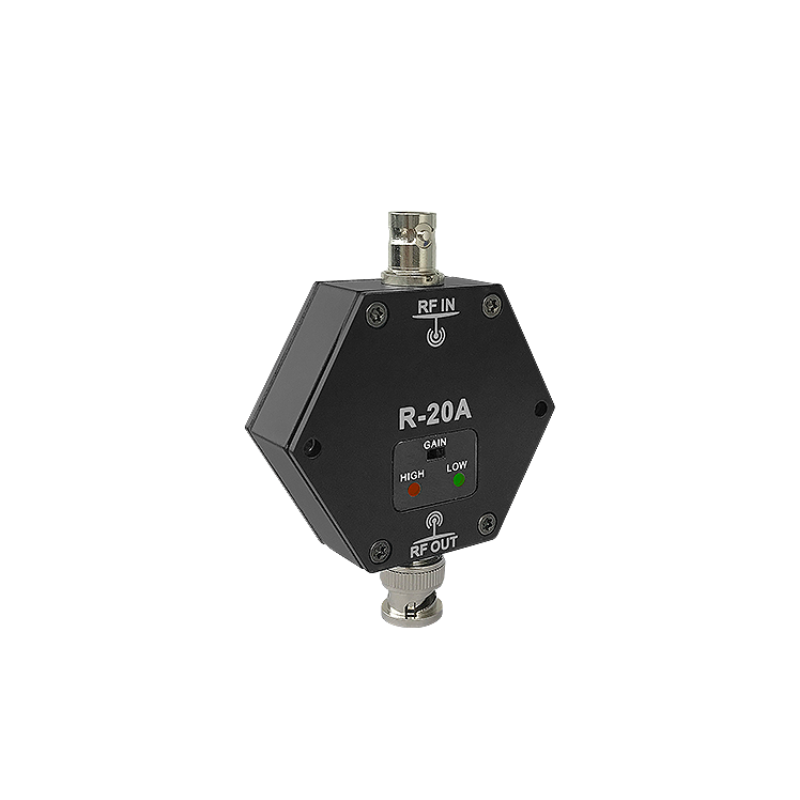

Relacart R-20A Antenna Booster
Description
Description
R-20A provides increased gain for receiving antennas, maintains an effective and reliable signals and reduces chance for signal dropouts under difficult RF conditions. Compact and lightweight, R-20A is integrated into a small package and can be concatenated in the middle of the connecting cable.- Frequency range: 450MHz-950MHz
- VSWR: input/output≦3:1
- Noise: 3dB (typ.)
Features
Specifications
| Frequency Range | 450MHz-950 MHz |
|---|---|
| Gain Adjustable | 5dB and 15dB |
| VSWR | Input/Output≦3:1 |
| Connection Terminal | The input interface is BNC female, the output interface is BNC male |
| Noise | 3dB (typ.) |
| Power Supply | DC8V, 80mA |
| Working Temperature | -20°～50°C |
| Dimensions | 87mm(L)x65mm(W)x20mm(H) |
| Net Weight | About 85g |
| Package | Black Anodized Aluminum |
