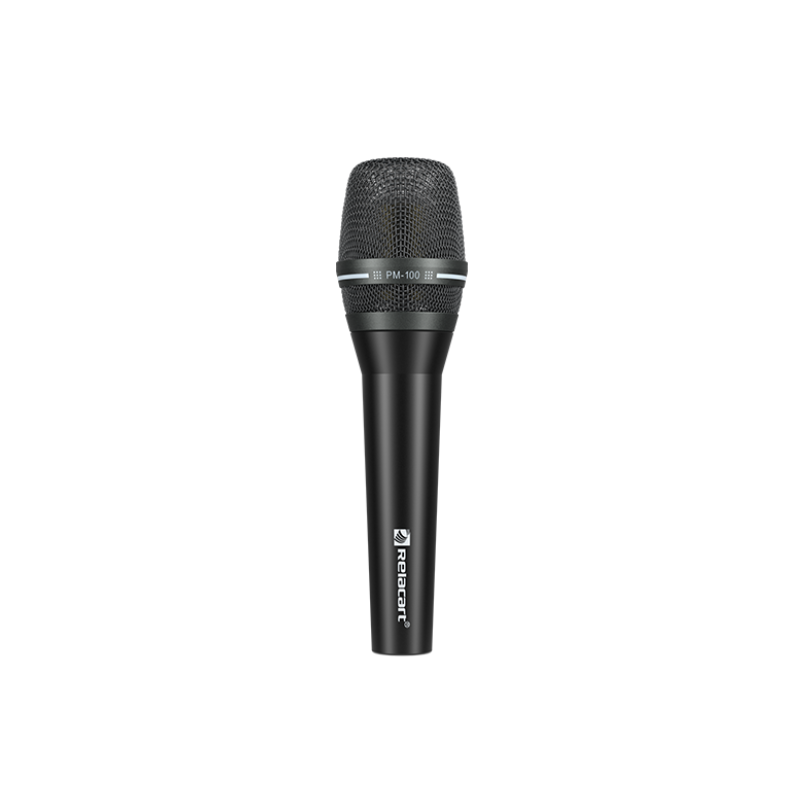

Relacart PM-100 Professional Condenser Microphone
Key Features:
- Cardioid Pick-up Pattern
- High-traffic Waves
- Phantom Power Supply
- Metal production
- Air Filter Function
- Sound Insulation
Description
Description
PM-100 is suitable for professional sound engineering, needs to provide 11-52V phantom power supply, can be used on the sound table phantom power supply, can also be used P-48V single channel phantom power supply for independent power supply. Based on human voice rate characteristics, integrated application telephone technology design, providing clear reproduction of original sound, specially suitable for professional medium, small stage production.
Features
Functional Features:
| Cardioid Pick-up Pattern |
The cordioid directional pickup can effectively enhance the main sound source and suppress background noise.
|
|---|---|
| High-traffic Waves | High strength anti-slip metal mesh can effectively protect the microphone from damage. |
| Phantom Power Supply |
PM-100 is used in professional radio work. It requires 11V to 52V phantom power supply. It can be powered by phantom power on the mixer or by Relacart P-48V1S single-channel phantom power supply.
|
| Metal production | The microphone tube body is made of metal material, with low noise and strong durability. |
| Air Filter Function | The microphone tube body is made of metal material, with low noise and strong durability. |
| Sound Insulation | Multi-layer magnetic protection network structure, under high-pitched sound conditions, enhanced sound isolation protection. |
Specifications
| Capsule Type | Backplane polarized electrostatic capacitance type |
|---|---|
| Polar Pattern | Cordioid Unidirectional |

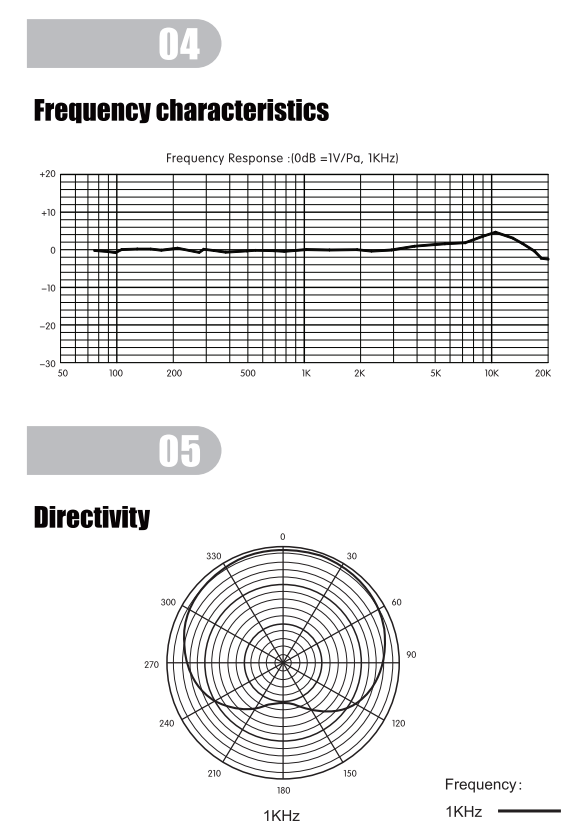

| Frequency Respond | 50Hz-20khz |
| Sensitivity | -44 dB (1V/Pa) |
| Output Impedance | 280Ω |
| Max windstand sound pressure | 120dB，1KHz at 1%T.H.D. |
| Dynamic Range(Typical) | 115dB，1KHz at max sound pressure |
| S/N | >72dB(A)，1KHz at 1Pa |
| Phantom Power | 11-52VDC |
| Current Consumption | 4mA(Typical) |
| Output Connector | Built-in 3-pin XLR-M |
| Size(mm) | Φ51×190 |
| Weight(g) | Approximately 365g |
