Relacart FM-200 Flush-mount Microphone Socket
Description
Description

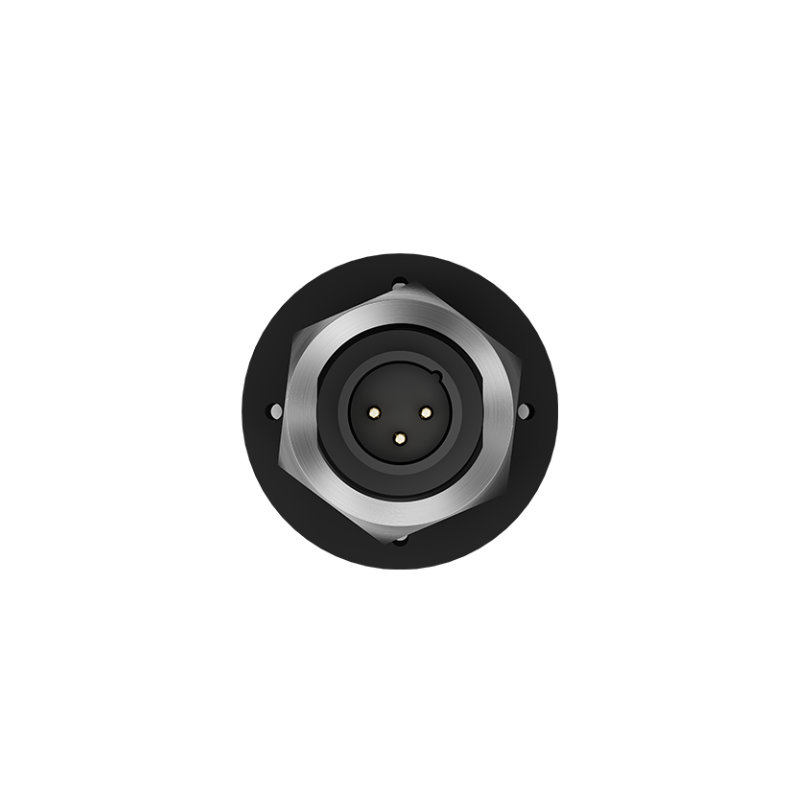

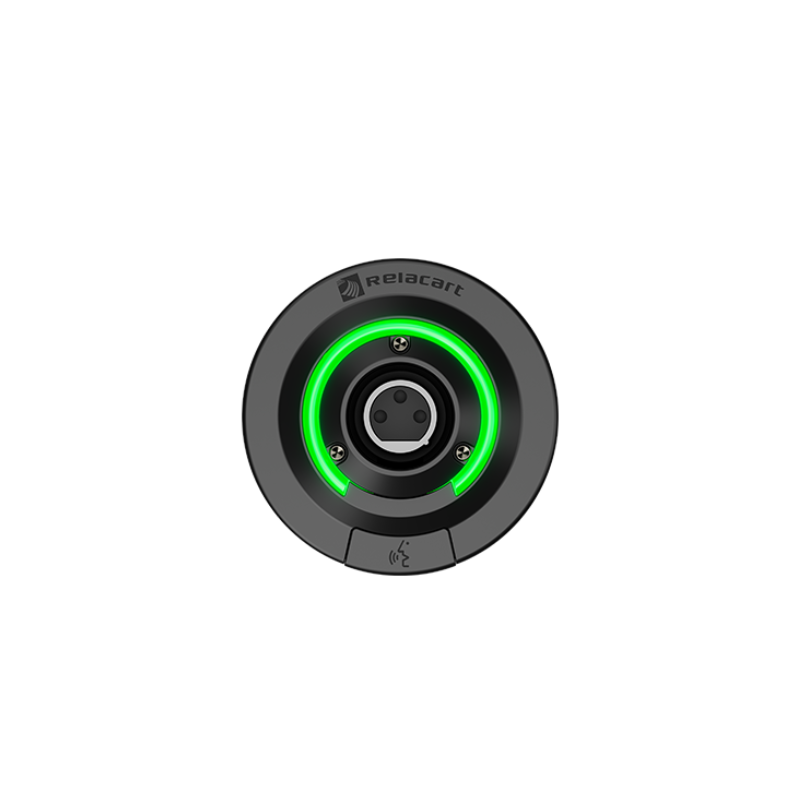

FM-200 is a recessed, conference microphone socket designed for desktop installation. It has a touch switch control and is also equipped with a ring-shaped LED status indicator, which displays green when the microphone is in the radio state and red when it is muted. The input end is a 3-pin XLR female socket, and the output end is a 3-pin XLR male header.
- Frequency Response: 50-20,000HZ
- Mute Attenuation: <50dB at 1kHz/Pa
- Phantom Power Supply: DC 20-52V, power consumption 4.5mA typical
Features
Specifications
| Frequency Response | 50-20,000HZ |
|---|---|
| Mute Attenuation | <50dB at 1kHz/Pa |
| LED Indicator | Radio status is green/mute status is red |
| Phantom Power Supply | DC 20-52V, power consumption 4.5mA typical |
| Switch | Touch mode, mute state by default when power on |
| Input Interface | 3-pin XLR female |
| Output Interface | 3-pin XLR male |
| Dimensions | 59.2x59x156.5mm |
| Weight | 310g |
| Random Accessories | Anti-vibration rubber*1, metal fixing ring*1 |
