Relacart DAM-208D
Key Features:
- Automatic Sound Cutting Adjustment
- Flexible Expansion
- Digital Processing
- Intelligent Management
Description
Description

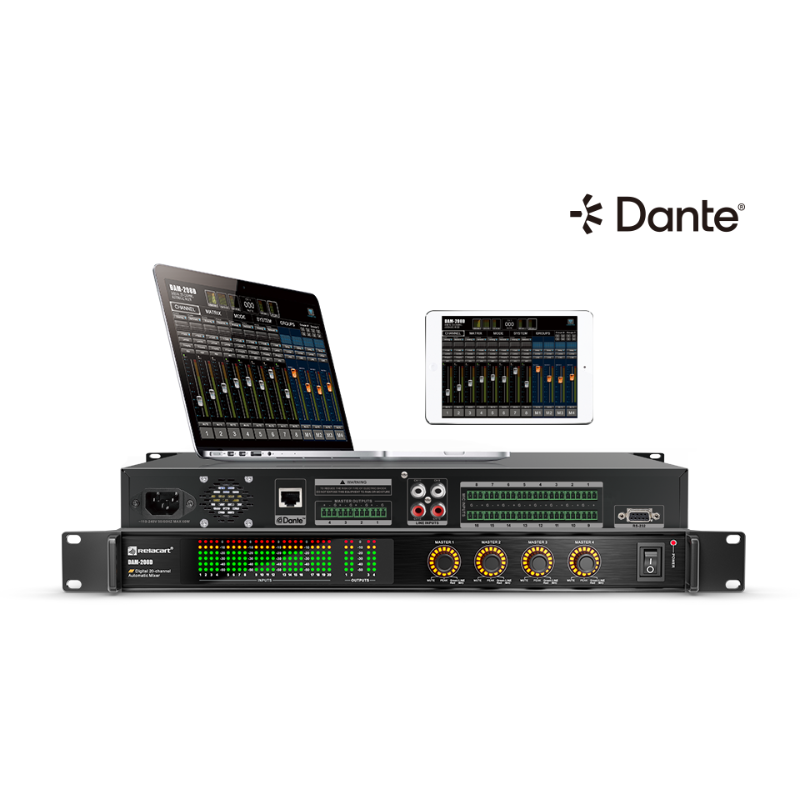

DAM-208D is a 20-input, 8-output, intelligent digital mixer that supports Dante protocol. Digital intelligent conference processor is the perfect combination of digital audio and digital control technology to high-performance DSP as the core, with dedicated control software, each channel can be set and adjusted in detail, comes with 20X8 matrix, support multiple levels. All intelligent conference management, can easily form a set of powerful, easy to operate digital intelligent conference system.
- S/N (22 Hz – 22 kHz, RMS, A-Filter)：118dB
- Maximum Gain：Mic: +65db Line: +20db
- Dynamic Range (20 Hz to 20 kHZ, A-weighed, typical)：Analog-to-Analog : 100dB
Features
Functional Features:
| Automatic Sound Cutting Adjustment | The automatic sound valve adjustment can calculate the appropriate valve level using the powerful computing system of DSP digital algorithm according to the on-site environmental noise, and is suitable for any harsh conference environment. Finally, keep the time adjustable to ensure that your meeting is more smooth; |
|---|---|
| Flexible Expansion | The built-in DANTE digital audio card can connect the mixer to any Dante device; Without software control, multiple DMC-500 mixer controllers can be connected to adjust the commonly used channel volume. |
| Digital Processing | Full digital signal processing, built-in high and low pass filter, limiter, matrix, etc. Basic operation: after connecting the computer and cooperating with the special control software, each channel can be set and adjusted in detail; |

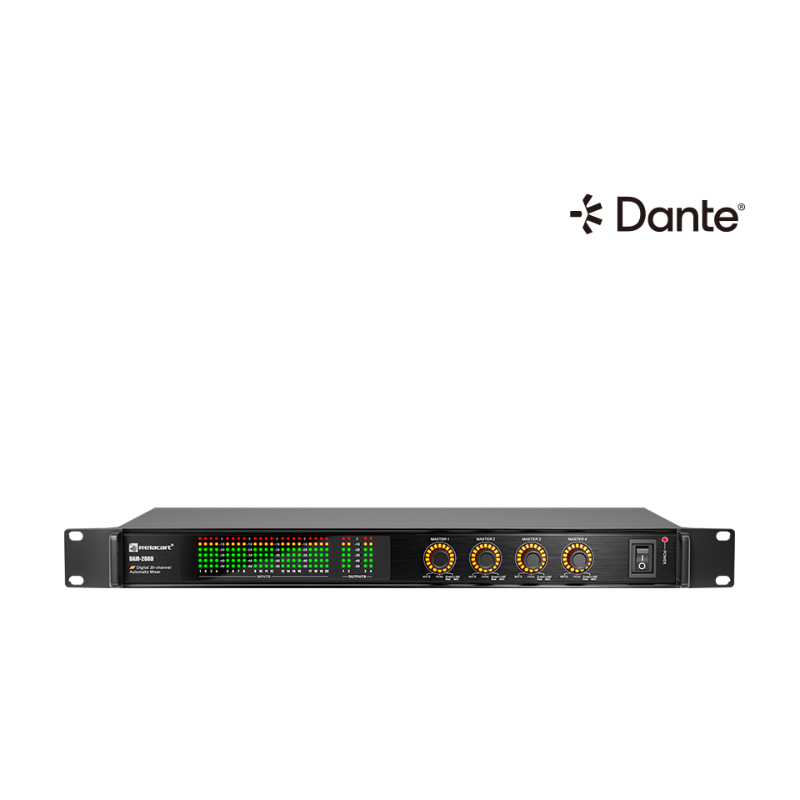

| Intelligent Management | The host adopts TCP/IP connection mode, which can connect special software to realize remote control, remote diagnosis and upgrading of the conference system; The encoder with scale indication controls the output volume of four MASTER channels, and displays the output volume scale, mute indication, distortion indication, and output LINE/MIC indication respectively; |
Specifications
| Dynamic Range (20 Hz to 20 kHZ, A-weighed, typical) | Analog-to-Analog : 100dB |
|---|---|
| Harmonic Distortion 1 kHz, +4 dBu out, mix output (MASTER) at +0 dB | <0.05% |
| S/N (22 Hz – 22 kHz, RMS, A-Filter) | 118dB |
| Common Mode Rejection Ratio 150Ω balanced source, at 1kHz | >60 dB |
| Number Of Input Channels | MIC * 8、 Line * 4、 Dante * 4 |
| Maximum Input Level (Gain Max) | Mic: +6 dBV, Line: +25dBV |
| Maximum Gain | Mic: +65db, Line: +20db |
| Number Of Output Channels | Analog x4, Dante x 4 |
| Maximum Output Level | Line(+0)：+21dbu MIC(-20)：+1dbu |
| Dante Interface | 4×4 |
| AD/DA Converter | 24bit, 48KHz |
| Internal Processing | 40-bit, floating point DSP |
| DSP Functions | Input, output equalization, limiter, FBK, matrix control, threshold control, high and low pass filter |
| FRQ Range | 20hz-20khz |
| Phantom Power | +48V/12mA |
| Network Interface | 10/100 Mbps Ethernet, Dante digital audio |
| Main Frame Size | EIA standard 1U |
| Dimensions | 410mm x 43mm x 206mm |
| Weight | Approximately 2.7 Kg |
| Operating Temperature Range | 0 ～ 40℃ |
